Coxreels 1195-3228-H Hose Reel 2 Inch Id 125 Ft

Product Description

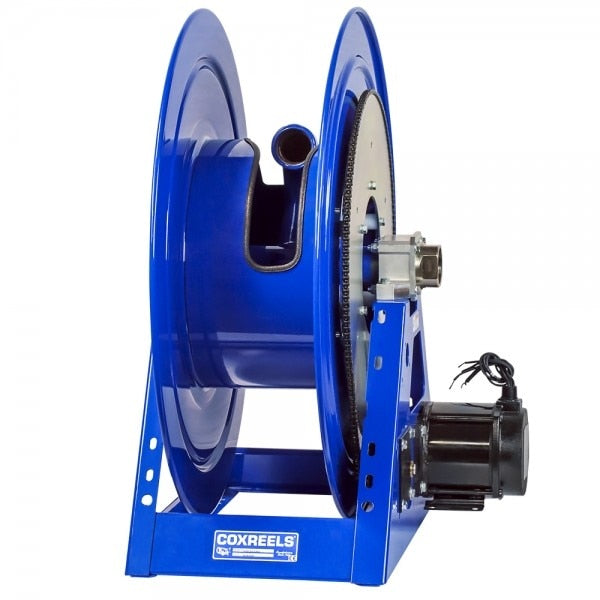

The COXREELS 1195-3228-H is a heavy-duty industrial hose reel from the 1195 Series, engineered for high-volume fluid delivery through long runs of large-diameter hose. Built for demanding environments, it features a 2-inch ID hose capacity, accommodates up to 125 feet of hose, and is available in both hand crank and hydraulic motor driven configurations. The all-welded steel A-frame base and CNC robotically spun drum discs give this reel the structural integrity needed to manage heavy hose loads without performance loss. Licensed HVAC technicians, industrial maintenance crews, and fleet service professionals specify this reel for mobile and stationary high-flow applications.

The 1195-3228-H is suited for industrial, commercial, and mobile service applications where large-diameter hose must be managed efficiently and reliably. The open drum slot design and low-profile outlet riser eliminate hose crimping and promote flat, even wraps across the full hose length. Its welded steel base includes a built-in mounting pattern, simplifying installation and removal in both fixed bay and vehicle-mounted setups. The reel is appropriate for use with hydraulic lines, water, air, and other compatible media in high-demand service environments.

Key Features

• 2-inch ID hose capacity with 125-foot hose length rating for high-volume delivery applications
• Hydraulic motor drive with hand crank compatibility for flexible operation
• Exclusive low-profile outlet riser and open drum slot design prevents hose crimping and ensures a flat, smooth wrap
• CNC robotically spun and ribbed drum discs with rolled edges for strength, durability, and operator safety
• Full-flow in-line electroless nickel plated steel NPT swivel allows seal maintenance and hose changes without removing the reel from its mount
• CPC powder coat finish provides chip resistance and rust inhibition for long service life
• Permanently lubricated horizontal surface mount bearings for smooth, low-effort rotation

Compatibility

Designed as an OEM-style replacement or direct-fit unit within the COXREELS 1195 Series for large-diameter industrial hose reel applications requiring high-volume fluid delivery.

Installation Notes

Installation should be performed by a qualified technician familiar with industrial fluid handling equipment. Shut off all fluid supply and depressurize the hose before mounting or servicing the reel. The welded steel base mounting pattern accepts standard fasteners — verify substrate load capacity before securing, particularly in mobile applications. Consult applicable OSHA and local safety codes when installing hydraulic motor driven reels in commercial or mobile environments.

Technical Specifications

• Hose ID: 2 inches
• Hose OD: 2.5625 inches
• Hose Capacity: 125 feet
• Drive Type: Hydraulic motor
• Frame Construction: CNC robotically welded 12-gauge steel A-frame
• Swivel Type: In-line electroless nickel plated steel full-flow NPT swivel
• Finish: CPC powder coat
• Length: 49 inches
• Width: 32 inches
• Height: 32 inches
• Weight: 234 pounds
• UPC: 674255853904

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1195-3228-H
