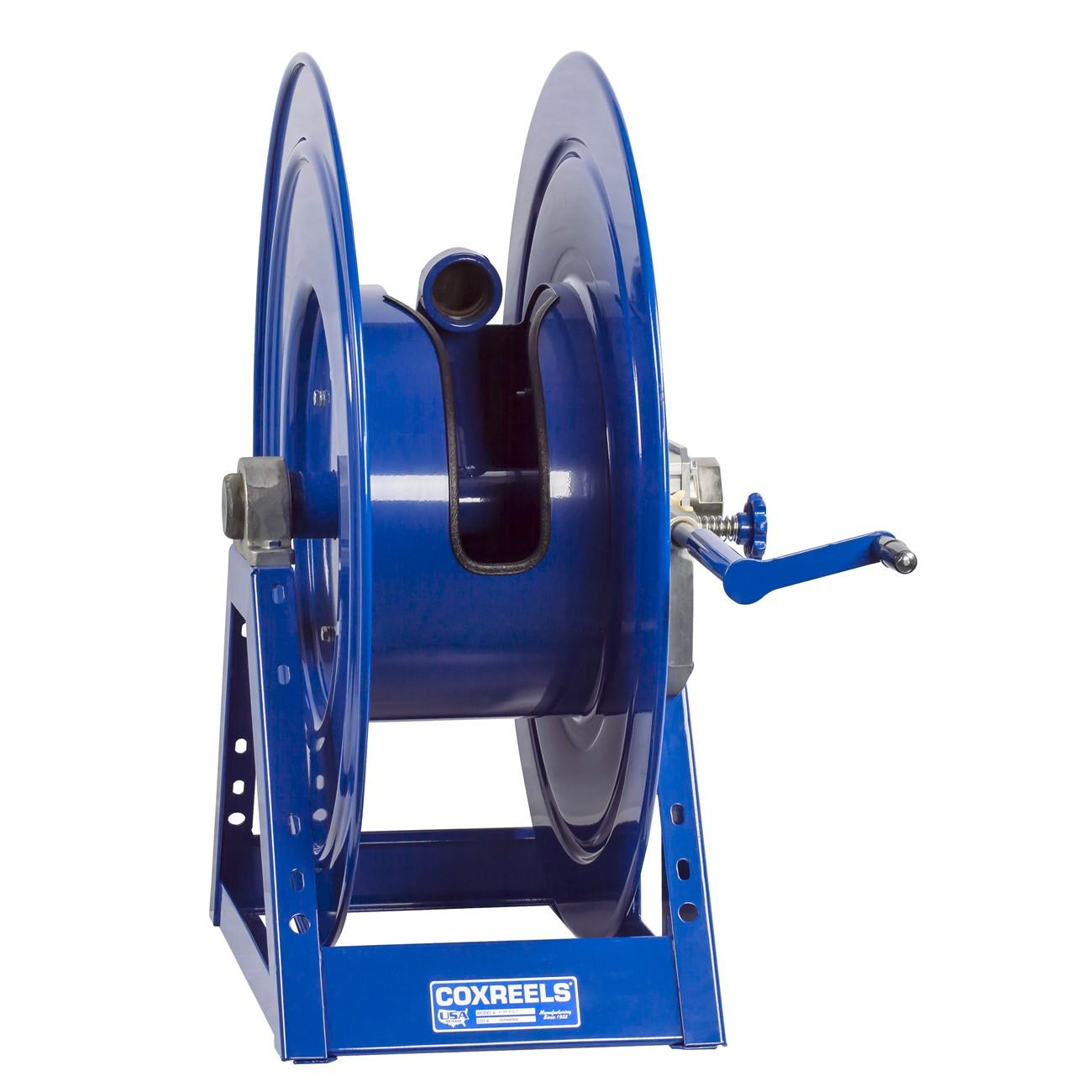

Coxreels 1195-3228-C Hose Reel 2 Inch Id 125 Ft

Product Description

The COXREELS 1195-3228-C is a heavy-duty hose reel from the 1195 Series, engineered for high-volume fluid delivery applications that demand long runs of large-diameter hose. Built with a 2-inch ID and designed to handle 125 feet of hose, it supports both hand crank and motor-driven operation. The all-welded steel A-frame base, CNC robotically spun discs, and low-profile outlet riser work together to deliver reliable, non-crimping hose wrap. At 221 pounds, this reel is built for demanding fixed or mobile installations where structural integrity and sustained performance are non-negotiable. Licensed HVAC, plumbing, and industrial service technicians are the primary installers.

The 1195-3228-C is suited for commercial and industrial environments that require the movement of large volumes of fluid through extended hose lengths. Its open drum design and low-profile outlet riser accommodate flat, smooth hose layering without kinking or crimping. The front bevel-geared crank provides mechanical retraction assist, making it practical for mobile service rigs, fixed bay installations, and heavy-duty plant or facility maintenance applications where standard-capacity reels fall short.

Key Features

• In-line electroless nickel-plated steel full-flow NPT swivel allows seal maintenance and hose replacement without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for enhanced strength, hose protection, and operator safety
• Exclusive low-profile outlet riser and open drum slot design delivers non-crimping, flat smooth hose wrap
• One-piece all-welded 12-gauge steel A-frame base with integrated mounting pattern for secure installation and easy removal
• Permanently lubricated horizontal surface mount bearings for smooth, low-effort rotation
• CPC powder coat finish resists chips and rust for long service life in harsh environments
• Front bevel-geared crank provides mechanical advantage for easy manual retraction

Compatibility

Designed as an OEM-style replacement or direct-fit unit within the COXREELS 1195 Series, suitable for applications requiring 2-inch ID hose handling at extended lengths up to 125 feet.

Installation Notes

Installation should be performed by a qualified technician familiar with industrial hose reel mounting requirements. Power down or shut off all fluid supply lines before connecting or servicing the reel. Ensure the mounting surface and fastener pattern can support the reel weight of 221 pounds plus the added load of a full 125-foot hose. Follow applicable facility safety and plumbing codes when making fluid connections to the swivel inlet.

Technical Specifications

• Hose ID: 2 inches
• Hose Capacity: 125 feet
• Frame Construction: 12-gauge all-welded CNC steel A-frame
• Swivel Material: Electroless nickel-plated steel
• Finish: CPC powder coat
• Length: 49 inches
• Width: 32 inches
• Height: 32 inches
• Weight: 221 pounds
• UPC: 674255836567

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1195-3228-C
