Coxreels 1195-3228-AB Hose Reel 2 Inch Id 125 Ft

Product Description

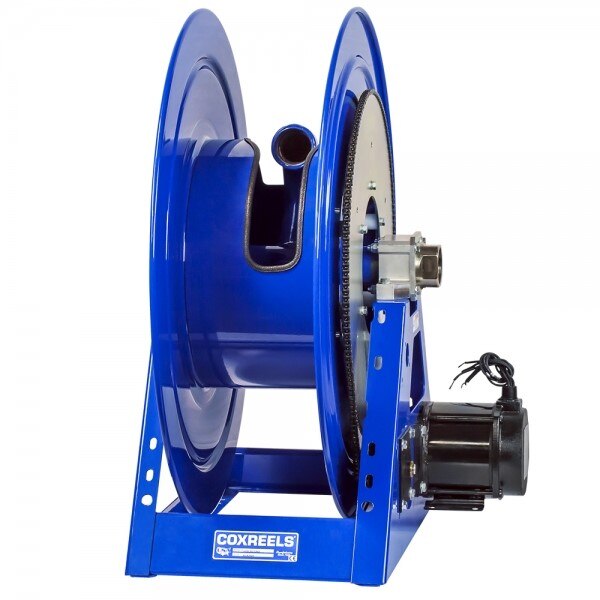

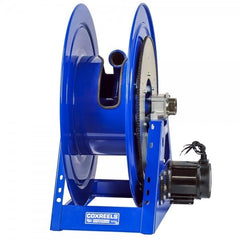

The COXREELS 1195-3228-AB is a heavy-duty hand crank and motor driven hose reel built for high-volume fluid delivery through long runs of large-diameter hose. Designed around a 2 inch inner diameter hose inlet and engineered for hose lengths up to 125 feet, this reel handles the extra mass without compromising rotation or hose integrity. The all-welded steel A-frame base and CNC robotically spun ribbed discs give it the structural rigidity required for demanding mobile and fixed installations. At 235 pounds, it is sized for permanent or semi-permanent mounting by industrial, oilfield, agriculture, or fleet service professionals.

The 1195-3228-AB belongs to the COXREELS 1195 Series, which targets applications requiring increased flow volume through oversized hose. Typical installs include wash bays, bulk fluid transfer stations, mobile lube trucks, and heavy equipment service bays. The open drum design and exclusive low-profile outlet riser allow the hose to lay flat during winding, preventing kinking and preserving hose life over repeated cycles. The included aluminum body air motor with 6-vane design allows power-driven retrieval where hand crank operation is impractical.

Key Features

• 2 inch ID hose inlet with 2 9/16 inch OD accommodates high-volume large-diameter hose up to 125 feet
• In-line electroless nickel plated steel full-flow NPT swivel enables seal maintenance and hose swaps without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges provide structural strength and protect hose edges from abrasion
• Exclusive low-profile outlet riser and open drum slot design delivers non-crimping, flat smooth hose wrap every cycle
• One-piece all-welded 12-gauge steel A-frame base with integrated mounting pattern for secure installation and clean detachment
• CPC powder coat finish resists chips, rust, and corrosion for extended service life in harsh environments

Compatibility

Designed as an OEM-style fit within the COXREELS 1195 Series for large-diameter, high-volume hose applications requiring hand crank or motor-driven retrieval.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid transfer equipment and applicable facility codes. Shut down all fluid supply pressure and depressurize the hose assembly completely before mounting or servicing the reel. The integrated mounting pattern in the steel base accepts standard bolt patterns; confirm substrate load capacity before installation given the 235-pound unit weight. Verify NPT swivel fitting compatibility with the supply line before connecting, and test for leaks at operating pressure before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 2 inches
• Hose Outer Diameter: 2 9/16 inches
• Hose Capacity: 125 feet
• Drive Type: Hand crank and motor driven
• Motor: Aluminum body air motor, 6-vane
• Frame Material: 12-gauge welded steel
• Finish: CPC powder coat
• Swivel: Electroless nickel plated steel full-flow NPT
• Length: 49 inches
• Width: 32 inches
• Height: 32 inches
• Weight: 235 pounds
• UPC: 674255833395

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1195-3228-AB
