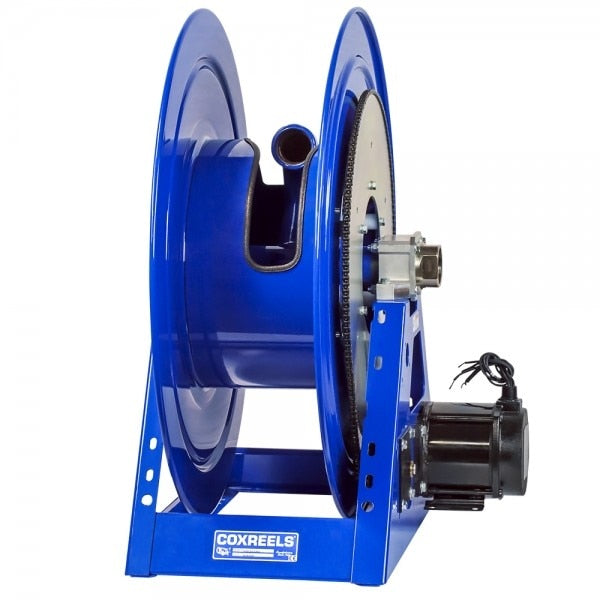

Coxreels 1195-2428-H Hose Reel 2 Inch Id 90 Ft

Product Description

The COXREELS 1195-2428-H is a heavy-duty industrial hose reel from the 1195 Series, designed for high-volume fluid delivery applications requiring long hose lengths and large hose diameters. It features a 2-inch ID hose path and accommodates up to 90 feet of hose with a 2 9/16-inch OD. The unit ships at 185 pounds, confirming the robust all-welded steel construction throughout. An exclusive low-profile outlet riser combined with an open drum slot design ensures a non-crimping, flat, smooth hose wrap that protects hose integrity under repeated use. This reel is suited for licensed trades and industrial service professionals who require reliable, high-flow reel performance in fixed or mobile applications.

The 1195-2428-H is built for demanding industrial and trade environments where large-diameter hose management is required. Its open drum design and heavy-gauge frame make it well suited for mobile service rigs, plant maintenance stations, and high-volume fluid transfer setups. The hydraulic motor drive provides powered retraction for long, heavy hose runs where manual retrieval would be impractical. The sturdy all-welded A-frame base supports the significant combined weight of the reel and a fully loaded 90-foot hose without structural compromise, even under mobile or vibration-prone conditions.

Key Features

• Exclusive low-profile outlet riser and open drum slot design provide a non-crimping, flat, smooth hose wrap
• In-line electroless nickel plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for increased strength, durability, hose protection, and operator safety
• One-piece all-CNC robotically welded 12-gauge steel A-frame base for superior structural integrity with integrated mounting pattern
• Permanently lubricated horizontal surface-mount bearings for smooth, consistent rotation
• CPC powder coat finish provides long-lasting chip resistance and rust inhibition; hydraulic motor included

Compatibility

Designed as an OEM-style large-diameter hose reel for industrial and trade applications requiring 2-inch ID hose management with high-volume fluid delivery capacity.

Installation Notes

Installation should be performed by qualified trade or industrial maintenance personnel familiar with large-diameter hose reel systems. Shut off all fluid supply and depressurize the hose and connected lines before mounting or connecting the reel. Secure the A-frame base to a structurally adequate surface using the integrated mounting pattern, ensuring the mount can support the reel weight plus a fully loaded hose. For hydraulic motor connections, follow applicable hydraulic system codes and confirm proper flow and pressure ratings before commissioning.

Technical Specifications

• Hose ID: 2 inches
• Hose OD: 2 9/16 inches
• Hose Capacity: 90 feet
• Frame Material: 12-gauge welded steel
• Drive Type: Hydraulic motor
• Length: 44 inches
• Width: 28 inches
• Height: 34 inches
• Weight: 185 pounds
• Finish: CPC powder coat
• Swivel Material: Electroless nickel plated steel
• UPC: 674255854109

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1195-2428-H
