Coxreels 1195-2428-EAV3-BUXX Hose Reel 2 Inch Id

Product Description

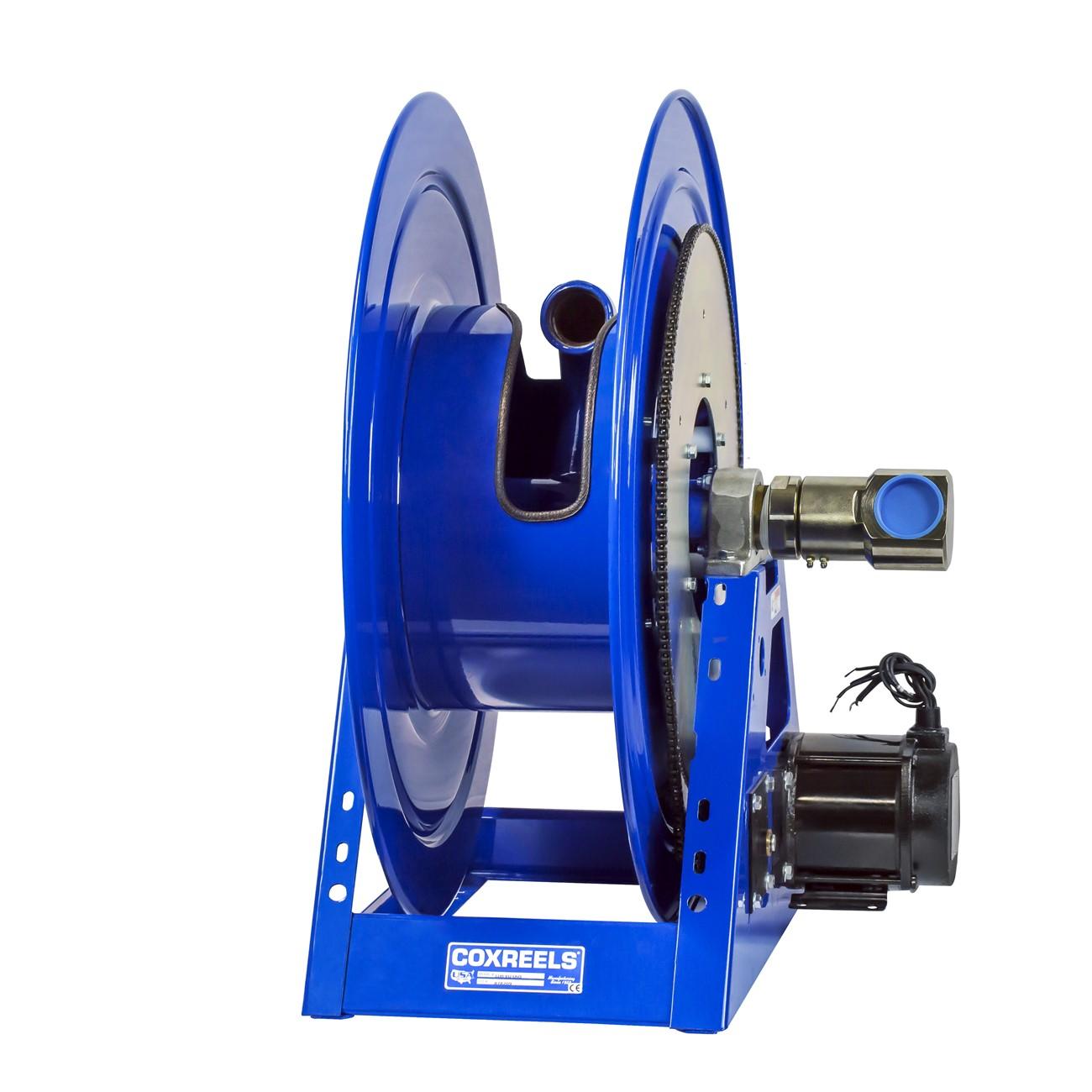

The COXREELS 1195-2428-EAV3-BUXX is a heavy-duty motor-driven hose reel from the 1195 Series, engineered for high-volume delivery of large-diameter hose in demanding trade and industrial applications. The reel features a 2-inch ID inlet and a 2 9/16-inch OD hose path, and is powered by a 115-volt AC, 1/2 HP reversible AC rectified motor. An exclusive low-profile outlet riser combined with an open drum slot design ensures a non-crimping, flat smooth hose wrap across the full length of the hose. The all-welded CNC-fabricated steel A-frame base provides structural rigidity capable of handling the unit's 195-pound assembled weight without performance loss.

The 1195-2428-EAV3-BUXX suits commercial and industrial installations where extended hose lengths and large-diameter flow are required, such as fluid transfer, wash-down stations, and mobile service vehicles. The open drum design accommodates long hose runs while maintaining even wrap geometry. Permanently lubricated horizontal surface-mount bearings support smooth rotation under load. The built-in base mounting pattern allows straightforward installation and removal without disassembling the reel from the hose.

Key Features

• 115-volt AC, 1/2 HP reversible AC rectified motor for powered retraction and deployment
• Electroless nickel-plated steel 90-degree full-flow NPT swivel with ball bearings — hose installs without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• One-piece all-welded 12-gauge steel A-frame base — no bolted joints — for superior structural integrity
• Low-profile outlet riser and open drum slot eliminate hose crimping and promote flat, even wrap
• CPC powder coat finish rated for chip resistance and rust inhibition for long service life
• Permanently lubricated bearings for low-effort rotation under heavy hose loads

Compatibility

Designed as an OEM-style fit within the COXREELS 1195 Series platform for large-diameter, high-volume hose reel applications requiring motor-driven operation.

Installation Notes

Installation is typically performed by qualified mechanical or industrial service technicians. Disconnect and lock out all electrical power before servicing the motor or wiring connections; the unit operates on 115-volt AC and must be wired in accordance with applicable NEC requirements. Secure the reel to a flat, load-rated mounting surface using the integrated base mounting pattern before connecting the hose. Verify hose thread type and swivel NPT sizing match the supply fitting before pressurizing the system.

Technical Specifications

• Hose ID: 2 inches
• Hose OD: 2 9/16 inches
• Motor Voltage: 115 volts AC
• Motor Power: 1/2 HP reversible AC rectified
• Frame Material: 12-gauge CNC welded steel
• Swivel Finish: Electroless nickel-plated steel
• Finish: CPC powder coat
• Length: 44 inches
• Width: 28 inches
• Height: 34 inches
• Weight: 195 pounds
• UPC: 674255863781

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1195-2428-EAV3-BUXX
