Coxreels 1195-2428-C Hose Reel 2 Inch Id 90 Ft

Product Description

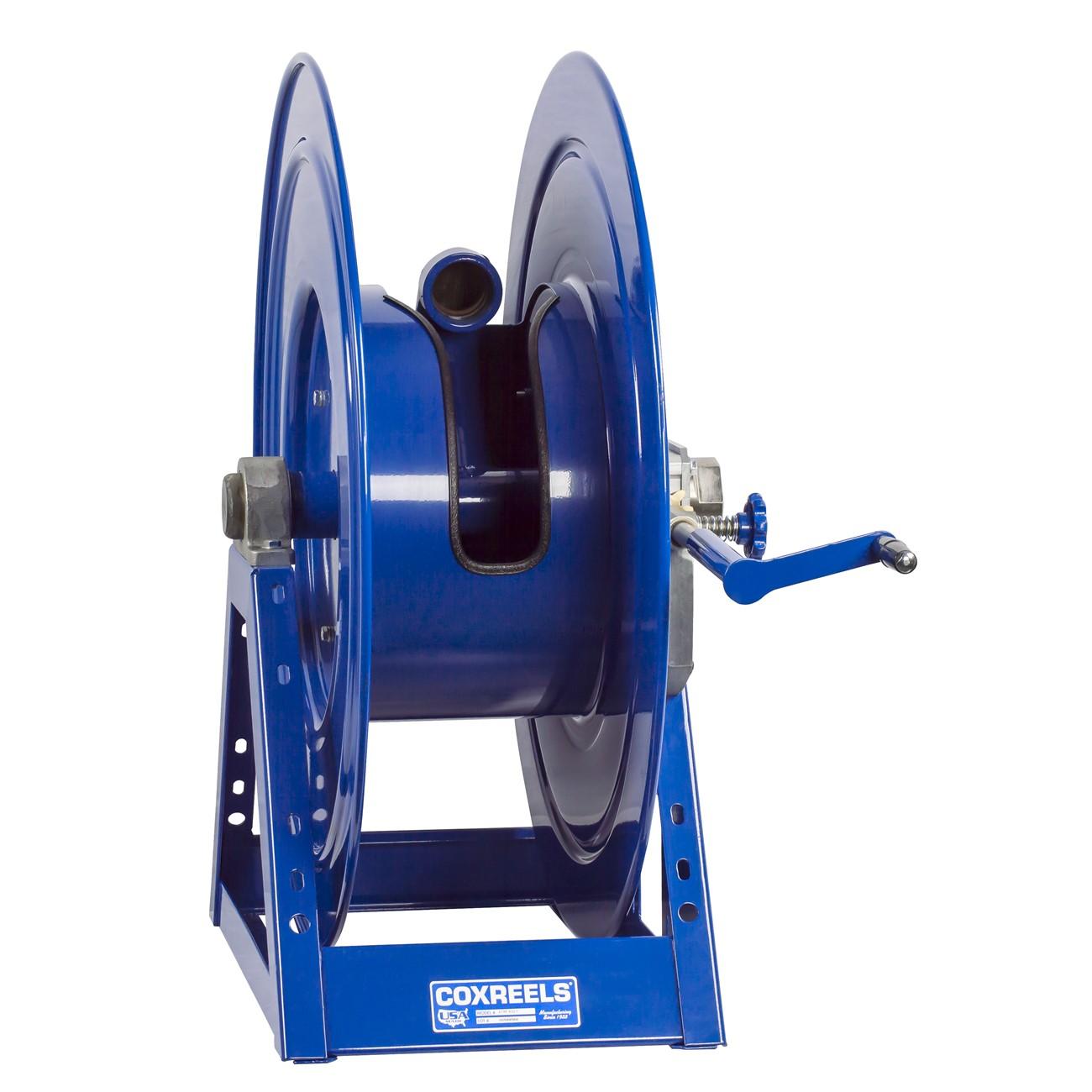

The COXREELS 1195-2428-C is a heavy-duty hose reel from the 1195 Series, engineered for applications that demand long hose lengths and high-volume fluid delivery. Built with a 2-inch ID and rated for up to 90 feet of large-diameter hose, this reel is available in hand crank and motor-driven configurations. The all-welded steel A-frame base, CNC robotically spun discs, and exclusive low-profile outlet riser combine to provide a no-crimp, flat hose wrap even under the considerable weight of a fully loaded reel. At 172 pounds, this is a serious industrial unit intended for licensed contractors and service professionals working in demanding fixed or mobile environments.

The 1195-2428-C is suited for industrial, commercial, and mobile service applications where large-diameter hose must be deployed and retracted reliably. Its open drum slot design and low-profile outlet riser make it a strong fit for high-volume fluid transfer tasks such as water, hydraulic fluid, or similar media delivery in construction, municipal, or fleet maintenance settings. The front bevel-geared crank allows mechanical retraction without power, giving techs a reliable backup in field conditions.

Key Features

• 2-inch ID hose path supports high-volume fluid delivery over runs up to 90 feet
• Exclusive low-profile outlet riser and open drum slot design eliminates hose crimping and promotes a flat, even wrap
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• One-piece all-welded 12-gauge steel A-frame base — not bolted — for superior structural integrity
• In-line electroless nickel-plated steel full-flow NPT swivel allows seal maintenance and hose changes without removing the reel from its mount
• CPC powder coat finish resists chipping and rust; permanent lubricated horizontal surface-mount bearings ensure smooth rotation

Compatibility

Designed as an OEM-style large-diameter hose reel for industrial and commercial fluid-delivery systems requiring 2-inch ID hose capacity at lengths up to 90 feet.

Installation Notes

Installation should be performed by qualified contractors familiar with high-volume hose reel systems. Power down or shut off fluid supply before mounting or servicing the reel. The mounting pattern is located in the steel base for straightforward attachment and detachment from a fixed surface or mobile platform. Verify all NPT swivel connections are properly sealed before returning the system to service.

Technical Specifications

• Hose ID: 2 inches
• Hose OD: 2.5625 inches (2 9/16 inches)
• Maximum Hose Length: 90 feet
• Unit Dimensions: 44 inches (L) x 28 inches (W) x 34 inches (H)
• Weight: 172 pounds
• Frame Material: 12-gauge welded steel
• Swivel Material: Electroless nickel-plated steel
• Finish: CPC powder coat
• Drive Type: Hand crank (front bevel geared); motor-driven option available
• UPC: 674255836556

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1195-2428-C
