Coxreels 1195-2428-C-BUXX Hose Reel 2 Inch Id Steel

Product Description

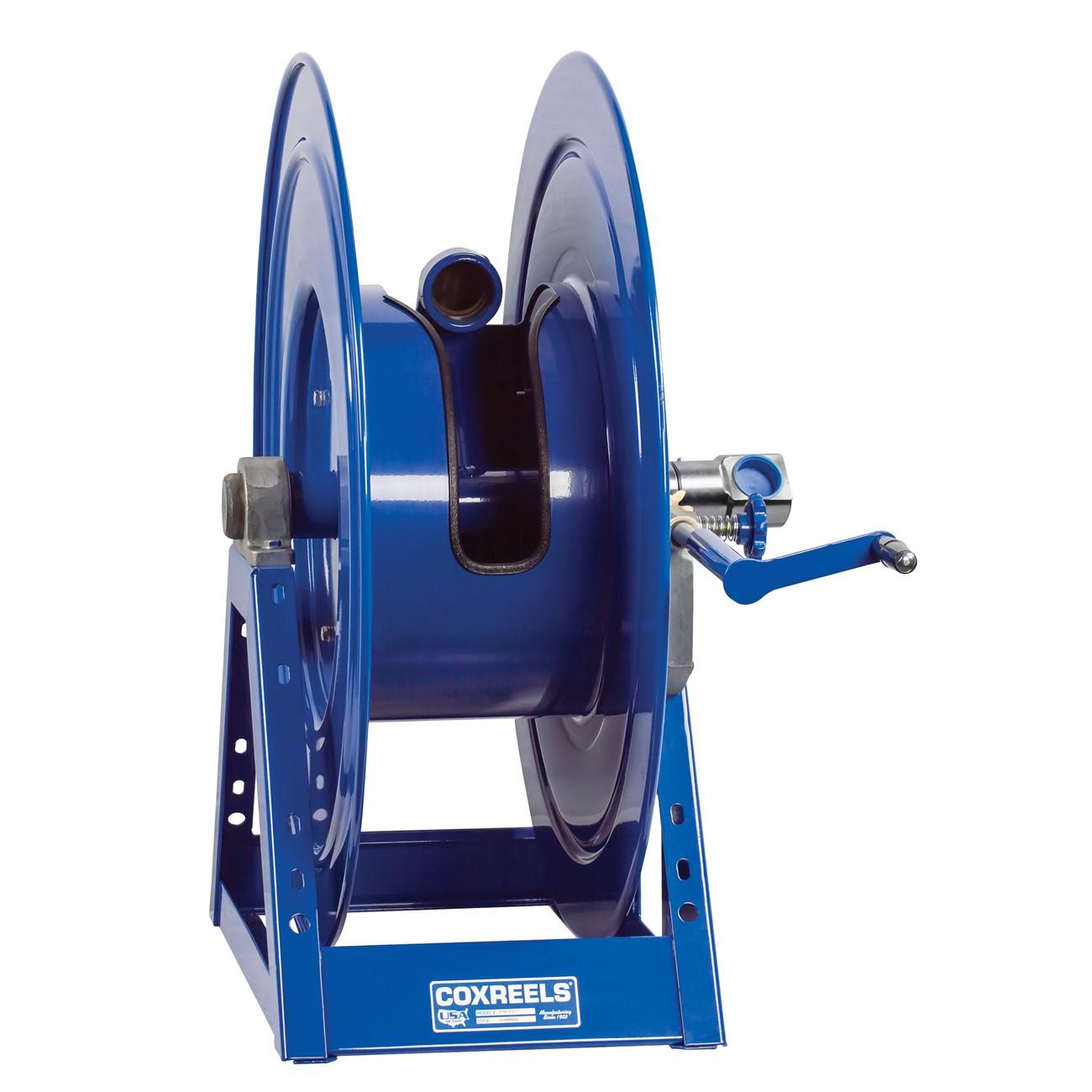

The COXREELS 1195-2428-C-BUXX is a heavy-duty industrial hose reel from the 1195 Series, engineered for high-volume fluid delivery applications requiring long runs of large-diameter hose. Built on a fully welded CNC-robotically welded 12-gauge steel A-frame base, this reel handles the substantial weight of 2-inch ID hose without compromising structural integrity. It ships as a single unit weighing 172 pounds and measures 44 inches long by 28 inches wide by 34 inches tall. Licensed HVAC technicians, industrial mechanics, and fleet service professionals install this reel in both stationary and demanding mobile applications where flow volume and reel durability are critical.

The 1195-2428-C-BUXX is suited for industrial, commercial, and mobile service environments where large-diameter hose management is required. Its open drum design and low-profile outlet riser are specifically configured to accommodate long hose lengths without crimping or distortion during winding and unwinding. The front bevel-geared hand crank allows mechanical retraction in applications where motor drive is not present. This reel is appropriate for use on service trucks, in shop bays, and in fixed facility installations where high-volume delivery is the primary requirement.

Key Features

• 2-inch ID hose connection with 2 9/16-inch OD drum configuration for large-diameter, high-volume delivery
• Electroless nickel-plated steel 90-degree full-flow NPT swivel with ball bearings for fast hose installation without dismounting the reel
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, hose protection, and operator safety
• Exclusive low-profile outlet riser and open drum slot design prevents hose crimping and ensures a flat, smooth wrap
• One-piece fully welded 12-gauge steel A-frame base with integrated mounting pattern for easy installation and detachment
• Permanently lubricated horizontal surface-mount bearings and CPC powder coat finish for long service life and corrosion resistance

Compatibility

Designed as an OEM-style fit within the COXREELS 1195-BUXX Series for applications requiring 2-inch ID large-diameter hose management in industrial and mobile service settings.

Installation Notes

Installation should be performed by a qualified mechanic or industrial technician familiar with large-capacity fluid delivery systems. Shut off all fluid supply lines and relieve hose pressure completely before mounting or connecting the reel. Secure the A-frame base to a structurally rated surface using fasteners appropriate for the mounting substrate and load rating. Follow all applicable facility safety codes and equipment manufacturer guidelines when integrating this reel into a mobile or stationary service system.

Technical Specifications

• Hose ID: 2 inches
• Hose OD: 2 9/16 inches
• Length: 44 inches
• Width: 28 inches
• Height: 34 inches
• Weight: 172 pounds
• Frame Material: 12-gauge steel, fully welded
• Swivel Material: Electroless nickel-plated steel
• Finish: CPC powder coat
• UPC: 674255854420

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1195-2428-C-BUXX
