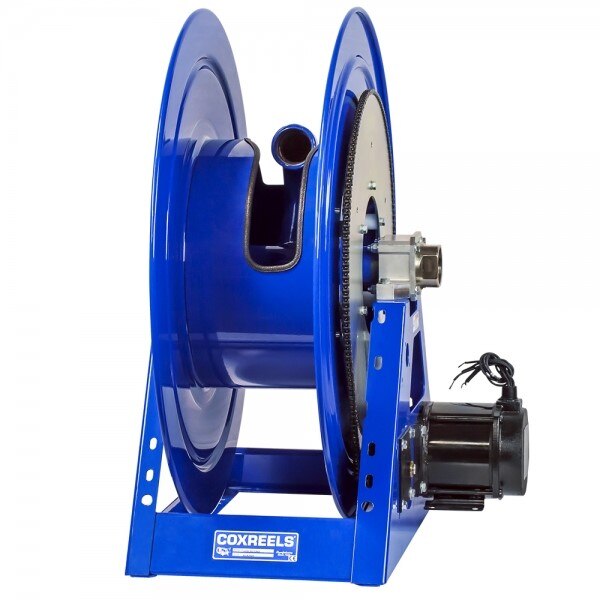

Coxreels 1195-2428-AB Hose Reel 2 Inch Id 90 Ft

Product Description

The COXREELS 1195-2428-AB is a heavy-duty hose reel from the 1195 Series, built for handling long runs of large-diameter hose in high-volume fluid delivery applications. It features a 2-inch ID inlet and accommodates up to 90 feet of hose. The reel uses an all-welded steel A-frame base and CNC robotically spun ribbed discs to manage the extra load that comes with large-diameter hose without compromising structural integrity. Available in hand crank or motor-driven configurations, this reel is suited for contractors, industrial service operations, and mobile fleet applications where volume and durability are the primary requirements.

The 1195-2428-AB is designed for demanding fixed and mobile installations where large-diameter hose must be managed cleanly and reliably. Its open drum design and low-profile outlet riser promote a flat, non-crimping hose wrap, which is critical when working with heavy hose at extended lengths. The CPC powder coat finish resists chipping and rust, making it appropriate for both indoor and outdoor service environments. A licensed contractor or experienced service technician would typically install this reel in truck-mount, trailer-mount, or stationary bay configurations.

Key Features

• In-line electroless nickel plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges provide increased strength, hose protection, and operator safety
• Exclusive low-profile outlet riser and open drum slot design produces a flat, non-crimping hose wrap
• One-piece all-welded 12-gauge steel A-frame base — not bolted — for superior structural rigidity and straightforward mounting and removal
• Permanently lubricated horizontal surface-mount bearings support smooth rotation under load
• Long-lasting CPC powder coat finish resists chipping and rust for extended service life in harsh environments

Compatibility

Designed for use with 2-inch ID large-diameter hose up to 90 feet in length. Suitable for high-volume fluid delivery in industrial, mobile, and stationary service applications. Consult COXREELS documentation to confirm hose material and pressure rating compatibility before installation.

Installation Notes

Installation should be performed by a qualified technician familiar with industrial fluid handling systems. Before servicing or mounting, shut off fluid supply and relieve any residual line pressure. Secure the reel to its mounting surface using the integrated base mounting pattern, and verify all swivel and inlet connections are torqued to the fitting manufacturer specifications. Motor-driven configurations should be wired in compliance with applicable NEC requirements by a licensed electrician.

Technical Specifications

• Hose Inside Diameter: 2 inches
• Hose Outside Diameter: 2.5625 inches
• Maximum Hose Length: 90 feet
• Frame Material: 12-gauge welded steel
• Finish: CPC powder coat
• Swivel Material: Electroless nickel plated steel
• Length: 44 inches
• Width: 28 inches
• Height: 34 inches
• Weight: 186 pounds
• UPC: 674255833357

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1195-2428-AB
