Coxreels 1195-2032-H Hose Reel 2 Inch Id 115 Ft

Product Description

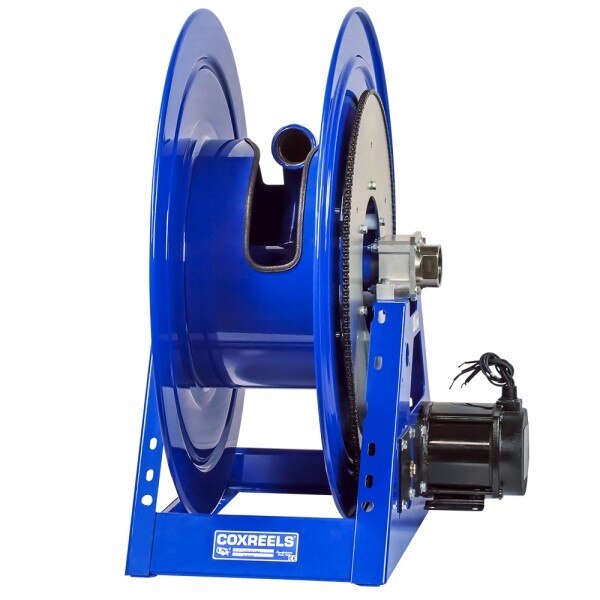

The COXREELS 1195-2032-H is a heavy-duty hose reel from the 1195 Series, built for hand crank or hydraulic motor-driven operation on long runs of large-diameter hose. With a 2-inch ID and 2-9/16-inch OD hose capacity rated to 115 feet, this reel delivers the high-volume flow required in demanding industrial, mobile, and fleet maintenance applications. The all-welded steel A-frame base and CNC robotically spun ribbed discs give the unit the structural integrity needed to carry the added weight of large-bore hose without flex or fatigue. Pipe fitters, industrial service technicians, and mobile equipment operators are the primary installers.

The 1195-2032-H is suited for industrial fluid transfer, heavy equipment lubrication systems, mobile service trucks, and high-volume wash-down or hydraulic supply lines. The open drum slot design and low-profile outlet riser allow the hose to wrap flat and smooth without crimping, making it appropriate where consistent flow rate and hose longevity are priorities. The unit is configured for horizontal surface mounting and is built to perform in both stationary and mobile setups where vibration and heavy loads are routine.

Key Features

• Hydraulic motor drive with hand crank capability for flexible operation in powered or manual configurations
• In-line electroless nickel plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for hose protection, operator safety, and long-term structural durability
• Exclusive low-profile outlet riser and open drum slot design produces a non-crimping, flat smooth hose wrap
• One-piece all-welded 12-gauge steel A-frame base with integrated mounting pattern for secure installation and easy detachment
• CPC powder coat finish resists chips and rust for extended service life in harsh environments

Compatibility

Designed as an OEM-style fit within the COXREELS 1195 Series for large-diameter hose applications requiring 2-inch ID capacity and extended hose lengths up to 115 feet.

Installation Notes

Installation should be performed by qualified industrial technicians or fleet service personnel familiar with high-volume fluid transfer systems. Disconnect and depressurize all fluid lines before mounting or servicing the reel. Secure the A-frame base to a flat surface using the integrated mounting pattern, following fastener torque recommendations from the mounting surface manufacturer. Verify hydraulic motor supply connections are rated for the system pressure before commissioning.

Technical Specifications

• Hose ID: 2 inches
• Hose OD: 2-9/16 inches
• Hose Length Capacity: 115 feet
• Frame Material: 12-gauge welded steel
• Drive Type: Hydraulic motor and hand crank
• Swivel Finish: Electroless nickel plated steel
• Finish: CPC powder coat
• Mounting Style: Horizontal surface mount
• Length: 36 inches
• Width: 36 inches
• Height: 36 inches
• Weight: 202 pounds
• UPC: 674255840577

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1195-2032-H
