Coxreels 1195-2032-H-BUXX Hose Reel 2 Inch Id Steel

Product Description

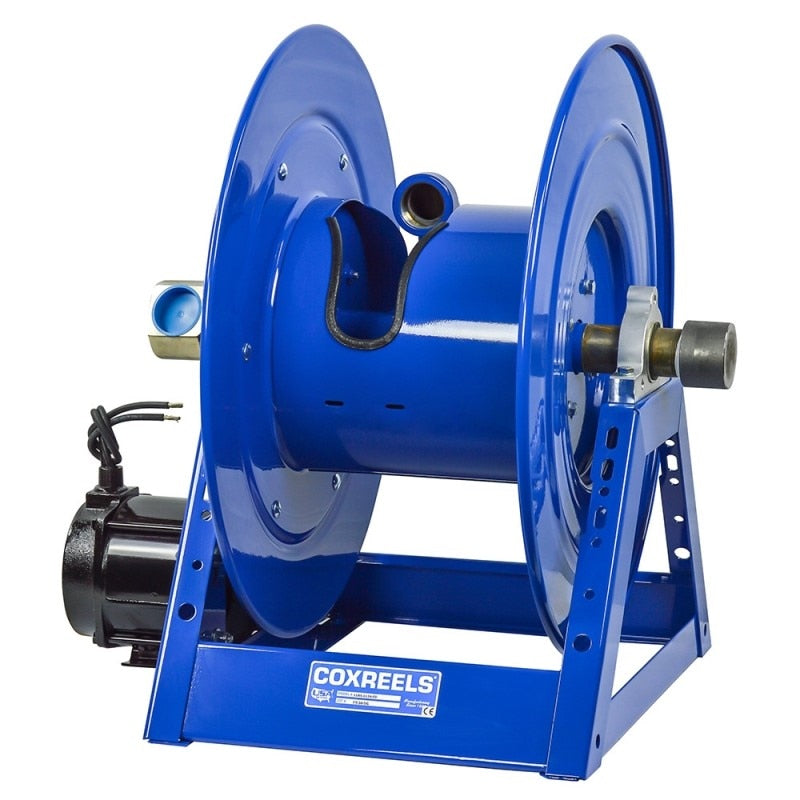

The COXREELS 1195-2032-H-BUXX is a heavy-duty hose reel from the 1195 Series, engineered for long lengths of large-diameter hose in high-volume fluid delivery applications. The reel features a 2-inch inner diameter hose path and is constructed from welded steel throughout. An exclusive low-profile outlet riser paired with an open drum slot design ensures a non-crimping, flat hose wrap, protecting hose integrity over repeated use. A CPC powder coat finish resists chipping and rust for extended service life. This unit is equipped with a hydraulic motor drive and weighs 192 pounds, making it suited to fixed or heavy-duty mobile installations handled by qualified service technicians.

The 1195-2032-H-BUXX is intended for industrial and commercial applications where large-diameter hose and high flow volume are required. Typical installations include fleet maintenance facilities, mobile lube and fluid service trucks, agricultural operations, and industrial plant service points. The all-welded steel frame base and motor-driven operation make it appropriate for demanding environments where manual alternatives are not practical. The unit ships as a single assembly and mounts via a pattern located in the steel base for straightforward positioning and removal.

Key Features

• Electroless nickel-plated steel 90-degree full-flow NPT swivel with ball bearings allows hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, hose protection, and operator safety
• Exclusive low-profile outlet riser and open drum slot design delivers a non-crimping, flat smooth hose wrap
• One-piece all CNC robotically welded 12-gauge steel A-frame base provides superior reel structure without bolted joints
• Permanently lubricated horizontal surface-mount bearings for smooth, low-effort rotation
• CPC powder coat finish resists chipping, rust, and corrosion for long service life in demanding environments

Compatibility

Designed as an OEM-style unit within the COXREELS 1195-BUXX Series, configured for 2-inch inner diameter hose in hydraulic motor-driven large-diameter hose reel applications.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid handling equipment and applicable safety codes. Shut down all fluid supply pressure and depressurize the hose circuit completely before mounting or connecting the reel. Secure the reel to a structurally adequate surface using the mounting pattern in the steel base. Verify all hydraulic motor connections and NPT swivel fittings for proper thread engagement and leak-free sealing before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 2 inches
• Hose Outer Diameter: 2 9/16 inches
• Frame Material: 12-gauge welded steel
• Drive Type: Hydraulic motor
• Swivel Material: Electroless nickel-plated steel
• Swivel Connection: 90-degree full-flow NPT
• Finish: CPC powder coat
• Overall Dimensions: 36 inches L x 36 inches W x 36 inches H
• Weight: 192 pounds
• UPC: 674255854413

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1195-2032-H-BUXX
