Coxreels 1195-2032-EDV3 Hose Reel 2 Inch Id 115 Ft

Product Description

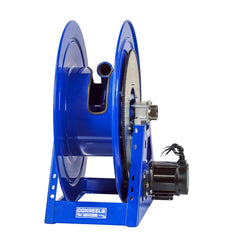

The COXREELS 1195-2032-EDV3 is a heavy-duty motor-driven hose reel from the 1195 Series, built for high-volume fluid delivery through large-diameter hose. It features a 2-inch inner diameter hose path and accommodates up to 115 feet of hose. The reel is powered by a 12-volt DC, 1/2 HP explosion-proof reversible motor. An all-welded 12-gauge steel A-frame base and CNC robotically spun ribbed discs give this reel the structural integrity needed for demanding fixed or mobile service environments. Weighing 199 pounds, it is sized for industrial and fleet applications where high flow rates and long hose runs are required. Licensed HVAC technicians, plumbers, and industrial service contractors are the typical installers.

The 1195-2032-EDV3 is designed for applications requiring long hose lengths at large diameters, such as high-volume fluid transfer, mobile service trucks, shop installations, and industrial fluid handling. The exclusive low-profile outlet riser and open drum slot design promote a non-crimping, flat hose wrap that protects hose integrity under repeated use. The unit ships as a single assembly with a mounting pattern integrated into the steel base for straightforward installation and removal. It is suited to both stationary shop setups and mobile fleet vehicles where durability under load is critical.

Key Features

• 12-volt DC, 1/2 HP explosion-proof reversible motor for powered hose retrieval
• In-line electroless nickel-plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Exclusive low-profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap
• One-piece all-welded 12-gauge steel A-frame base with integrated mounting pattern for secure installation and easy detachment
• Permanently lubricated horizontal surface-mount bearings for smooth rotation
• CPC powder coat finish for chip resistance and rust inhibition

Compatibility

Designed as an OEM-style replacement or direct-fit unit for industrial and mobile service applications requiring 2-inch ID large-diameter hose reels with motor-driven retrieval.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid handling equipment and low-voltage DC wiring. Disconnect all power sources before servicing the motor or electrical connections, and shut off fluid supply before attaching or detaching hose. The integrated base mounting pattern should be fastened to a structurally rated surface capable of supporting the unit weight and dynamic hose load. Verify that the 12-volt DC power supply circuit is properly fused and rated for the motor draw before energizing.

Technical Specifications

• Hose Inner Diameter: 2 inches
• Hose Outer Diameter: 2.5625 inches
• Hose Capacity: 115 feet
• Motor: 12V DC, 1/2 HP explosion-proof reversible
• Frame Material: 12-gauge welded steel
• Finish: CPC powder coat
• Swivel: Electroless nickel-plated steel full-flow NPT
• Unit Weight: 199 pounds
• Length: 36 inches
• Width: 36 inches
• Height: 36 inches
• UPC: 674255861084

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1195-2032-EDV3
