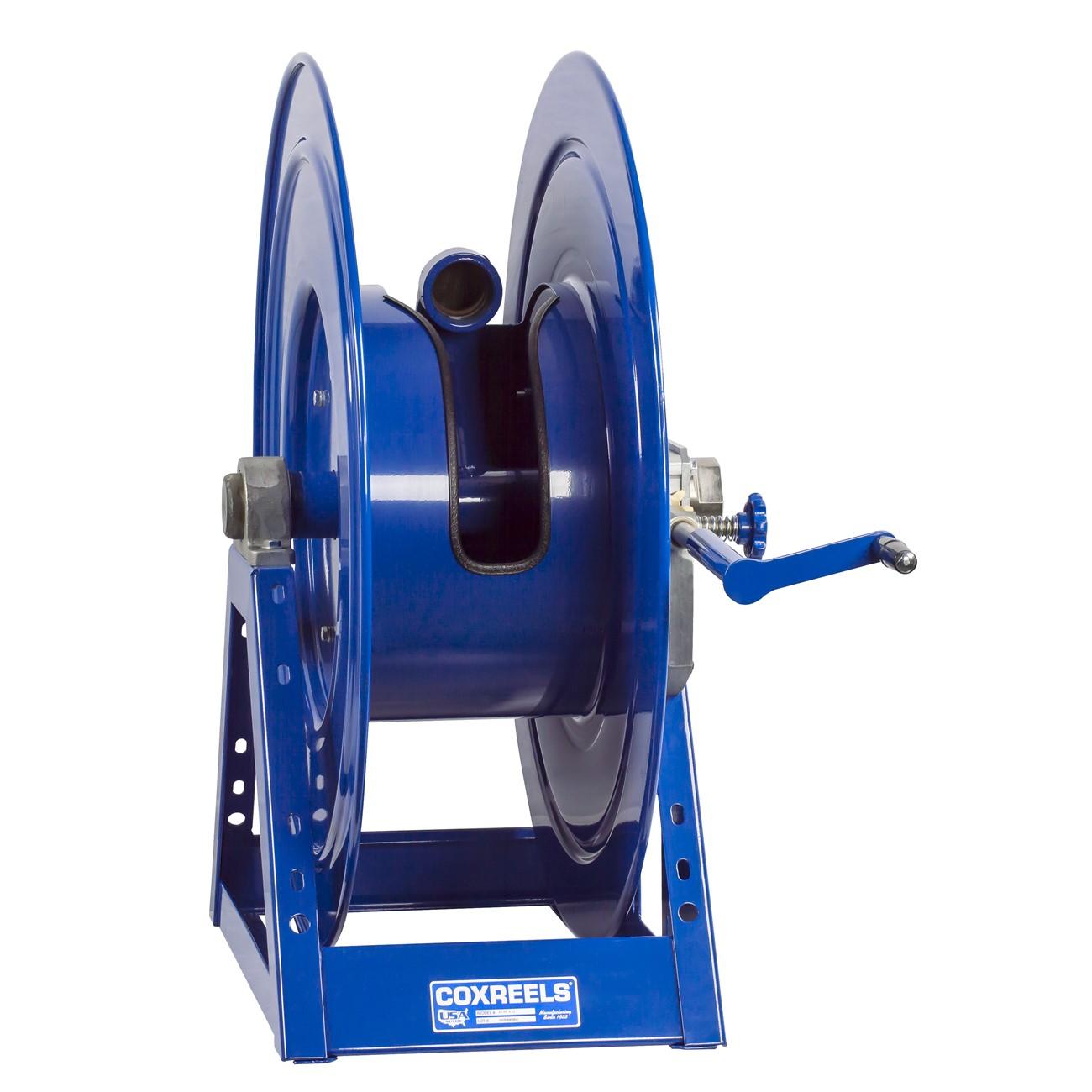

Coxreels 1195-2032-C Hose Reel 2 Inch Id 115 Ft

Product Description

The COXREELS 1195-2032-C is a heavy-duty hose reel from the 1195 Series, engineered for long lengths of large-diameter hose where high-volume fluid delivery is required. The reel features a 2-inch inner diameter hose inlet and accommodates up to 115 feet of hose. It is available in hand crank and motor-driven configurations, making it adaptable to fixed and mobile installations alike. The all-welded steel A-frame base provides structural rigidity to support the significant weight of a fully loaded large-bore hose, while an exclusive low-profile outlet riser and open drum slot design promotes a flat, non-crimping hose wrap for consistent flow and extended hose life.

The 1195-2032-C is suited for industrial, commercial, and mobile service applications where large-diameter hose management is needed. Typical uses include high-volume fluid transfer, industrial wash-down, and mobile lube or oil service rigs. The open drum design and front bevel-geared crank make it practical for demanding environments where fast deployment and retraction are critical. Licensed trades and service technicians working in fleet maintenance, industrial facilities, and mobile service units will find this reel built to handle repeated daily use.

Key Features

• In-line electroless nickel-plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• Exclusive low-profile outlet riser and open drum slot design delivers a non-crimping, flat smooth hose wrap
• One-piece all-welded 12-gauge steel A-frame base provides superior structural integrity over bolted alternatives
• Permanently lubricated horizontal surface-mount bearings for smooth, consistent rotation
• CPC powder coat finish resists chips and rust for long service life in harsh environments
• Front bevel-geared crank enables easy mechanical hose retraction

Compatibility

Designed for use with 2-inch inner diameter hose in high-volume industrial, commercial, and mobile fluid delivery applications as part of the COXREELS 1195 Series platform.

Installation Notes

Installation is typically performed by industrial maintenance technicians or licensed service professionals familiar with large-bore fluid handling systems. Shut off all fluid supply and depressurize the hose and line before mounting or servicing the reel. The mounting pattern is located in the steel base for straightforward attachment to a fixed surface or mobile platform. Follow all applicable local codes and equipment manufacturer guidelines when integrating into pressurized fluid systems.

Technical Specifications

• Hose Inner Diameter: 2 inches
• Hose Outer Diameter: 2.5625 inches
• Hose Capacity: 115 feet
• Frame Material: 12-gauge welded steel
• Swivel Material: Electroless nickel-plated steel
• Finish: CPC powder coat
• Length: 36 inches
• Width: 36 inches
• Height: 36 inches
• Weight: 189 pounds
• UPC: 674255836549

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1195-2032-C
