Coxreels 1195-2032-C-BUXX Hose Reel 2 Inch Id Steel

Product Description

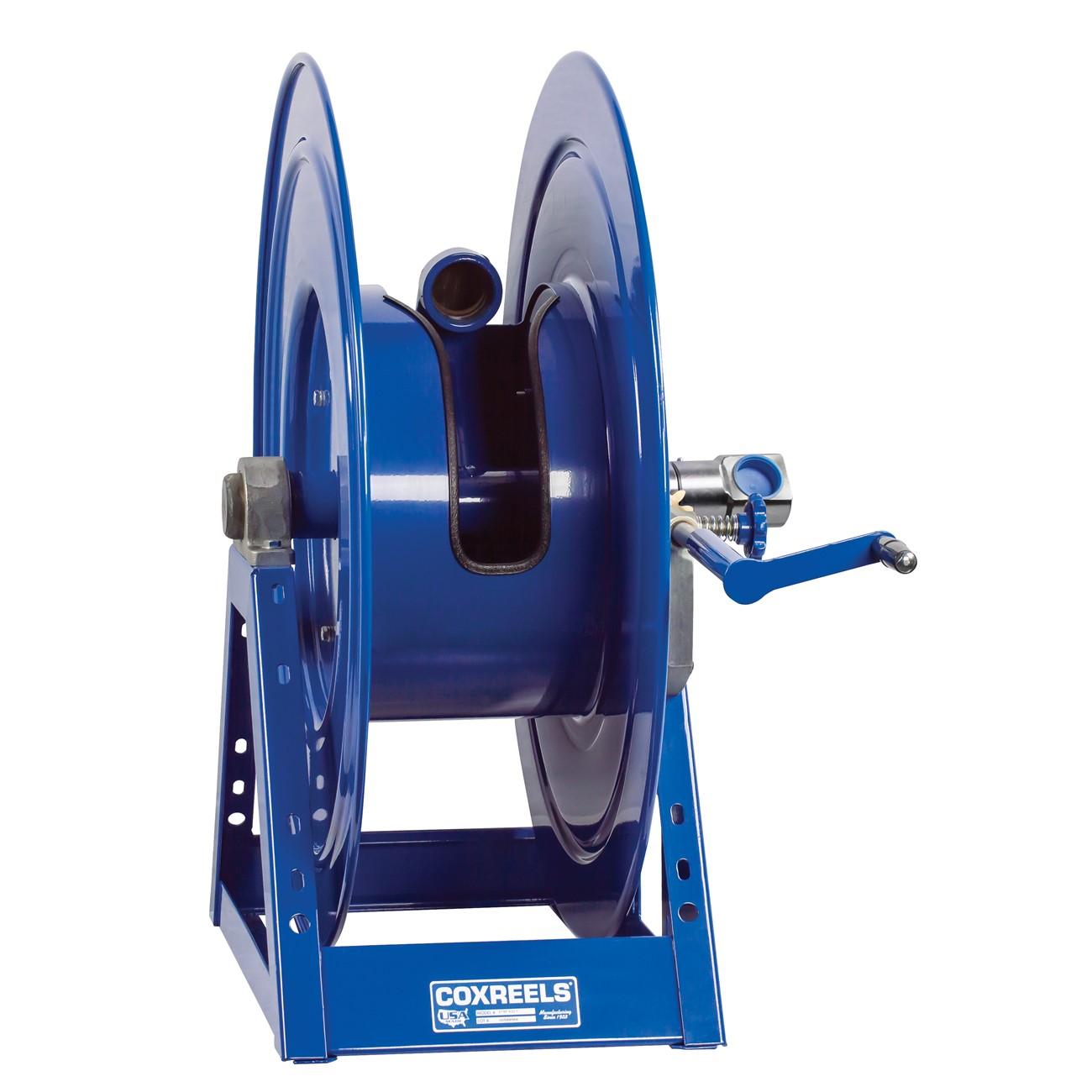

The COXREELS 1195-2032-C-BUXX is a heavy-duty hose reel from the 1195 Series, engineered for large-diameter, high-volume hose management in industrial and mobile service environments. Built around a fully welded steel A-frame base, this reel accepts 2-inch ID hose and features an exclusive low-profile outlet riser with an open drum slot design that ensures a non-crimping, flat smooth hose wrap. A front bevel-geared hand crank provides mechanical retraction, and the unit weighs 189 pounds, making it appropriate for fixed-mount or heavy mobile applications. Licensed HVAC, plumbing, and industrial service technicians working with high-flow fluid transfer systems will recognize this as a purpose-built, production-grade reel.

The 1195-2032-C-BUXX is suited for applications requiring long hose runs and large-diameter delivery, including industrial fluid transfer, mobile service trucks, fleet maintenance bays, and high-volume wash-down stations. The open drum design accommodates significant hose lengths without kinking or distorting the hose. The all-welded frame and CPC powder coat finish make this reel viable in outdoor, corrosive, or high-use environments where bolted construction would present a structural liability.

Key Features

• 2-inch ID hose inlet with 2 9/16-inch OD drum groove for large-diameter, high-volume delivery
• Electroless nickel-plated steel 90-degree full-flow NPT swivel with ball bearings for fast hose installation without dismounting the reel
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for structural strength, hose protection, and operator safety
• One-piece, fully CNC robotically welded 12-gauge steel A-frame base with integrated mounting pattern for secure installation and easy removal
• Permanently lubricated horizontal surface-mount bearings for smooth, low-effort rotation
• Long-lasting CPC powder coat finish that is chip-resistant and rust-inhibiting for extended service life
• Front bevel-geared hand crank for controlled mechanical hose retraction

Compatibility

Designed as an OEM-style large-diameter hose reel for industrial, mobile service, and high-volume fluid transfer installations requiring 2-inch ID hose connections.

Installation Notes

Installation is typically performed by industrial maintenance technicians or licensed plumbing professionals. Depressurize and drain all connected fluid lines before mounting or dismounting the reel. The integrated mounting pattern in the steel base accepts standard fasteners for fixed or mobile surface mounting. Follow applicable codes for fluid system connections, including IPC or IFGC guidelines where relevant to the fluid being transferred.

Technical Specifications

• Hose ID: 2 inches
• Hose OD: 2 9/16 inches
• Frame Material: 12-gauge welded steel
• Swivel Material: Electroless nickel-plated steel
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 36 inches
• Width: 36 inches
• Height: 36 inches
• Weight: 189 pounds
• UPC: 674255854390

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1195-2032-C-BUXX
