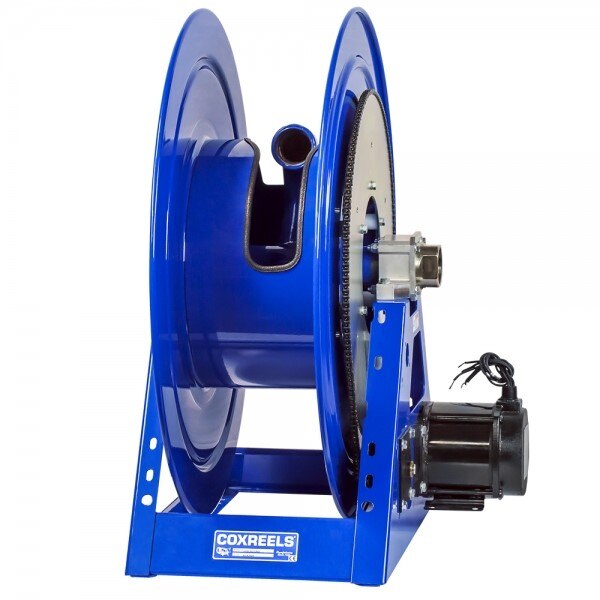

Coxreels 1195-2032-AB Hose Reel 2 Inch Id 115 Ft

Product Description

The COXREELS 1195-2032-AB is a heavy-duty hose reel from the 1195 Series, built for high-volume fluid delivery applications requiring long lengths of large-diameter hose. Available in hand crank and motor-driven configurations, this reel features an all-welded steel A-frame base and CNC robotically spun ribbed discs for structural integrity under load. The open drum slot design and low-profile outlet riser work together to produce a non-crimping, flat smooth hose wrap, preserving hose life and maintaining consistent flow. At 203 pounds, this reel is engineered for demanding stationary and mobile industrial installations. Licensed HVAC, plumbing, and industrial service professionals specify this reel where large-bore hose management and durability are non-negotiable.

The 1195-2032-AB accommodates a 2-inch ID hose with a 2-9/16-inch OD up to 115 feet in length, making it well suited for high-volume delivery tasks in industrial, commercial, and mobile service environments. The motor-driven option and robust frame construction make it appropriate for applications where manual rewinding of heavy, large-diameter hose is impractical. The mounting pattern is integrated into the steel base, simplifying installation on trucks, service bays, or fixed mounting surfaces.

Key Features

• Open drum slot and low-profile outlet riser deliver a non-crimping, flat smooth hose wrap to extend hose service life
• All-welded, one-piece CNC robotically welded 12-gauge steel A-frame base provides superior structural rigidity without bolted joints
• CNC robotically spun and ribbed discs with rolled edges improve strength, durability, and operator safety
• In-line electroless nickel-plated steel full-flow NPT swivel allows seal maintenance and hose replacement without removing the reel from its mount
• Permanently lubricated horizontal surface-mount bearings support smooth rotation under heavy load
• CPC powder coat finish resists chipping and rust for long service life in harsh environments
• Aluminum body 6-vane air motor available for motor-driven operation

Compatibility

Designed for use with 2-inch ID, 2-9/16-inch OD hose up to 115 feet in length. Intended for stationary and mobile industrial service applications requiring high-volume, large-diameter hose management.

Installation Notes

Installation is typically performed by industrial service technicians or qualified tradespeople familiar with large-bore hose systems and mechanical mounting. Ensure the mounting surface can support the reel weight of 203 pounds plus the fully loaded hose before securing. Shut off all fluid or air supply and relieve line pressure completely before connecting or disconnecting hose. Follow all applicable site safety and equipment codes for the specific fluid or gas being conveyed.

Technical Specifications

• Hose ID: 2 inches
• Hose OD: 2-9/16 inches
• Hose Capacity: 115 feet
• Frame Material: 12-gauge welded steel
• Swivel Material: Electroless nickel-plated steel
• Finish: CPC powder coat
• Weight: 203 pounds
• Length: 36 inches
• Width: 36 inches
• Height: 36 inches
• UPC: 674255833517

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1195-2032-AB
