Coxreels 1195-1728-H Hose Reel 2 Inch Id 60 Ft

Product Description

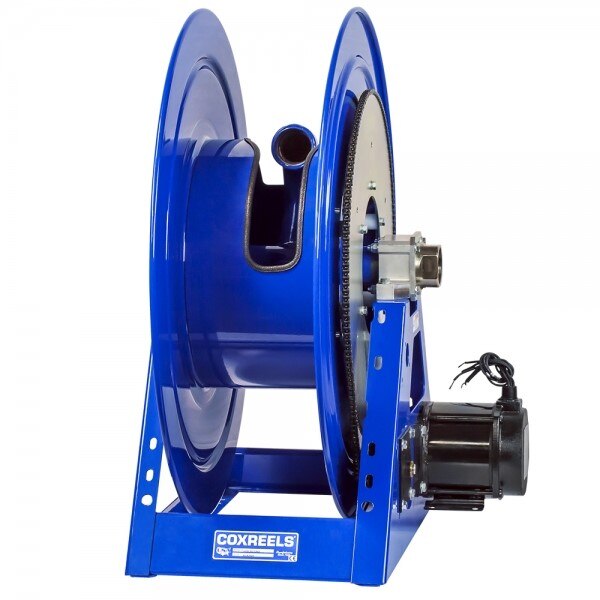

The COXREELS 1195-1728-H is a heavy-duty industrial hose reel from the 1195 Series, engineered for high-volume fluid delivery applications that require long runs of large-diameter hose. Built around a 2-inch ID hose path, this reel accommodates up to 60 feet of hose and features an exclusive low-profile outlet riser with an open drum slot design that keeps hose wrap flat and non-crimping. The all-welded 12-gauge steel A-frame base and CNC robotically spun ribbed discs deliver structural rigidity capable of supporting the reel's 140-pound working weight. A hydraulic motor drive option and in-line swivel round out the build for demanding mobile and stationary installations.

The 1195-1728-H is suited for industrial, commercial, and mobile applications where high flow rates and large-diameter hose management are required. Typical uses include hydraulic fluid transfer, heavy-duty water delivery, and industrial process fluid handling in shop, fleet, or field environments. The open drum design and smooth hose wrap characteristics make it practical in applications where hose condition and service life are critical. Licensed technicians and industrial maintenance professionals are the primary installers of this equipment.

Key Features

• 2-inch ID hose path handles large-diameter hose for high-volume flow delivery
• Low-profile outlet riser and open drum slot prevent hose crimping and promote flat, smooth wrap
• All-welded one-piece 12-gauge steel A-frame base provides superior structural strength without bolted joints
• CNC robotically spun and ribbed discs with rolled edges for durability and operator safety
• In-line electroless nickel-plated steel full-flow NPT swivel allows seal maintenance and hose replacement without removing the reel from its mount
• Permanently lubricated horizontal surface-mount bearings for smooth rotation under load
• CPC powder coat finish resists chipping and rust for long service life in harsh environments

Compatibility

Designed as an OEM-style replacement or direct-fit unit for industrial and mobile hose management systems requiring a 2-inch ID large-diameter hose reel with hydraulic motor drive capability.

Installation Notes

Installation should be performed by qualified industrial or mechanical technicians familiar with high-pressure fluid systems. Shut off and depressurize all connected fluid lines before mounting or servicing the reel. The base mounting pattern is integrated into the steel frame for straightforward fastening to mobile or stationary surfaces. Verify that mounting hardware and surface load ratings are appropriate for the 140-pound reel weight plus hose and fluid load before placing in service.

Technical Specifications

• Hose ID: 2 inches
• Hose Capacity: 60 feet
• Length: 44 inches
• Width: 28 inches
• Height: 34 inches
• Weight: 140 pounds
• Frame Material: 12-gauge steel, all-welded
• Swivel Material: Electroless nickel-plated steel
• Drive Type: Hydraulic motor
• Finish: CPC powder coat
• UPC: 674255833302

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1195-1728-H
