Coxreels 1195-1728-C Hose Reel 2 Inch Id 60 Ft

Product Description

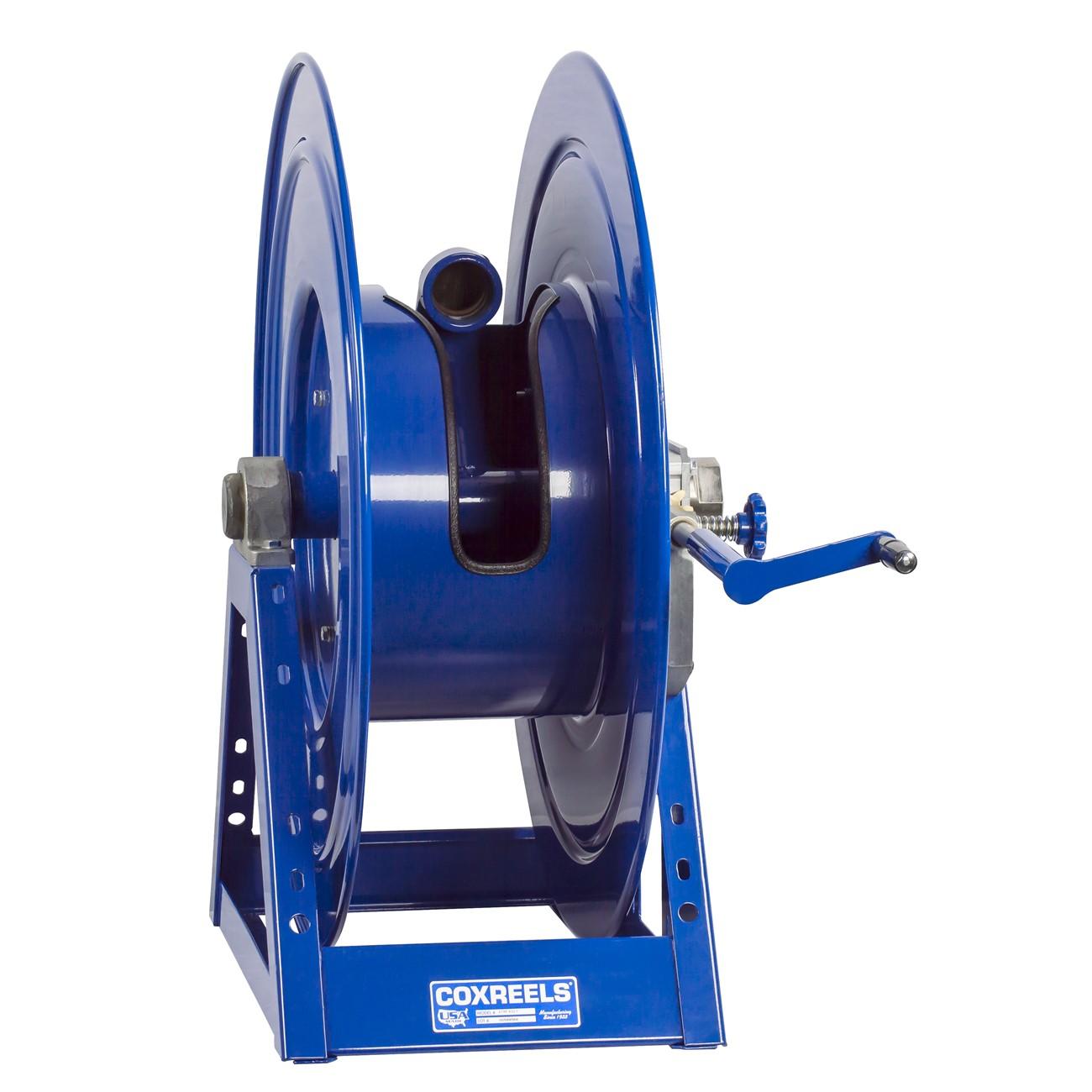

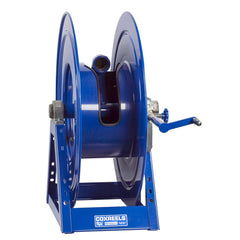

The COXREELS 1195-1728-C is a heavy-duty hose reel from the 1195 Series, engineered for high-volume fluid delivery using long runs of large-diameter hose. Built on an all-welded CNC robotically welded 12-gauge steel A-frame base, this reel is available in hand crank and motor-driven configurations. The 2-inch ID inlet and 2 9/16-inch OD drum accommodates up to 60 feet of large-diameter hose. An exclusive low-profile outlet riser and open drum slot design ensures a non-crimping, flat hose wrap, protecting hose integrity under heavy use. Permanently lubricated horizontal bearings support smooth rotation even under the added weight of extended hose capacity. Licensed contractors and industrial service technicians are the typical installers.

The 1195-1728-C is suited for demanding applications requiring high flow rates and extended hose lengths, including industrial fluid transfer, mobile service trucks, wash-down systems, and heavy-duty field maintenance operations. The open drum design and low-profile outlet riser make it equally effective in fixed-mount and mobile installations. Its robust construction handles the extra weight and mechanical stress common in mobile or high-cycle environments without compromising rotation ease or hose condition.

Key Features

• Low-profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap
• All CNC robotically welded one-piece 12-gauge steel A-frame base for superior structural strength
• In-line electroless nickel-plated steel full-flow NPT swivel for simple seal maintenance without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Permanently lubricated horizontal surface-mount bearings for easy, consistent rotation
• CPC powder coat finish provides chip resistance and rust inhibition for long service life
• Front bevel-geared crank for efficient mechanical hose retraction

Compatibility

Designed as an OEM-style replacement or direct-fit unit within the COXREELS 1195 Series, compatible with 2-inch ID large-diameter hose applications up to 60 feet in length.

Installation Notes

Installation is typically performed by industrial maintenance technicians or licensed contractors familiar with high-flow hose reel systems. Shut off all fluid supply and relieve system pressure completely before mounting or servicing the reel. Secure the A-frame base to a structurally adequate surface using the integrated mounting pattern locations. Follow applicable local codes and manufacturer guidelines for swivel connection torque and fluid compatibility.

Technical Specifications

• Hose ID: 2 inches
• Hose OD: 2 9/16 inches
• Hose Length Capacity: 60 feet
• Frame Material: 12-gauge steel, CNC robotically welded
• Swivel Material: Electroless nickel-plated steel
• Finish: CPC powder coat
• Length: 44 inches
• Width: 28 inches
• Height: 34 inches
• Weight: 137 pounds
• Drive Type: Hand crank and motor driven
• UPC: 674255833296

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1195-1728-C
