Coxreels 1195-1728-C-BUXX Hose Reel 2 Inch Id Steel

Product Description

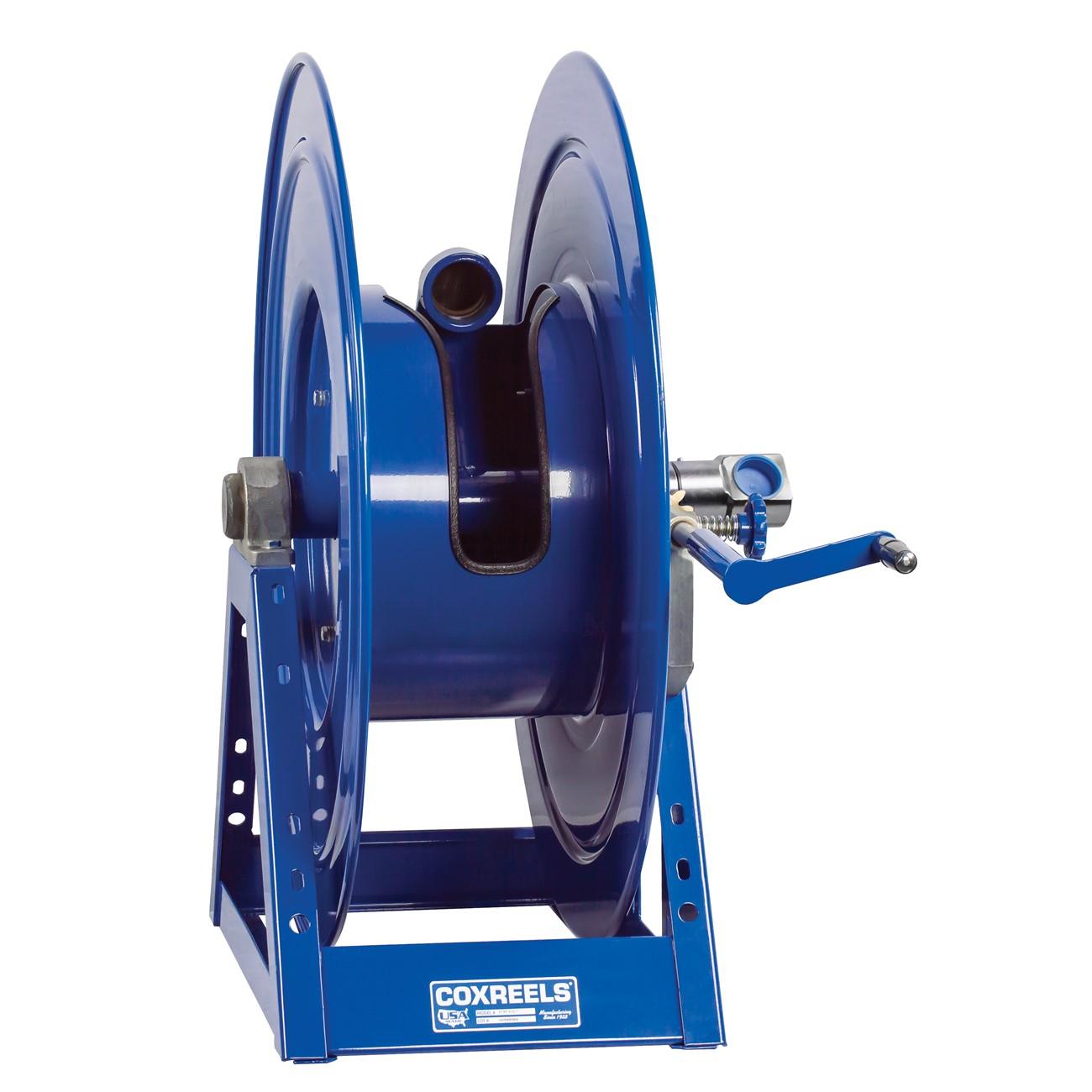

The COXREELS 1195-1728-C-BUXX is a heavy-duty industrial hose reel from the 1195 Series, built for hand crank and motor-driven operation with large-diameter, high-volume hose runs. The reel features an all-welded steel A-frame base, CNC robotically spun and ribbed discs, and an exclusive low-profile outlet riser with an open drum slot design that keeps hose wrap flat and non-crimping. Weighing 137 pounds and measuring 44 inches long by 28 inches wide by 34 inches tall, this unit is engineered for demanding fixed and mobile applications where structural rigidity and flow volume are priorities. Licensed HVAC, plumbing, and industrial service technicians are the primary installers.

The 1195-1728-C-BUXX is designed for applications requiring long hose lengths and large-diameter delivery, including industrial fluid transfer, mobile service equipment, and high-volume wash-down or fuel dispensing setups. The 2-inch ID inlet accommodates high-flow hose configurations, and the open drum design supports extended hose lengths without performance compromise. The sturdy all-welded base handles the extra weight of large-bore hose assemblies, making this reel suitable for both permanent mounting and demanding mobile service environments.

Key Features

• Exclusive low-profile outlet riser and open drum slot design prevents hose crimping and promotes flat, even wrap
• CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and operator safety
• One-piece all-CNC robotically welded 12-gauge steel A-frame base — not bolted — for superior structural integrity
• Electroless nickel-plated steel 90-degree full-flow NPT swivel with ball bearings for fast hose installation without removing the reel from its mount
• Permanently lubricated horizontal surface-mount bearings for consistent, low-effort rotation
• CPC powder coat finish provides long-lasting chip resistance and rust inhibition
• Front bevel-geared crank for easy mechanical hose retraction

Compatibility

Designed as an OEM-specification replacement and direct-fit unit within the COXREELS 1195 Series for large-diameter hose reel applications requiring a 2-inch ID inlet configuration.

Installation Notes

Installation is typically performed by licensed plumbing, mechanical, or industrial service technicians. Shut off all fluid supply and depressurize the hose assembly completely before mounting or connecting the reel. Secure the A-frame base to a structural surface using the integrated mounting pattern in the steel base. Verify all NPT swivel connections are properly sealed with thread sealant appropriate for the media being conveyed before returning the system to service.

Technical Specifications

• Hose ID: 2 inches
• Hose OD: 2.5625 inches
• Frame Material: 12-gauge welded steel
• Length: 44 inches
• Width: 28 inches
• Height: 34 inches
• Weight: 137 pounds
• Finish: CPC powder coat
• Swivel Material: Electroless nickel-plated steel
• UPC: 674255854376
• Unit of Measure: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1195-1728-C-BUXX
