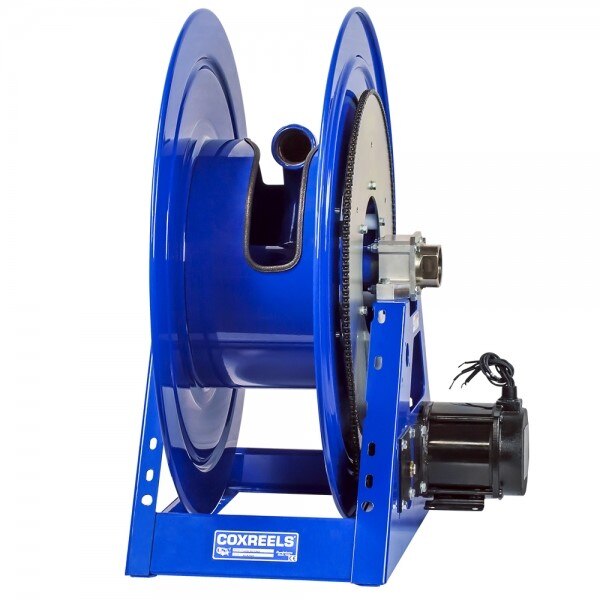

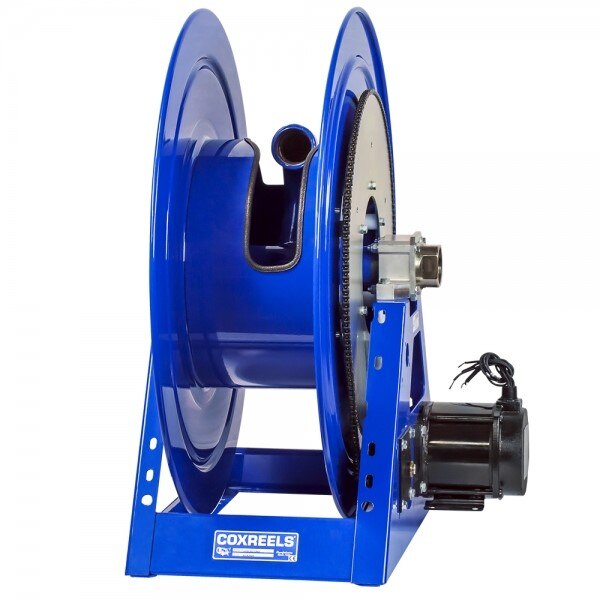

Coxreels 1195-1728-AB Hose Reel 2 Inch Id 60 Ft

Product Description

The COXREELS 1195-1728-AB is a heavy-duty hand crank and motor driven hose reel from the 1195 Series, built to manage long lengths of large-diameter hose in high-volume delivery applications. The reel features a 2 inch inner diameter hose path and accommodates up to 60 feet of hose. It ships at 141 pounds, reflecting its all-welded steel construction. An exclusive low-profile outlet riser and open drum design keep hose wraps flat and non-crimping, protecting hose integrity under repeated use. Licensed HVAC, plumbing, and industrial service technicians working with large-bore fluid or air systems will find this reel suited to both fixed and mobile mounting configurations.

The 1195-1728-AB is intended for industrial and commercial service environments where high flow rates and large-diameter hose runs are required. Its open drum slot design supports smooth layering of 2 inch ID hose across extended lengths without kinking or binding. The all-welded A-frame base and permanent lubricated bearings make this reel a practical choice for demanding mobile applications such as truck-mounted service rigs, wash-down stations, and large-volume fluid transfer setups. The unit ships as a single assembly and mounts via the integrated steel base mounting pattern.

Key Features

• Low-profile outlet riser and open drum slot design for flat, non-crimping hose wrap
• Inline electroless nickel plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• One-piece all-welded 12 gauge steel A-frame base with integrated mounting pattern for secure installation and easy removal
• Permanently lubricated horizontal surface mount bearings for smooth, low-effort rotation
• CPC powder coat finish for chip resistance and rust inhibition; aluminum body air 6-vane motor included

Compatibility

Designed as an OEM-style replacement and direct-fit unit within the COXREELS 1195 Series, suitable for hand crank or motor driven large-diameter hose reel applications requiring 2 inch ID hose capacity.

Installation Notes

Installation should be performed by a qualified technician familiar with industrial hose reel mounting requirements. Shut off all fluid or air supply and relieve line pressure fully before mounting or connecting the reel. Secure the unit to a structurally adequate surface using the integrated base mounting pattern, following applicable facility or vehicle mounting codes. Inspect the NPT swivel connection and all fittings for proper thread engagement before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 2 inches
• Hose Outer Diameter: 2.5625 inches
• Hose Capacity: 60 feet
• Unit Weight: 141 pounds
• Length: 44 inches
• Width: 28 inches
• Height: 34 inches
• Frame Material: 12 gauge welded steel
• Finish: CPC powder coat
• Swivel Material: Electroless nickel plated steel
• UOM: Each
• UPC: 674255833258

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1195-1728-AB
