Coxreels 1195-1728-AB-BUXX Hose Reel 2 Inch Id Steel

Product Description

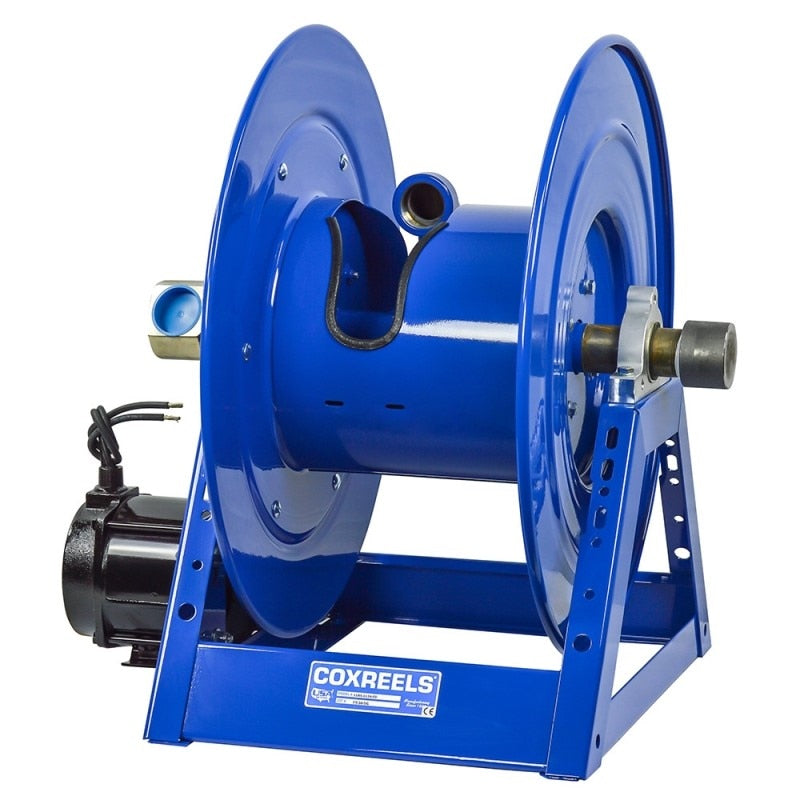

The COXREELS 1195-1728-AB-BUXX is a heavy-duty hand crank and motor-driven hose reel built for high-volume fluid delivery through large-diameter hose runs. It features a 2 inch inner diameter inlet passage and an all-welded steel A-frame base that keeps the unit rigid under the substantial load of a fully loaded large-bore hose. The unit ships at 142 pounds, reflecting the robust construction throughout. A low-profile outlet riser and open drum slot design eliminate hose crimping, maintaining consistent flow and protecting hose integrity. Licensed HVAC technicians, industrial maintenance crews, petroleum service operators, and other trade professionals working with high-flow hose systems rely on this class of reel for both fixed and mobile applications.

The 1195-1728-AB-BUXX is suited for industrial and commercial installations where long hose runs and large hose diameters are required for increased volume delivery. The open drum design accommodates long lengths of 2 inch ID hose, making it appropriate for fuel transfer, water delivery, hydraulic service, and similar demanding trade applications. The reel is rated for mobile use as well, with a mounting pattern integrated into the base for straightforward installation and removal on service vehicles or fixed stations. The overall footprint measures 44 inches in length, 28 inches in width, and 34 inches in height.

Key Features

• Electroless nickel-plated steel 90-degree full-flow NPT swivel with ball bearings for fast hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for greater strength, hose protection, and operator safety
• Exclusive low-profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap
• One-piece CNC robotically welded 12-gauge steel A-frame base with integrated mounting pattern for secure, easy installation and detachment
• Permanently lubricated horizontal surface-mount bearings for smooth, low-effort rotation
• CPC powder coat finish resists chips and rust for long service life; front bevel-geared crank enables easy mechanical retraction

Compatibility

Designed as an OEM-style replacement and direct-fit reel for industrial and commercial large-diameter hose systems requiring a 2 inch ID connection in fixed or mobile service configurations.

Installation Notes

Installation is typically performed by qualified industrial maintenance technicians or trade professionals familiar with high-flow fluid handling equipment. Shut off all pressure to the hose circuit and depressurize the line fully before connecting or disconnecting the swivel fitting. Use the integrated base mounting pattern and appropriate fasteners rated for the reel weight of 142 pounds. Follow applicable site safety codes and equipment manufacturer guidelines for mounting on service vehicles or fixed structures.

Technical Specifications

• Hose Inner Diameter: 2 inches
• Hose Outer Diameter: 2.5625 inches (2 9/16 inches)
• Frame Material: 12-gauge welded steel
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Swivel: Electroless nickel-plated steel, 90-degree full-flow NPT with ball bearings
• Length: 44 inches
• Width: 28 inches
• Height: 34 inches
• Weight: 142 pounds
• UPC: 674255860049

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1195-1728-AB-BUXX
