Coxreels 1195-1332-C Hose Reel 2 Inch Id 75 Ft

Product Description

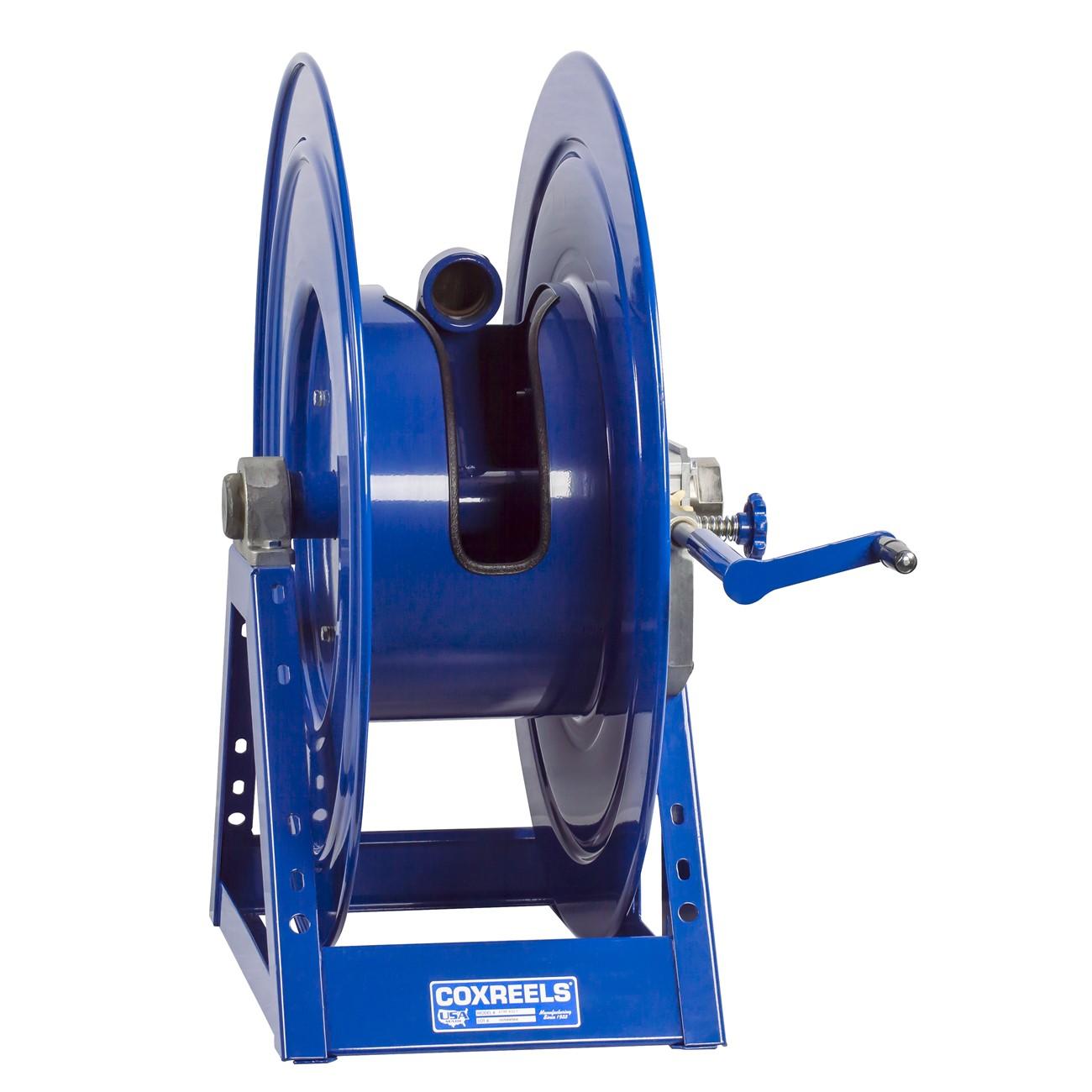

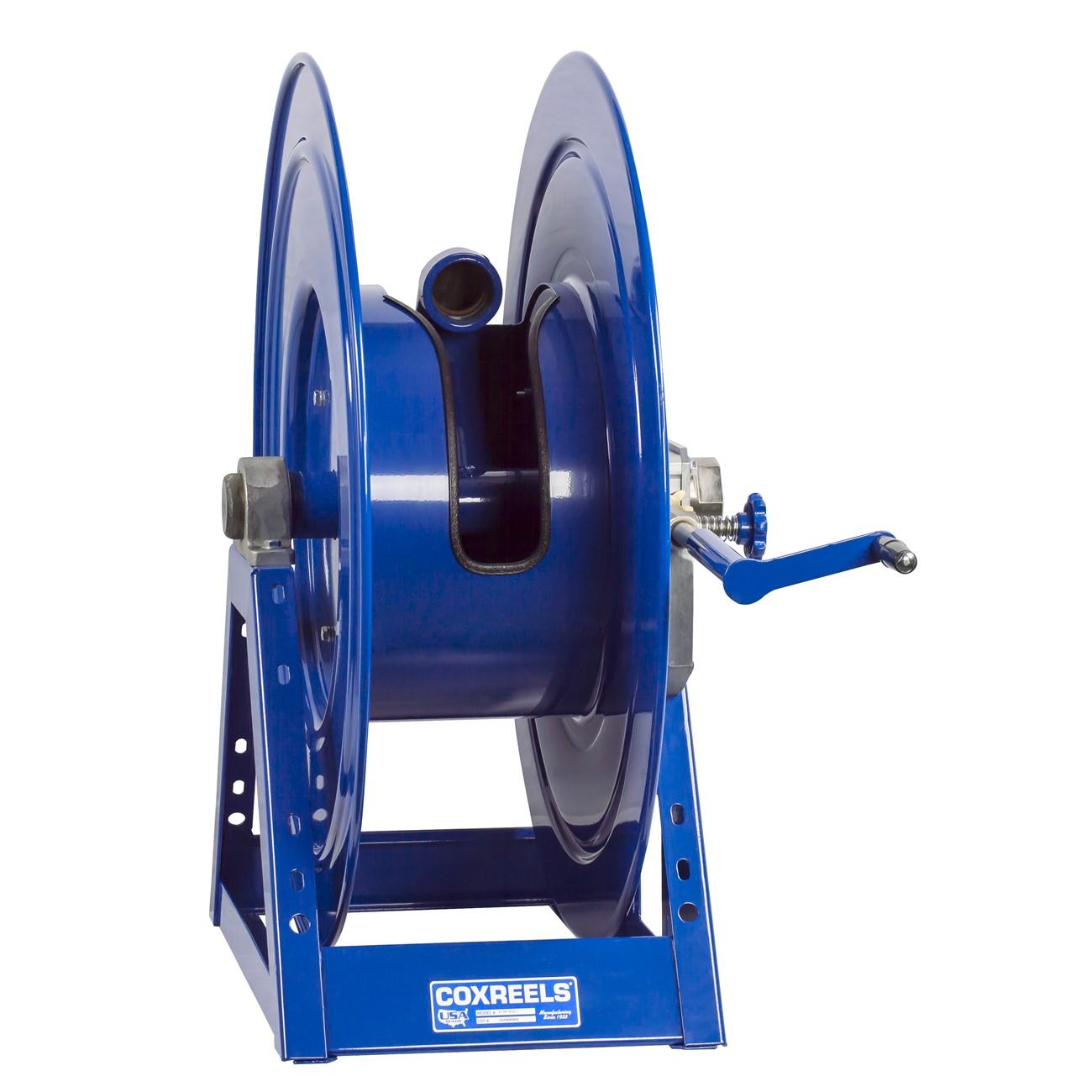

The COXREELS 1195-1332-C is a heavy-duty hand crank and motor-driven hose reel built for high-volume fluid delivery through large-diameter hose. Part of the 1195 Series, it features a 2-inch inner diameter and accommodates up to 75 feet of hose. The open drum design and exclusive low-profile outlet riser promote a non-crimping, flat hose wrap that protects hose integrity under repeated use. An all-welded 12-gauge steel A-frame base provides the structural rigidity needed to support the extra weight of large-bore hose in both stationary and mobile applications. Licensed contractors and industrial service technicians are the primary installers.

This reel is suited for industrial, commercial, and mobile service applications where long runs of large-diameter hose are required for increased flow volume. The mounting pattern is integrated into the steel base, simplifying installation and detachment in field environments. The front bevel-geared crank allows for mechanical retraction without power. Its robust construction makes it appropriate for demanding job sites, service trucks, and facility maintenance operations where frequent deployment and retraction cycles are expected.

Key Features

• Full-flow in-line electroless nickel-plated steel NPT swivel enables simple seal maintenance without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Low-profile outlet riser and open drum slot design delivers a non-crimping, flat smooth hose wrap
• One-piece all-welded 12-gauge steel A-frame base with integrated mounting pattern for secure installation and easy removal
• Permanently lubricated horizontal surface-mount bearings for smooth, low-effort rotation
• CPC powder coat finish resists chips and rust for long service life in harsh environments

Compatibility

Designed for use with 2-inch inner diameter hose up to 75 feet in length; suitable for hand crank or motor-driven operation in industrial and mobile service configurations.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid handling equipment and the applicable application requirements. Depressurize and drain all connected lines before mounting or servicing the reel. Secure the A-frame base to a flat, structurally adequate surface using the integrated mounting pattern. Verify that all swivel connections and hose fittings are properly torqued and leak-tested before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 2 inches
• Hose Outer Diameter: 2.5625 inches
• Hose Capacity: 75 feet
• Frame Material: 12-gauge steel, all-welded construction
• Swivel Material: Electroless nickel-plated steel
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 29.5 inches
• Width: 36 inches
• Height: 36 inches
• Weight: 151 pounds
• UPC: 674255836532

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1195-1332-C
