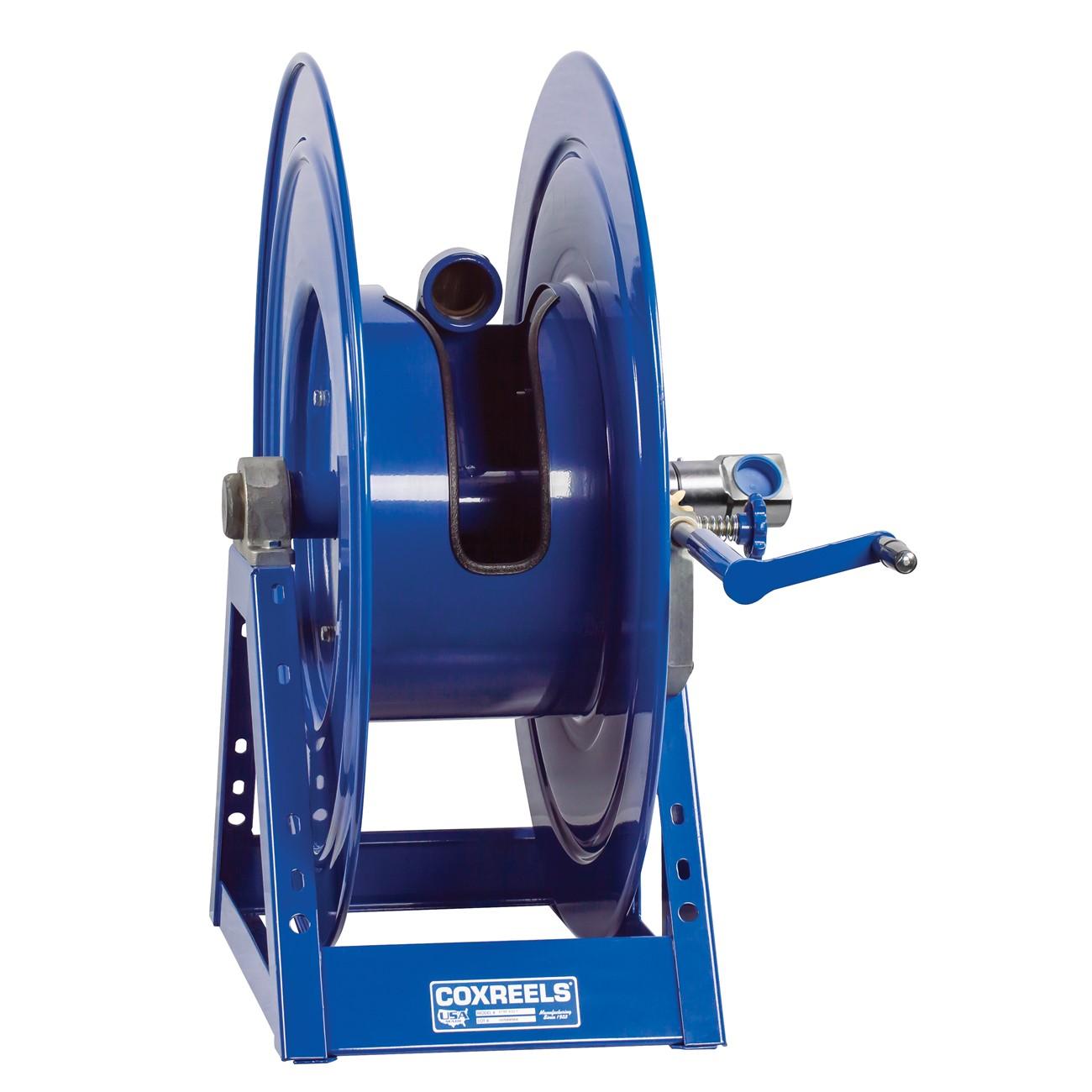

Coxreels 1195-1332-C-BUXX Hose Reel 2 Inch Id Steel

Product Description

The COXREELS 1195-1332-C-BUXX is a heavy-duty hose reel from the 1195 Series, built for hand crank and motor-driven operation on long runs of large-diameter hose. Weighing 151 pounds and measuring 29.5 inches in length by 36 inches wide by 36 inches tall, this all-steel unit is engineered to move high volumes of fluid without compromising hose integrity. The exclusive low-profile outlet riser and open drum slot design keep hose wrap flat and non-crimping across the full length of the reel. Licensed plumbers, industrial maintenance crews, and fleet service technicians are the primary installers of this unit.

The 1195-1332-C-BUXX is suited for demanding industrial and mobile applications where large-bore hose management is required. Its all-welded steel A-frame base handles the added weight of long, heavy hose without flex or fatigue. The open drum design accommodates a 2-inch ID hose, making it appropriate for high-volume fluid transfer in commercial service, mobile lube operations, and heavy equipment maintenance yards. The sturdy frame includes a built-in mounting pattern in the base for fast installation and removal from service vehicles or stationary platforms.

Key Features

• Electroless nickel-plated steel 90-degree full-flow NPT swivel with ball bearings allows hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• Low-profile outlet riser and open drum slot design prevent hose crimping and ensure a flat, smooth wrap
• One-piece all-welded 12-gauge steel A-frame base provides superior reel structure without bolted connections
• Permanently lubricated horizontal surface-mount bearings enable smooth, easy rotation under load
• CPC powder coat finish resists chips and rust; front bevel-geared crank provides mechanical retraction assistance

Compatibility

Designed for use with 2-inch ID large-diameter hose in hand crank and motor-driven configurations as part of the COXREELS 1195 Series platform.

Installation Notes

Installation should be performed by a qualified mechanic or industrial maintenance technician familiar with large-diameter fluid handling systems. Depressurize and drain the hose assembly completely before mounting or servicing the reel. Secure the reel to a flat, load-rated surface using the mounting pattern in the steel base, and verify all swivel and hose connections are leak-free before returning the system to service. Follow applicable facility or vehicle safety protocols when working on pressurized fluid delivery equipment.

Technical Specifications

• Hose ID: 2 inches
• Hose OD: 2.5625 inches (2-9/16 inches)
• Length: 29.5 inches
• Width: 36 inches
• Height: 36 inches
• Weight: 151 pounds
• Frame Material: 12-gauge steel, all-welded A-frame
• Swivel Material: Electroless nickel-plated steel
• Finish: CPC powder coat
• UPC: 674255854277

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1195-1332-C-BUXX
