Coxreels 1195-1332-AB Hose Reel 2 Inch Id 75 Ft

Product Description

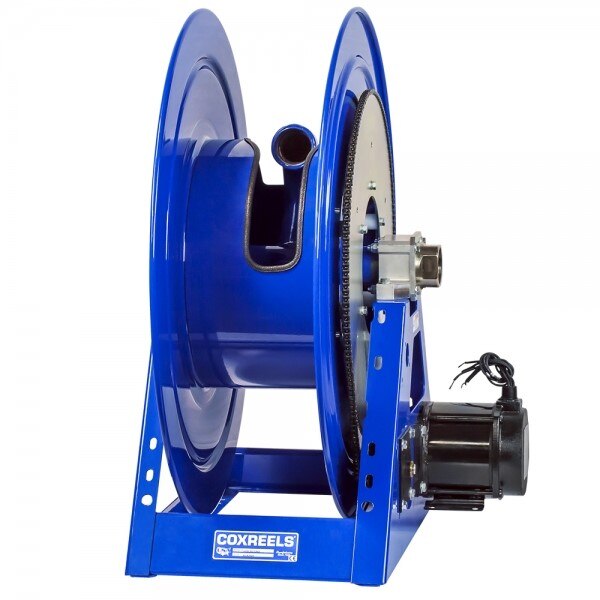

The COXREELS 1195-1332-AB is a heavy-duty hand crank and motor driven hose reel from the 1195 Series, engineered for high-volume fluid delivery using long runs of large-diameter hose. It features a 2 inch inner diameter hose path and accommodates up to 75 feet of hose. The all-welded steel A-frame base, CNC robotically spun ribbed discs, and low-profile outlet riser work together to prevent hose crimping and ensure a flat, smooth wrap under load. This reel is built for demanding environments including mobile applications. Licensed HVAC technicians, industrial mechanics, and fleet service professionals are the typical installers.

The 1195-1332-AB is suited for commercial and industrial applications requiring delivery of high volumes through large-bore hose. Its open drum slot design and low-profile outlet riser make it a practical choice for fixed or mobile installations where hose integrity and fast deployment matter. The motor drive option supports locations where manual cranking is impractical. The mounting pattern is integrated into the base, simplifying installation and removal from service vehicles or fixed mounting surfaces.

Key Features

• 2 inch ID hose path supports high-volume fluid delivery
• Accommodates up to 75 feet of large-diameter hose
• Low-profile outlet riser and open drum slot design prevents hose crimping and promotes flat, smooth wrap
• All-welded one-piece 12-gauge steel A-frame base — no bolted joints — for superior structural integrity
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• In-line electroless nickel plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing reel from mount
• CPC powder coat finish provides chip resistance and rust inhibition; permanently lubricated horizontal surface mount bearings ease rotation

Compatibility

Designed as a replacement or new-installation hose reel for commercial and industrial systems requiring a 2 inch ID hose connection with hand crank or motor drive capability.

Installation Notes

Installation should be performed by a qualified mechanic or industrial service technician familiar with high-pressure hose systems. Depressurize and drain all connected lines before mounting or servicing the reel. Secure the reel to a structurally adequate surface using the integrated base mounting pattern and fasteners rated for the assembly weight of 165 pounds. Verify NPT swivel connections are leak-free before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 2 inches
• Hose Outer Diameter: 2 9/16 inches
• Hose Capacity: 75 feet
• Length: 29.5 inches
• Width: 36 inches
• Height: 36 inches
• Weight: 165 pounds
• Frame Material: 12-gauge welded steel
• Swivel Material: Electroless nickel plated steel
• Finish: CPC powder coat
• Drive Type: Hand crank and motor driven
• UPC: 674255833470

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1195-1332-AB
