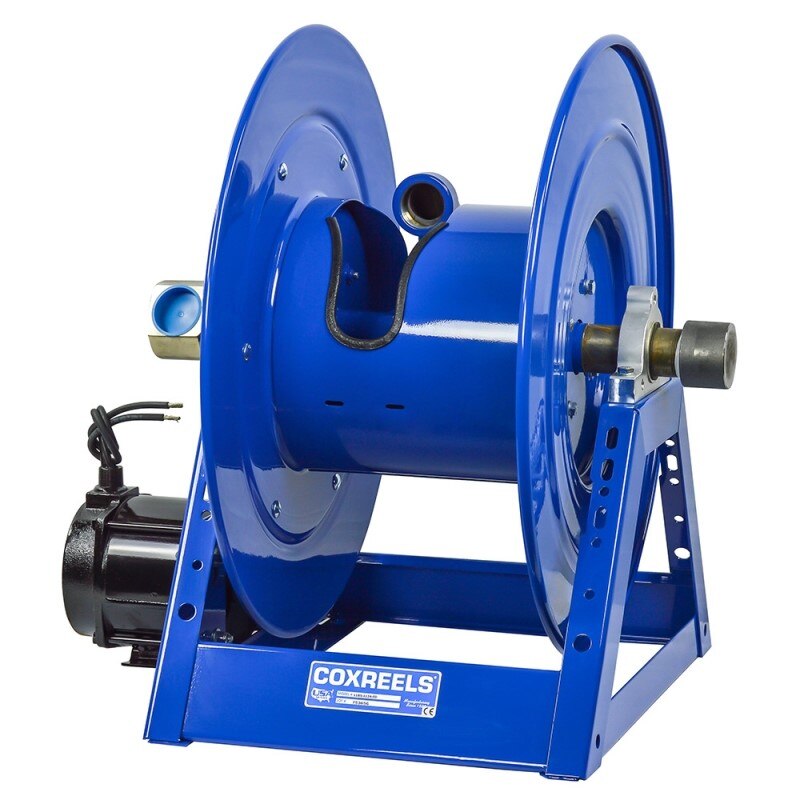

Coxreels 1195-1332-AB-BUXX Hose Reel 2 in Id Steel

Product Description

The COXREELS 1195-1332-AB-BUXX is a heavy-duty hose reel from the 1195 Series, built for hand crank and motor-driven operation with large-diameter, high-volume hose applications. It features a 2-inch ID and 2 9/16-inch OD hose path, an all-welded steel A-frame base, and an exclusive low-profile outlet riser with an open drum slot design that delivers a non-crimping, flat smooth hose wrap. Weighing 156 pounds and measuring 29.5 inches long by 36 inches wide by 36 inches tall, this reel is engineered to carry the load of long, large-diameter hose runs without compromising structural integrity. Licensed contractors and industrial service technicians install this unit in fixed and mobile service environments.

The 1195-1332-AB-BUXX is suited for demanding applications that require extended hose lengths and high-volume fluid delivery. Its open drum design and CNC-spun discs make it appropriate for industrial, commercial, and heavy-duty mobile service installations where hose protection and operator safety are priorities. The welded steel A-frame base includes a mounting pattern for secure, repeatable installation and easy removal when servicing mobile rigs or shop setups.

Key Features

• Electroless nickel-plated steel 90-degree full-flow NPT swivel with ball bearings for fast hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for increased strength, hose protection, and operator safety
• Exclusive low-profile outlet riser and open drum slot design prevents hose crimping and ensures a flat, smooth wrap
• One-piece fully CNC robotically welded 12-gauge steel A-frame base with integrated mounting pattern for easy installation and detachment
• Permanently lubricated horizontal surface-mount bearings for smooth, low-effort rotation
• CPC powder coat finish resists chips and rust; front bevel-geared crank enables easy mechanical retraction

Compatibility

Designed as an OEM-style replacement and direct fitment within the COXREELS 1195 Series for large-diameter hose reel applications requiring a 2-inch ID connection path.

Installation Notes

Installation is typically performed by industrial maintenance technicians or mobile service professionals. Shut off all fluid supply and relieve system pressure before mounting or connecting hose. The integrated base mounting pattern requires secure fastening to a flat, load-rated surface capable of supporting the reel weight plus hose and fluid load. Follow applicable OSHA and facility safety standards for fluid handling equipment installation.

Technical Specifications

• Hose ID: 2 inches
• Hose OD: 2 9/16 inches
• Frame Material: 12-gauge steel
• Length: 29.5 inches
• Width: 36 inches
• Height: 36 inches
• Weight: 156 pounds
• Finish: CPC powder coat
• Swivel Material: Electroless nickel-plated steel
• UPC: 674255866706

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1195-1332-AB-BUXX
