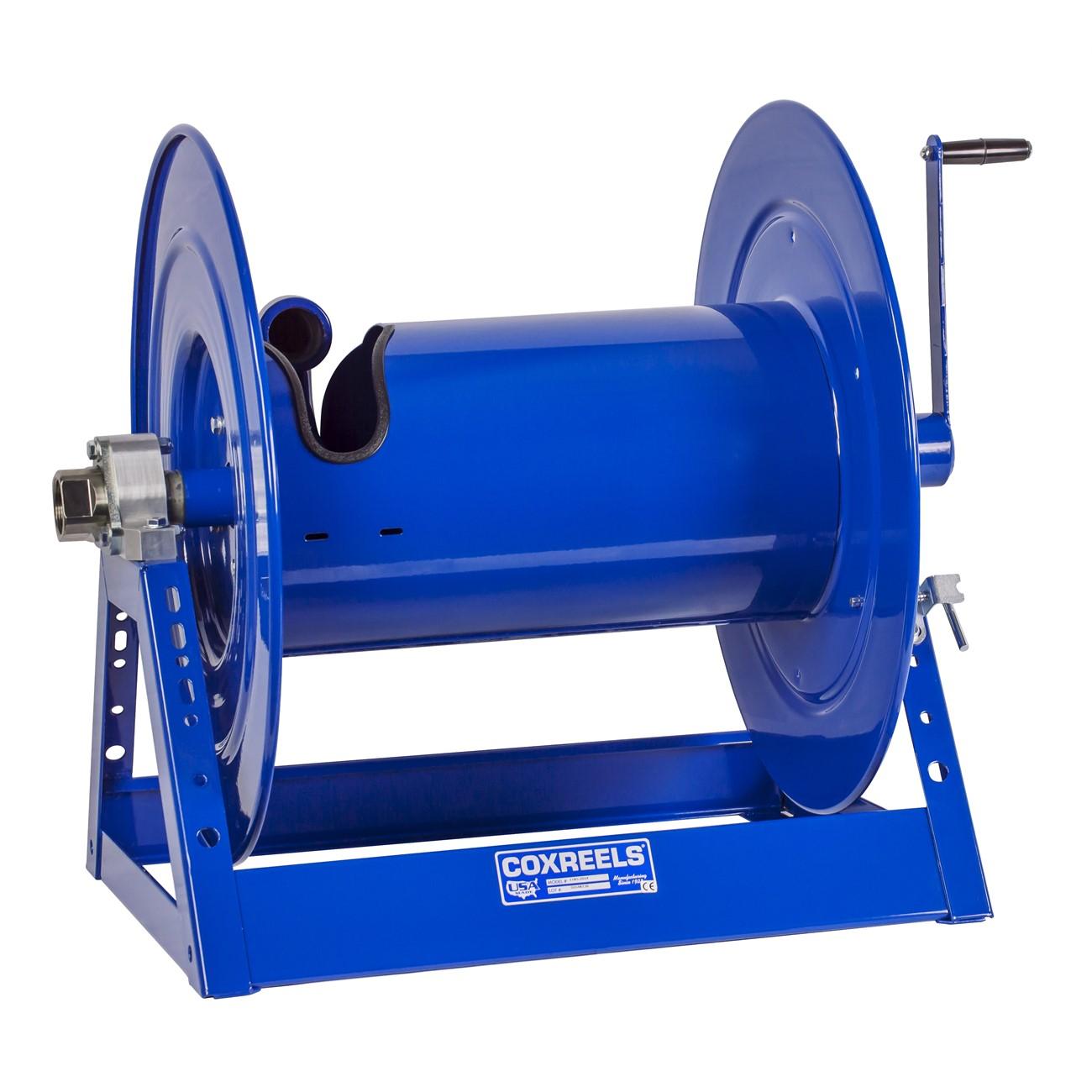

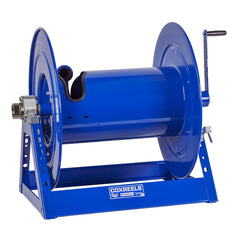

Coxreels 1185-3328 Hose Reel 1.5 in Id 250 Ft Hand Crank

Product Description

The COXREELS 1185-3328 is a heavy-duty hand crank hose reel built to handle long lengths of large-diameter hose for high-volume delivery applications. Part of the 1185 Series, it features a 1.5-inch inner diameter hose path and accommodates up to 250 feet of hose. The reel weighs 169 pounds and measures 49 inches long by 32 inches wide by 32 inches tall, reflecting its robust all-welded steel construction. Licensed HVAC technicians, plumbers, industrial service crews, and mobile equipment operators install this reel where large-bore hose management and reliable retraction are required.

The 1185-3328 is suited for commercial and industrial environments where long hose runs and high flow volumes are routine. Its direct hand crank and locking pin make it practical for mobile applications such as service trucks, trailers, and fixed service bays. The open drum design and low-profile outlet riser promote a flat, non-crimping hose wrap that protects hose integrity over repeated use cycles. The all-welded A-frame base handles the considerable weight of large-diameter hose without flex or fatigue.

Key Features

• In-line electroless nickel-plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, hose protection, and operator safety
• Exclusive low-profile outlet riser and open drum slot design delivers a non-crimping, flat smooth hose wrap
• One-piece all-CNC robotically welded 12-gauge steel A-frame base with integrated mounting pattern for secure installation and easy removal
• Permanently lubricated horizontal surface-mount bearings for smooth rotation under load
• CPC powder coat finish provides chip resistance and rust inhibition; long-handled locking pin secures reel position; direct hand crank enables mechanical retraction

Compatibility

Designed as an OEM-style fit within the COXREELS 1185 Series for applications requiring large-diameter, long-length hose reel management in mobile or fixed service installations.

Installation Notes

Installation is typically performed by mechanical or industrial service technicians using standard hand tools. Mount the A-frame base to a rigid surface capable of supporting the reel weight plus the weight of a fully loaded hose. Relieve all system pressure and drain the hose completely before servicing the swivel or making any hose connections. Verify that the mounting fasteners engage all base mounting-pattern locations to prevent reel movement under load.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Capacity: 250 feet
• Unit Weight: 169 pounds
• Length: 49 inches
• Width: 32 inches
• Height: 32 inches
• Frame Material: 12-gauge welded steel
• Swivel Material: Electroless nickel-plated steel
• Finish: CPC powder coat
• Retraction Type: Direct hand crank
• Mounting Style: Horizontal surface mount
• UPC: 674255833616

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-3328
