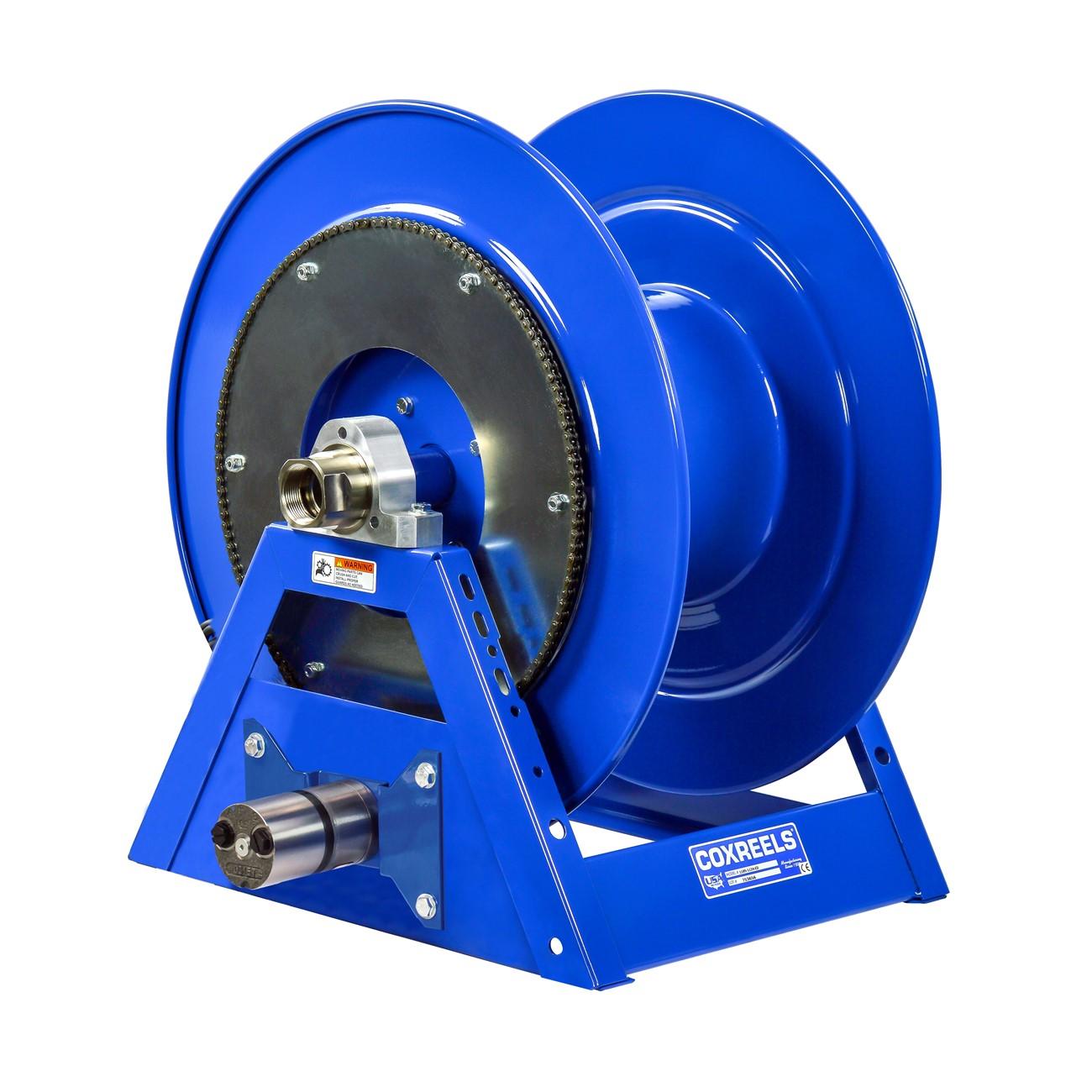

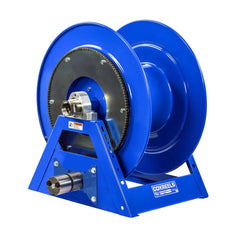

Coxreels 1185-3328-H Hose Reel 1.5 in Id 250 Ft

Product Description

The COXREELS 1185-3328-H is a large-capacity hose reel from the 1185 Series, built for high-volume fluid delivery in demanding industrial and mobile applications. It accepts hose with a 1.5-inch inner diameter and a 2.0625-inch outer diameter, handling up to 250 feet of large-diameter hose. The reel is driven by a hydraulic motor and features an all-welded 12-gauge steel A-frame base for structural integrity under heavy loads. CNC robotically spun and ribbed discs, an exclusive low-profile outlet riser, and an open drum slot design work together to deliver a non-crimping, flat smooth hose wrap. Licensed plumbers, hydraulic system technicians, and industrial service crews are the primary installers.

The 1185-3328-H is suited for high-flow applications where long hose runs and large hose diameters are required. Typical use cases include industrial fluid transfer, mobile service trucks, wash-down stations, and similar scenarios that demand reliable hose management over extended lengths. The open drum design and low-profile outlet riser make it well-suited for environments where hose integrity and quick deployment are priorities. The reel weighs 177 pounds, so permanent or semi-permanent mounting on a reinforced surface or vehicle chassis is the standard approach.

Key Features

• Hydraulic motor drive for powered hose retrieval on high-volume applications
• Low-profile outlet riser and open drum slot deliver a non-crimping, flat smooth hose wrap
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• All-welded one-piece 12-gauge steel A-frame base resists racking and flexing under heavy hose loads
• In-line electroless nickel-plated steel full-flow NPT swivel allows seal maintenance without removing the reel from its mount
• Permanently lubricated horizontal surface-mount bearings for smooth rotation
• CPC powder coat finish provides chip resistance and rust inhibition

Compatibility

Designed for use with hose having a 1.5-inch inner diameter and a 2.0625-inch outer diameter at lengths up to 250 feet. Part of the COXREELS 1185 Series of hand crank and motor-driven large-diameter hose reels.

Installation Notes

Installation should be performed by a qualified technician familiar with hydraulic systems and industrial hose reel mounting. Disconnect and depressurize all hydraulic lines before beginning installation or service. At 177 pounds, the reel requires a structurally adequate mount surface; verify that the mounting substrate and fasteners meet the load requirements for the application. Follow all applicable local and federal codes for hydraulic system connections and mobile equipment installations.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Capacity: 250 feet
• Drive Type: Hydraulic motor
• Frame Material: 12-gauge steel, all-welded A-frame
• Swivel Material: Electroless nickel-plated steel
• Finish: CPC powder coat
• Weight: 177 pounds
• Length: 49 inches
• Width: 32 inches
• Height: 32 inches
• UPC: 674255843400

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-3328-H
