Coxreels 1185-3328-EF Hose Reel 1.5 in Id 250 Ft

Product Description

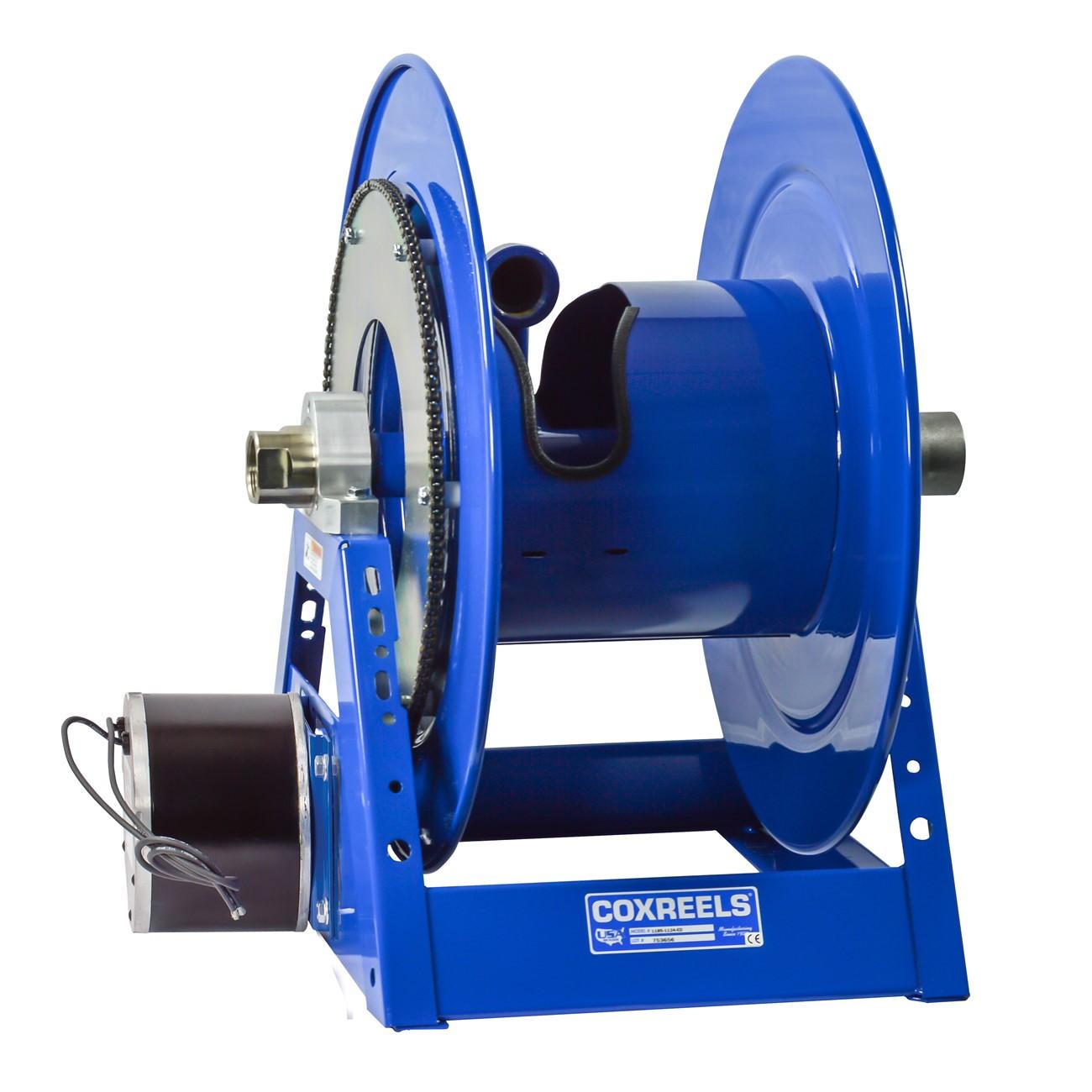

The COXREELS 1185-3328-EF is a large-capacity hose reel from the 1185 Series, engineered for high-volume fluid delivery applications requiring long hose lengths and large hose diameters. It features a 1.5-inch inner diameter hose path and accommodates up to 250 feet of hose. The reel is driven by a 24-volt DC, 1/3 HP reversible electric motor, allowing hands-free operation under load. A CNC-robotically welded 12-gauge steel A-frame base and open drum design provide the structural rigidity needed to support the considerable weight of a fully loaded reel. Licensed HVAC technicians, plumbers, and industrial service professionals are the primary installers and operators of this equipment.

The 1185-3328-EF is built for demanding service environments where large-diameter hose must be deployed and retrieved reliably. The open drum and exclusive low-profile outlet riser design ensure a non-crimping, flat hose wrap across the full 250-foot capacity. Its all-welded steel frame base includes a dedicated mounting pattern for secure installation in fixed or mobile applications, such as service vehicles, shop floors, or equipment bays. The unit ships as a single assembly and is rated for repeated heavy-duty cycling without loss of structural integrity.

Key Features

• 24-volt DC, 1/3 HP reversible electric motor for powered hose deployment and retrieval
• 1.5-inch ID hose path supports high-volume flow rates through large-diameter hose
• Exclusive low-profile outlet riser and open drum slot design prevents hose crimping and maintains a flat, smooth wrap
• CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• One-piece, all-welded 12-gauge steel A-frame base with integrated mounting pattern for fixed or mobile use
• Permanently lubricated horizontal surface-mount bearings and CPC chip-resistant, rust-inhibiting powder coat finish
• In-line electroless nickel-plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount

Compatibility

Designed as an OEM-style large-diameter hose reel for industrial, plumbing, and fluid-transfer applications requiring 1.5-inch ID hose and extended hose lengths up to 250 feet.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid-transfer equipment and low-voltage DC electrical systems. Ensure the 24-volt DC power source is de-energized and the fluid supply is fully shut off before mounting or servicing the reel. The integrated base mounting pattern should be used with appropriately rated fasteners for the mounting surface. On mobile applications, verify that mounting hardware and surface are rated for the unit weight of 182 pounds plus the weight of a fully loaded hose.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Capacity: 250 feet
• Motor Voltage: 24 volts DC
• Motor Output: 1/3 HP reversible
• Frame Material: 12-gauge steel, all-welded
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Swivel Material: Electroless nickel-plated steel
• Unit Length: 49 inches
• Unit Width: 32 inches
• Unit Height: 32 inches
• Weight: 182 pounds
• UPC: 674255852631

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-3328-EF
