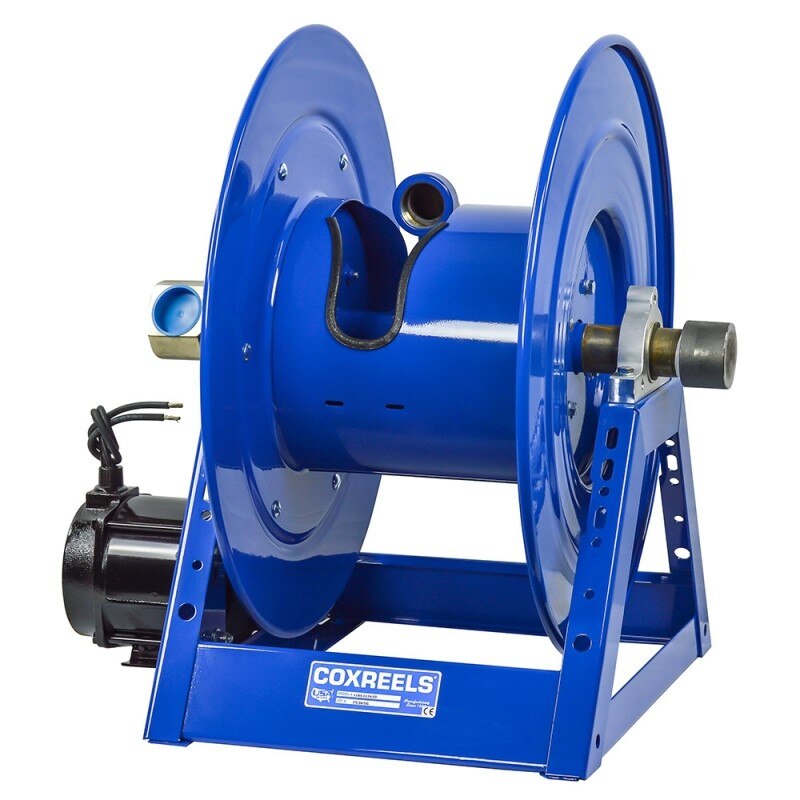

Coxreels 1185-3328-ED-BUXX Large Diameter Hose Reel

Product Description

The COXREELS 1185-3328-ED-BUXX is a motor-driven hose reel from the 1185 Series, built to handle long runs of large-diameter hose for high-volume fluid delivery applications. The reel features a 1.5-inch inner diameter hose path and accepts hose with a 2.0625-inch outer diameter. Power comes from a 12-volt DC, 0.5 HP explosion-proof reversible motor. The all-welded 12-gauge steel A-frame base is CNC robotically fabricated for structural integrity without bolted joints. At 195 pounds, this reel is engineered for demanding mobile and stationary installations where weight capacity and hose protection are critical priorities for professional service technicians.

The 1185-3328-ED-BUXX is suited for industrial, commercial, and mobile service applications requiring the delivery of large volumes of fluid through long hose lengths. The open drum slot design and low-profile outlet riser prevent hose crimping during wrap and payout, making it appropriate for petroleum, water, and compatible chemical transfer operations. The explosion-proof motor designation makes it relevant for environments where flammable vapors may be present. This reel is intended for installation and service by qualified trade professionals familiar with high-flow fluid handling systems.

Key Features

• 12-volt DC, 0.5 HP explosion-proof reversible motor for powered hose retrieval in hazardous-rated environments
• Electroless nickel-plated steel 90-degree full-flow NPT swivel with ball bearings allows hose connection without removing the reel from its mount
• Exclusive low-profile outlet riser and open drum slot design delivers a non-crimping, flat smooth hose wrap
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• One-piece all-welded 12-gauge steel A-frame base with integrated mounting pattern for secure installation and easy detachment
• CPC powder coat finish provides chip resistance and rust inhibition for long service life
• Permanently lubricated horizontal surface-mount bearings for smooth reel rotation

Compatibility

Designed as an OEM-style replacement or direct application fit within the COXREELS 1185 Series for large-diameter hose reel systems requiring motor-driven operation with a 1.5-inch ID hose connection.

Installation Notes

Installation should be performed by a qualified technician familiar with high-flow fluid handling and low-voltage DC electrical systems. Disconnect all power sources and depressurize the hose system before mounting or servicing the reel. Mounting hardware must be sized to support the reel weight of 195 pounds plus the loaded hose assembly. Where explosion-proof ratings are relevant, verify that the installation environment and all connected components meet applicable NEC classifications before energizing the motor.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Motor Voltage: 12 volts DC
• Motor Output: 0.5 HP
• Motor Type: Explosion-proof reversible
• Frame Material: 12-gauge steel, all-welded
• Finish: CPC powder coat
• Length: 49 inches
• Width: 32 inches
• Height: 32 inches
• Weight: 195 pounds
• UPC: 674255857308

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-3328-ED-BUXX
