Coxreels 1185-3328-EB Hose Reel 1.5 in Id 250 Ft Motor

Product Description

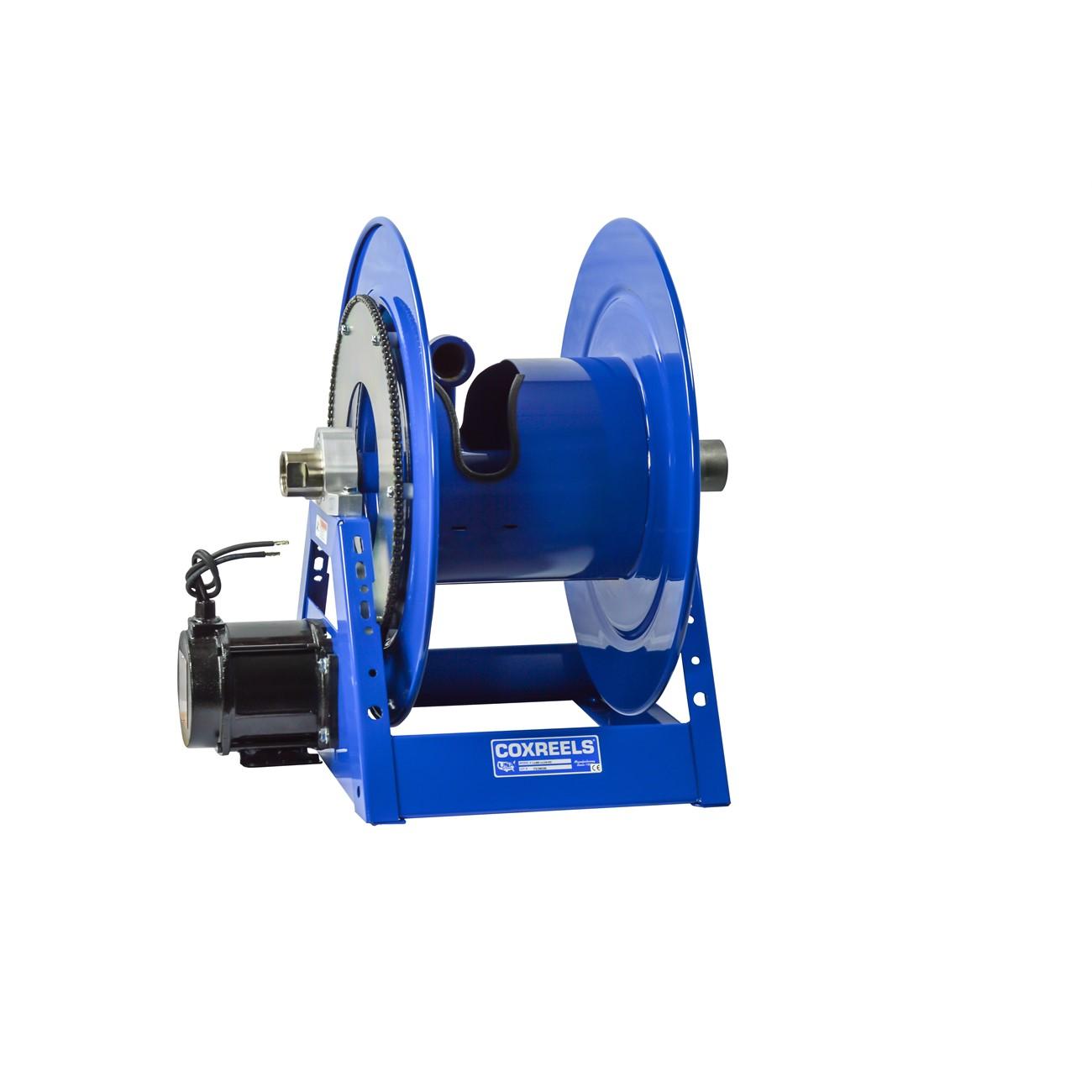

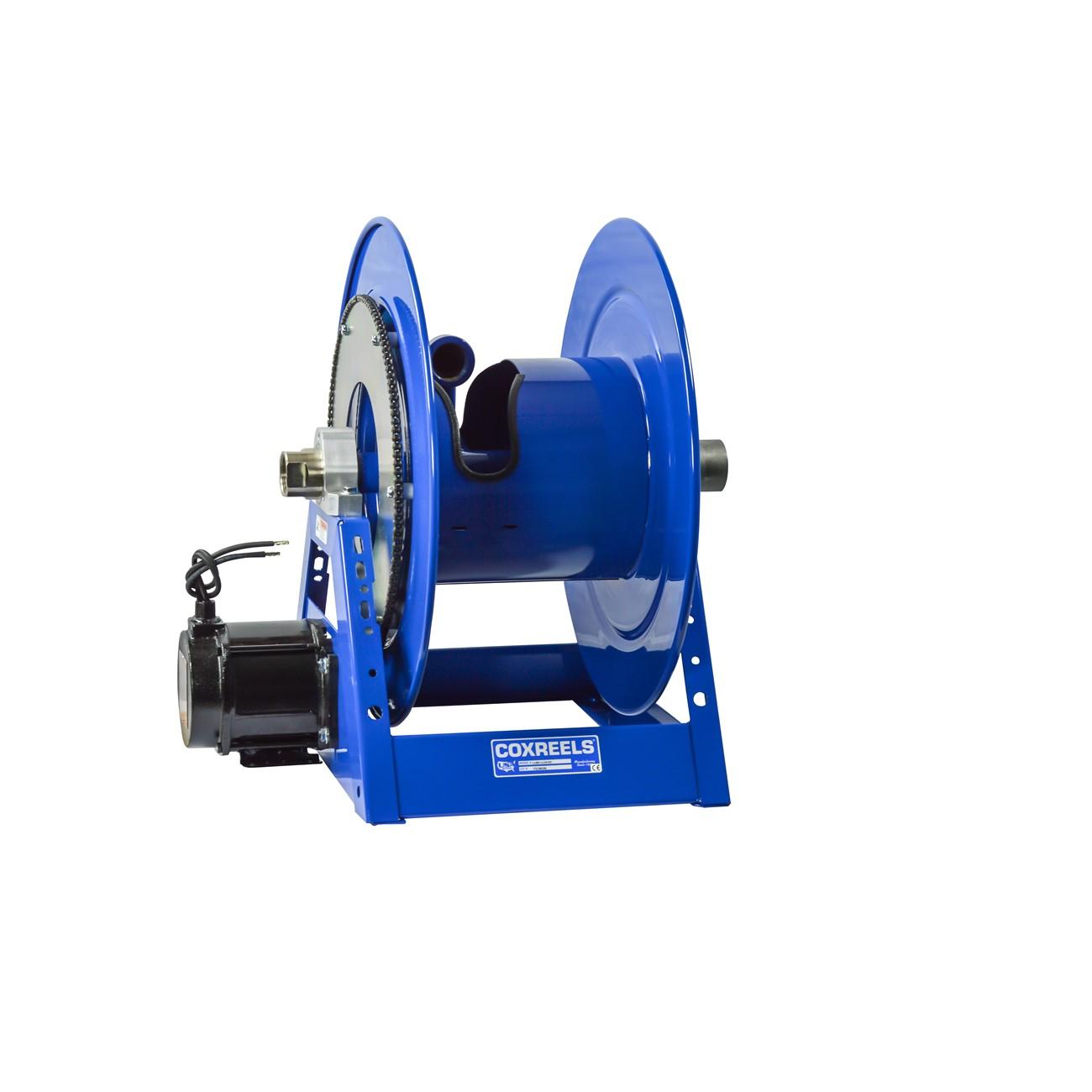

The COXREELS 1185-3328-EB is a heavy-duty, motor-driven hose reel built for high-volume fluid delivery applications requiring long hose runs and large-diameter hose. It accepts hose with a 1.5-inch inner diameter and 2.0625-inch outer diameter, handling up to 250 feet of hose. Power comes from a 24-volt DC, 0.33 HP reversible electric motor that drives both pay-out and retrieval. The all-welded steel A-frame base, CNC robotically spun ribbed discs, and electroless nickel-plated full-flow NPT swivel make this reel a structurally sound, serviceable unit designed for repeated heavy use. At 195 pounds, it is built for fixed or mobile fleet mounting where long-term durability is required.

The 1185-3328-EB suits industrial, municipal, and commercial service operations that move large volumes of fluid through extended hose runs. Typical installations include mobile lube trucks, water delivery equipment, industrial wash-down stations, and fuel transfer rigs. The open drum slot design and low-profile outlet riser keep hose wrap flat and kink-free across the full 250-foot capacity, which is critical for maintaining flow rates in high-demand applications. Licensed technicians and fleet service professionals are the primary installers of this reel class.

Key Features

• 24-volt DC, 0.33 HP reversible electric motor for powered hose pay-out and retrieval
• Electroless nickel-plated full-flow NPT in-line swivel allows seal maintenance and hose installation without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for structural strength, hose protection, and operator safety
• Exclusive low-profile outlet riser and open drum slot design prevent hose crimping and promote flat, smooth hose wrap
• One-piece all-welded 12-gauge steel A-frame base with integrated mounting pattern for secure installation and detachment
• Permanently lubricated horizontal surface-mount bearings and CPC powder coat finish for long service life with minimal maintenance

Compatibility

Designed for use with hose having a 1.5-inch inner diameter and a 2.0625-inch outer diameter, accommodating runs up to 250 feet. Part of the COXREELS 1185 Series of hand crank and motor-driven large-diameter hose reels.

Installation Notes

Installation of this reel should be performed by qualified technicians familiar with industrial fluid-handling and electrical equipment. Disconnect and lock out all power sources before servicing the motor or electrical connections, and shut off the fluid supply before connecting or disconnecting hose. The mounting base pattern is designed for direct surface mounting; confirm that the mounting surface is rated to support the reel weight plus hose and fluid load. Verify that the 24-volt DC power supply is properly sized and fused before commissioning the motor.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Capacity: 250 feet
• Motor Voltage: 24 volts DC
• Motor Output: 0.33 HP reversible
• Frame Material: 12-gauge welded steel
• Finish: CPC powder coat
• Swivel Material: Electroless nickel-plated steel
• Bearing Type: Permanently lubricated horizontal surface-mount
• Weight: 195 pounds
• Length: 49 inches
• Width: 32 inches
• Height: 32 inches
• UPC: 674255838208

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-3328-EB
