Coxreels 1185-3328-EA Hose Reel 1.5 in Id 250 Ft

Product Description

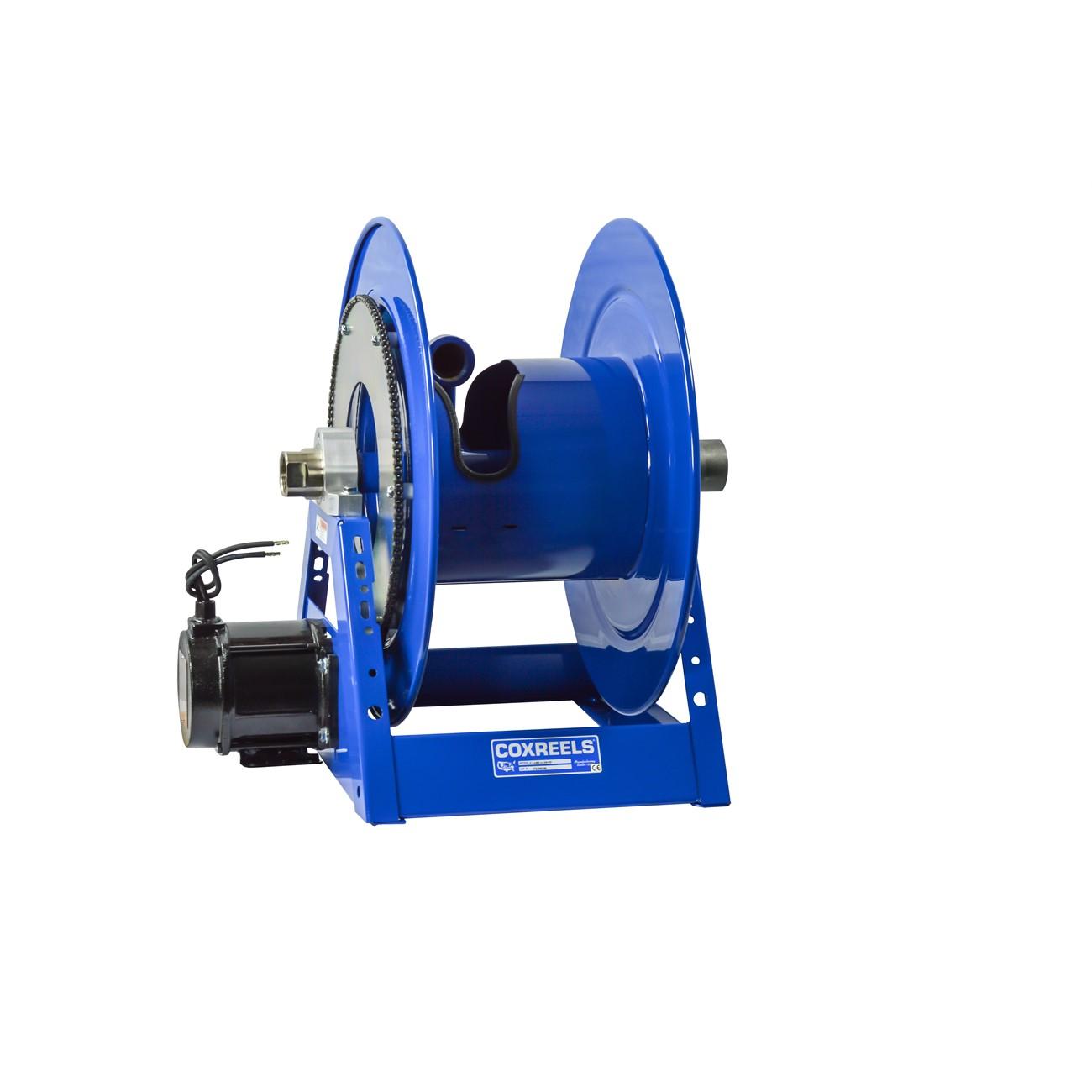

The COXREELS 1185-3328-EA is a heavy-duty hand crank and motor driven hose reel built for high-volume fluid delivery using long lengths of large-diameter hose. It features a 1.5 inch ID hose inlet and accommodates up to 250 feet of hose. The unit ships at 195 pounds and measures 49 inches long by 32 inches wide by 32 inches tall. An all-welded 12-gauge steel A-frame base, CNC robotically spun ribbed discs, and a CPC powder coat finish make this reel well suited to demanding fixed or mobile service environments. A 115-volt AC, 0.5 HP reversible AC rectified motor powers the reel for effortless retraction under load.

The 1185-3328-EA is intended for applications requiring delivery of high volumes through large-bore hose, including industrial fluid transfer, mobile service rigs, and commercial wash-down or dispensing setups. Its open drum slot design and low-profile outlet riser allow the hose to lay flat during wrapping, reducing kinking and wear. The robust frame and permanent lubricated bearings support continuous-duty use where heavy hose and frequent cycling are the norm. Licensed service technicians and industrial equipment operators are the primary installers for this class of reel.

Key Features

• 1.5 inch ID hose passage with 2.0625 inch OD rating, rated for up to 250 feet of large-diameter hose
• 115-volt AC, 0.5 HP reversible AC rectified motor for powered hose retraction
• All-welded one-piece 12-gauge steel A-frame base for superior structural rigidity without bolted joints
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Low-profile outlet riser with open drum slot design prevents hose crimping and promotes flat wrap
• In-line electroless nickel plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Long-lasting CPC powder coat finish resists chipping, rust, and corrosion

Compatibility

Designed as an OEM-style replacement or direct-fit unit within the COXREELS 1185 Series, intended for large-diameter hose applications requiring hand crank or motor-driven retraction.

Installation Notes

Installation of this reel should be performed by qualified service personnel familiar with industrial fluid handling equipment. Disconnect and lock out all power sources before servicing the motor, swivel, or bearings. The mounting pattern is located in the steel base; use appropriately rated fasteners for the mounting surface and verify that the surface can support the fully loaded reel weight. Confirm motor voltage and circuit protection ratings comply with NEC requirements before wiring.

Technical Specifications

• Hose ID: 1.5 inches
• Hose OD: 2.0625 inches
• Hose Capacity: 250 feet
• Motor: 115 volts AC, 0.5 HP reversible AC rectified
• Frame Material: 12-gauge welded steel
• Length: 49 inches
• Width: 32 inches
• Height: 32 inches
• Weight: 195 pounds
• Finish: CPC powder coat
• UPC: 674255833944

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-3328-EA
