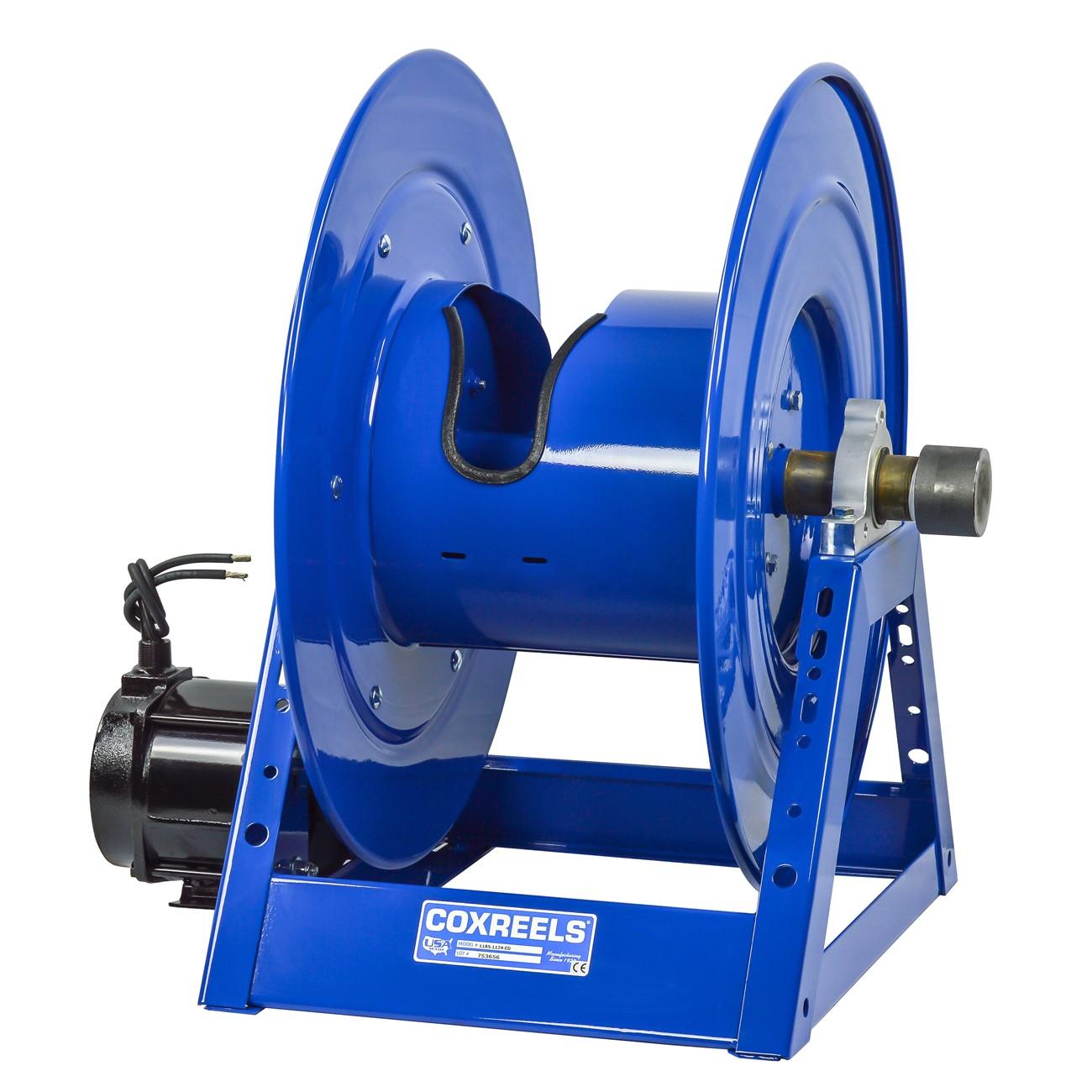

Coxreels 1185-3328-EA-BYXX Storage Hose Reel 115V 1/2 Hp

Product Description

The COXREELS 1185-3328-EA-BYXX is a heavy-duty motorized storage reel built for trade professionals who need to manage long lengths of hose, cord, cable, rope, wire, tape, chain, or collapsible hose in demanding stationary or mobile applications. The reel is driven by a 115-volt AC, 1/2 HP reversible AC rectified motor and features a fully welded steel A-frame base constructed from 1/4-inch steel plate. CNC robotically spun and ribbed discs with rolled edges provide structural strength and protect stored materials during repeated use. At 195 pounds, this unit is built for permanent or semi-permanent installations where durability and capacity are the priority.

The 1185-3328-EA-BYXX is suited for industrial, commercial, and fleet maintenance environments where large quantities of hose, cord, or cable must be stored, deployed, and retrieved efficiently. The motorized drive reduces operator fatigue during high-cycle operations. The reel can be mounted on a stationary surface using the integrated mounting pattern in the steel base, or configured for mobile use. It is appropriate for applications in construction, manufacturing, utilities, and fleet service facilities where manual retrieval of long material runs is impractical.

Key Features

• 115-volt AC, 1/2 HP reversible AC rectified motor for powered retrieval and deployment
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and material protection
• Fully CNC robotically welded one-piece 1/4-inch steel A-frame base — not bolted — for superior structural integrity
• Adjustable tension brake prevents free-wheeling during operation, transport, and storage
• Permanently lubricated, self-aligning pillow block bearings for smooth, low-maintenance rotation
• No swivel and no riser design optimized for storage and maintenance of long material lengths
• CPC powder coat finish resists chipping and rust for extended service life

Compatibility

Designed for storage and retrieval of hose, collapsible hose, power cord, cable, rope, wire, barbed wire, tape, and chain. Suitable for stationary or mobile mounting configurations in industrial and commercial settings.

Installation Notes

Installation should be performed by a qualified technician familiar with both mechanical mounting and electrical connections. Disconnect and lock out power at the source before making any electrical connections to the motor. The steel base includes a pre-drilled mounting pattern for secure attachment to a surface or mobile platform. Electrical wiring to the 115-volt AC motor must comply with applicable NEC requirements for motor branch circuits.

Technical Specifications

• Motor Voltage: 115 volts AC
• Motor Output: 1/2 HP
• Motor Type: Reversible AC rectified
• Frame Material: Steel, 1/4 inch
• Frame Construction: All-welded A-frame, one piece
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Length: 49 inches
• Width: 32 inches
• Height: 32 inches
• Weight: 195 pounds
• UPC: 674255848375

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-3328-EA-BYXX
