Coxreels 1185-3328-E Hose Reel 1.5 in Id 250 Ft Motor Driven

Product Description

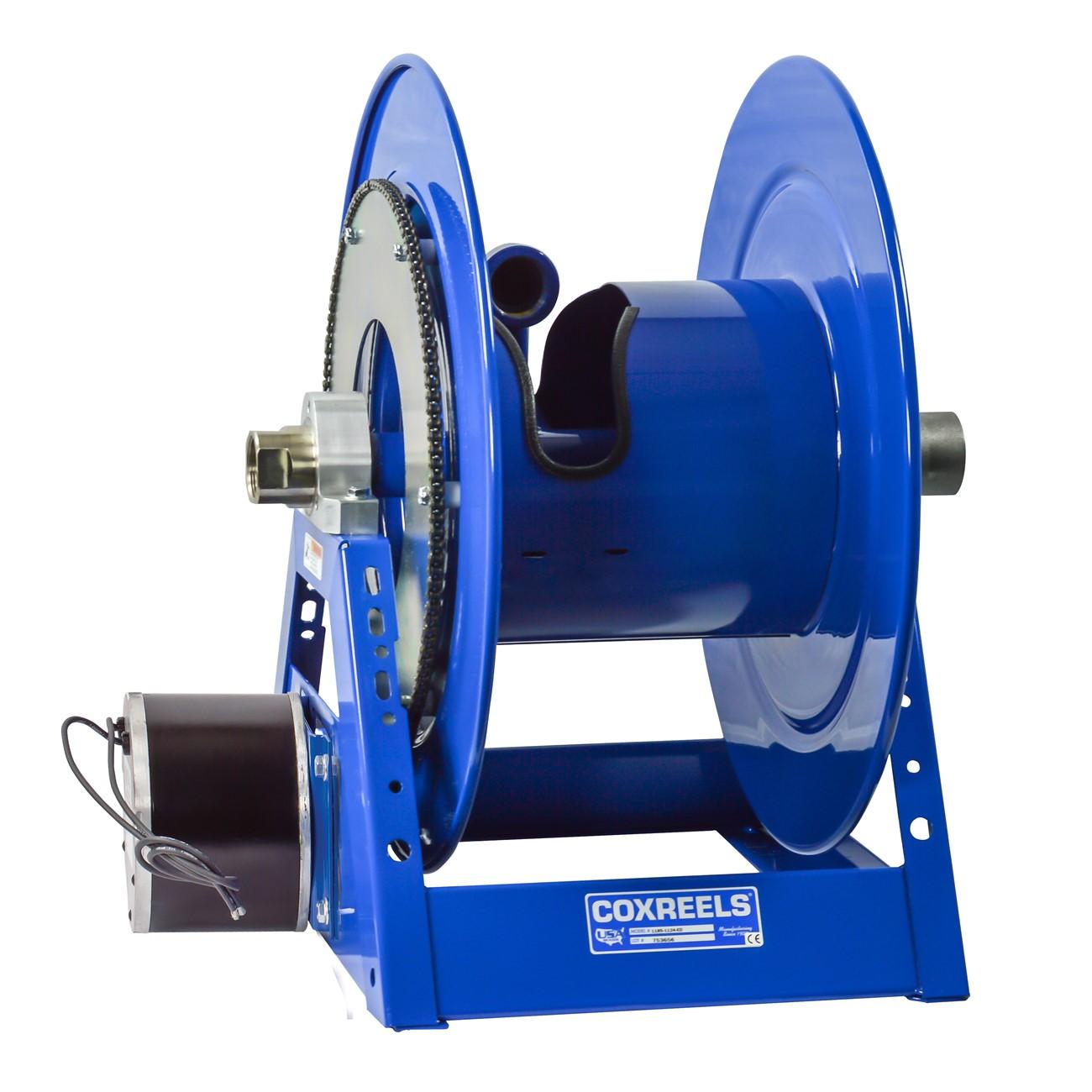

The COXREELS 1185-3328-E is a heavy-duty motor-driven hose reel from the 1185 Series, built for high-volume fluid delivery through long runs of large-diameter hose. It features a 1.5-inch inner diameter hose path and accommodates up to 250 feet of hose. Powered by a 12-volt DC, 1/3 HP reversible motor, the reel also supports hand crank operation. An all-welded 12-gauge steel A-frame base and CNC robotically spun ribbed discs provide the structural integrity needed to manage the extra load in both fixed and mobile installations. Licensed HVAC, plumbing, and industrial service professionals are the primary installers of this equipment.

The 1185-3328-E is suited for applications requiring delivery of large fluid volumes over extended hose lengths, including commercial, industrial, and demanding mobile service environments. The low-profile outlet riser and open drum slot design guide hose onto the drum in a flat, smooth wrap that eliminates crimping. At 182 pounds, the unit is engineered for stationary or vehicle-mounted installations where robust throughput and reel longevity are priorities. The CPC powder coat finish resists chipping and rust, making the reel appropriate for outdoor and harsh-environment service work.

Key Features

• 12-volt DC, 1/3 HP reversible motor with hand crank capability for flexible operation
• Exclusive low-profile outlet riser and open drum slot design prevents hose crimping and promotes flat, smooth wrap
• All-welded one-piece 12-gauge steel A-frame base, not bolted, for superior structural rigidity
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• In-line electroless nickel-plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Chip-resistant, rust-inhibiting CPC powder coat finish for long service life in demanding environments
• Permanent lubricated horizontal surface mount bearings for smooth, consistent rotation

Compatibility

Designed as an OEM-style replacement or direct application fit within the COXREELS 1185 Series for large-diameter, high-volume hose reel installations.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid delivery systems and motor-driven reel equipment. Disconnect and lock out all electrical power and fluid supply before mounting or servicing the reel. The mounting pattern is located in the steel base to facilitate secure attachment to a fixed surface or mobile vehicle platform. Verify that the mounting surface is rated to support the reel weight plus the weight of a fully loaded hose.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Capacity: 250 feet
• Motor: 12-volt DC, 1/3 HP reversible
• Frame Material: 12-gauge welded steel
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Swivel: Electroless nickel-plated steel full-flow NPT in-line swivel
• Weight: 182 pounds
• Length: 49 inches
• Width: 32 inches
• Height: 32 inches
• UPC: 674255833968

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-3328-E
