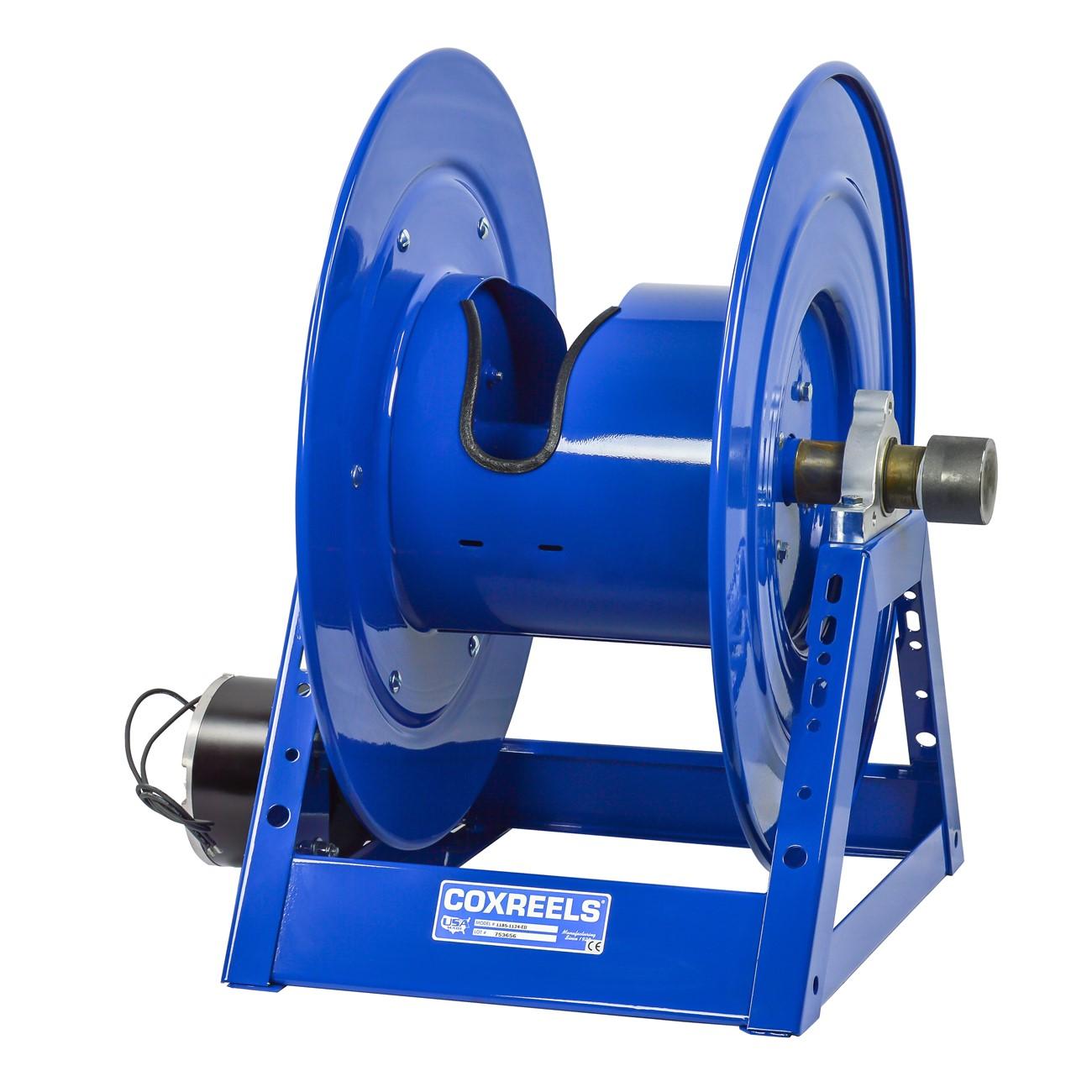

Coxreels 1185-3328-E-BYXX Storage Hose Reel Motor

Product Description

The COXREELS 1185-3328-E-BYXX is a heavy-duty motorized storage reel designed to handle long lengths of hose, cord, cable, wire, rope, tape, chain, and similar materials in demanding trade and industrial environments. Built on a fully welded steel A-frame base, this reel is engineered for both stationary and mobile applications. It is driven by a 12-volt DC, 1/3 HP reversible motor for powered retrieval. The CNC-spun, ribbed steel discs with rolled edges add structural strength and protect the stored material. At 182 pounds, this is a substantial, floor-mount-grade unit suited for shop, fleet, or field service installations.

This storage reel is suited for stationary or mobile setups where long material lengths need to be stored and dispensed in a controlled manner. Typical applications include fleet maintenance facilities, construction sites, utility operations, and industrial service environments. Because it uses no swivel and no riser, it is a true storage reel intended for winding and holding rather than live-fluid transfer. Installers working with bulky or heavy hose runs, power cords, or cable will find the motorized assist and adjustable tension brake particularly useful for managing material weight during retrieval.

Key Features

• 12-volt DC, 1/3 HP reversible motor provides powered pay-out and retrieval
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and material protection
• One-piece, all-welded 1/4-inch steel A-frame base for superior structural rigidity without bolted joints
• Adjustable tension brake controls draw speed and prevents free-wheeling during operation, transport, or storage
• Permanently lubricated, self-aligning pillow block bearings for smooth, low-maintenance rotation
• CPC powder coat finish for long-lasting chip resistance and rust inhibition

Compatibility

Designed as a storage reel for long lengths of hose, collapsible hose, power cord, cable, rope, wire, barbed wire, tape, and chain on stationary or mobile units. No swivel or riser is included, making this unit appropriate for storage and maintenance applications only, not live-fluid transfer.

Installation Notes

Installation should be performed by a qualified technician familiar with industrial reel mounting and low-voltage DC electrical connections. Power down and disconnect any DC power source before wiring the motor. Mount the reel securely using the integrated mounting pattern in the steel base, ensuring the surface and fasteners are rated for the combined weight of the unit and stored material. Verify that the 12-volt DC power supply circuit is properly fused and sized for the motor load before energizing.

Technical Specifications

• Motor Voltage: 12 volts DC
• Motor Output: 1/3 HP
• Motor Type: Reversible
• Frame Material: Steel, 1/4 inch wall, fully welded A-frame
• Disc Construction: CNC robotically spun and ribbed with rolled edges
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Bearings: Permanently lubricated, self-aligning pillow block
• Length: 49 inches
• Width: 32 inches
• Height: 32 inches
• Weight: 182 pounds
• UPC: 674255856479

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-3328-E-BYXX
