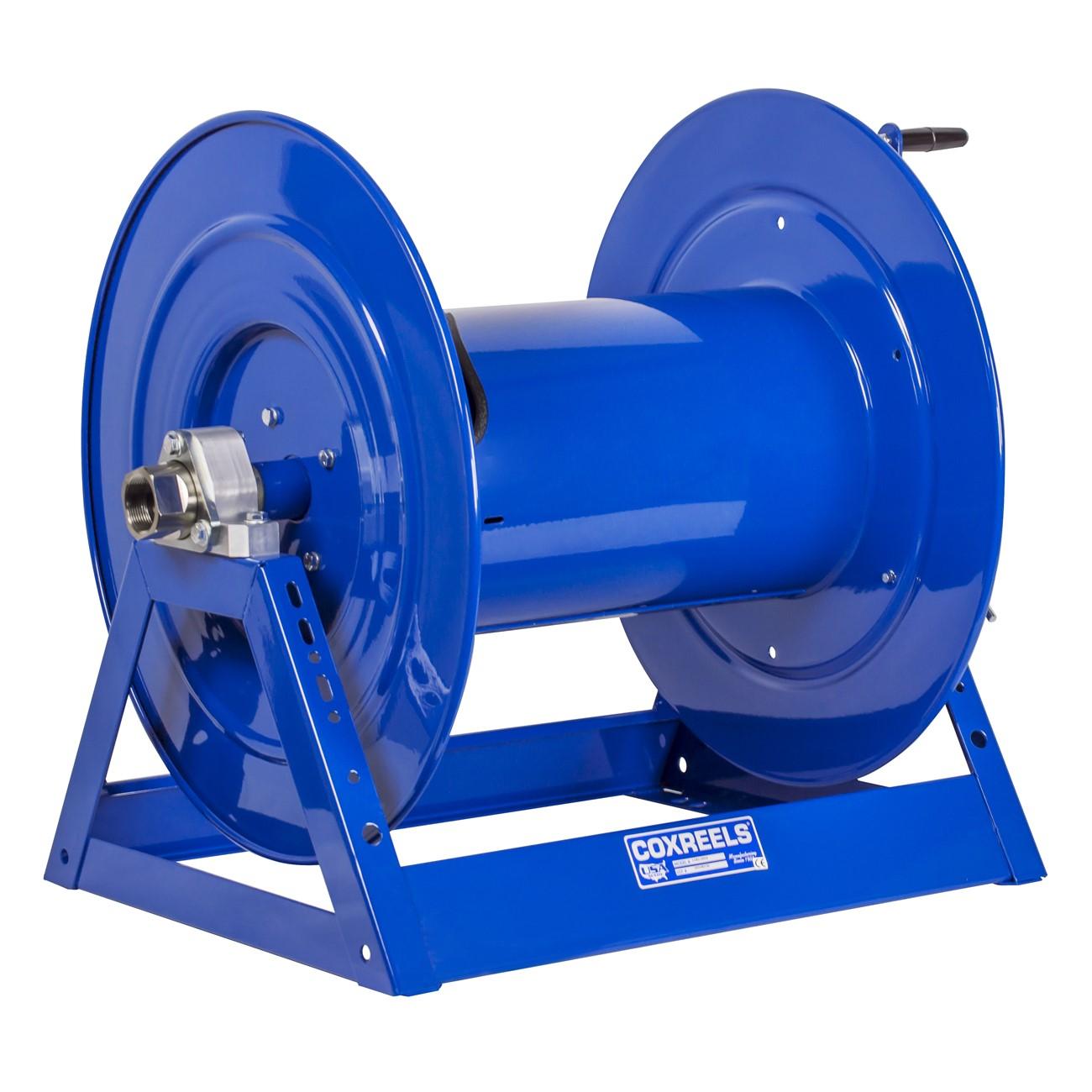

Coxreels 1185-3328-C Hose Reel 1.5 in Id 250 Ft

Product Description

The COXREELS 1185-3328-C is a heavy-duty hose reel from the 1185 Series, available in hand crank and motor driven configurations for handling long lengths of large diameter hose. Built for high-volume delivery applications, it features a 1.5-inch inner diameter and accommodates up to 250 feet of hose. The all-welded steel A-frame base provides structural rigidity without bolted connections, keeping the unit solid under the extra weight of a full hose load. A CPC powder coat finish resists chipping and rust. This reel is installed by HVAC technicians, plumbers, and industrial service professionals who require reliable large-volume fluid transfer in both stationary and mobile setups.

The 1185-3328-C suits residential and commercial service operations where long hose runs and large-diameter supply lines are standard. The open drum design and low-profile outlet riser allow hose to wrap flat without crimping, which is critical when working with stiff, heavy-walled hose. Its mounting pattern is integrated into the base plate, making it straightforward to install on a service truck, trailer, or fixed station. Front bevel gearing on the crank reduces the effort needed to retract a fully loaded 250-foot hose run.

Key Features

• 1.5-inch ID inlet with 2.0625-inch OD accommodates large-diameter, high-volume hose
• In-line electroless nickel plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Exclusive low-profile outlet riser and open drum slot design prevents hose crimping and ensures a flat, smooth wrap
• One-piece all-welded 12-gauge steel A-frame base with integrated mounting pattern for easy installation and removal
• Permanently lubricated horizontal surface mount bearings and front bevel geared crank for low-effort retraction

Compatibility

Designed as an OEM-style replacement and direct fitment option within the COXREELS 1185 Series for large-diameter hose applications requiring hand crank or motor driven operation.

Installation Notes

Installation is typically performed by licensed plumbers, HVAC technicians, or industrial service professionals. Before mounting or servicing the reel, depressurize and drain the connected hose and shut off the fluid supply at the source. Secure the unit to a flat, load-bearing surface using the integrated base mounting pattern. Consult applicable local codes and manufacturer guidelines before connecting to any pressurized system.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Capacity: 250 feet
• Frame Material: 12-gauge welded steel
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Weight: 172 pounds
• Length: 49 inches
• Width: 32 inches
• Height: 32 inches
• UPC: 674255843264

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-3328-C
