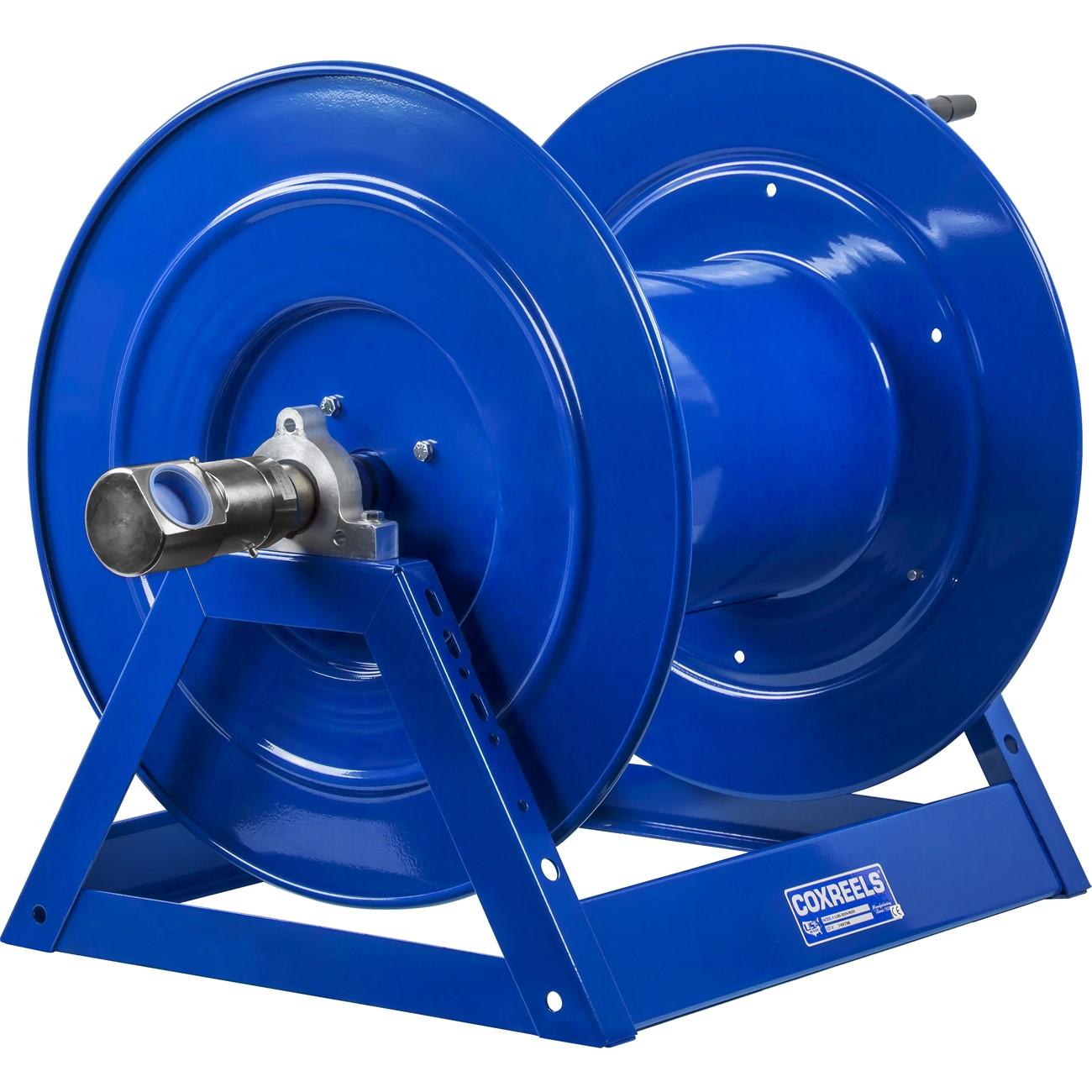

Coxreels 1185-3328-C-BUXX Heavy Duty Hose Reel 1-1/2 Inch Id

Product Description

The COXREELS 1185-3328-C-BUXX is a heavy-duty hose reel from the 1185 Series, engineered for hand crank and motor-driven operation with large-diameter hose in high-volume delivery applications. Built on a one-piece all-welded 12-gauge steel A-frame base, this reel is designed to carry the extra load of long, large-bore hose without flex or structural compromise. The 1-1/2 inch ID inlet and 2-1/16 inch OD configuration supports high-flow service work. An exclusive low-profile outlet riser combined with an open drum slot design ensures a non-crimping, flat, smooth hose wrap across the full drum. Licensed HVAC, plumbing, and industrial service technicians install this unit in both fixed and mobile service setups.

The 1185-3328-C-BUXX is suited for demanding commercial and industrial applications where large-diameter hose must be dispensed and retracted reliably. Its open drum construction and CNC robotically spun ribbed discs make it well-matched for mobile service vehicles, shop floors, and fixed mounting stations where hose length and volume throughput are priorities. The front bevel-geared crank provides mechanical retraction advantage when pulling back heavy, fully loaded hose runs. The unit ships as a single reel assembly ready for mounting.

Key Features

• One-piece CNC robotically welded 12-gauge steel A-frame base — no bolted joints — for superior structural rigidity under heavy hose loads
• Exclusive low-profile outlet riser and open drum slot design prevents hose crimping and promotes flat, even hose wrap
• Electroless nickel-plated steel 90-degree full-flow NPT swivel with ball bearings — allows hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Permanently lubricated horizontal surface-mount bearings for smooth, low-effort rotation
• CPC powder coat finish provides chip resistance and rust inhibition for long service life in harsh environments
• Long-handled locking pin secures reel position; front bevel-geared crank delivers mechanical advantage during manual retraction

Compatibility

Designed as an OEM-style replacement or direct application fit within the COXREELS 1185 Series hose reel platform for large-diameter, high-volume hose service applications.

Installation Notes

Installation is typically performed by qualified service technicians in industrial, commercial, or mobile service environments. Before mounting, ensure the mounting surface can support the reel weight of 172 pounds plus the full weight of loaded hose. Use the base mounting pattern integrated into the steel frame for secure fastening to wall brackets, floor stands, or service vehicle mounts. Shut off all fluid supply and depressurize the hose assembly fully before connecting or disconnecting the swivel fitting.

Technical Specifications

• Hose ID: 1-1/2 inches
• Hose OD: 2-1/16 inches
• Frame Material: 12-gauge welded steel
• Finish: CPC powder coat
• Weight: 172 pounds
• Length: 49 inches
• Width: 32 inches
• Height: 32 inches
• UPC: 674255853324

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-3328-C-BUXX
