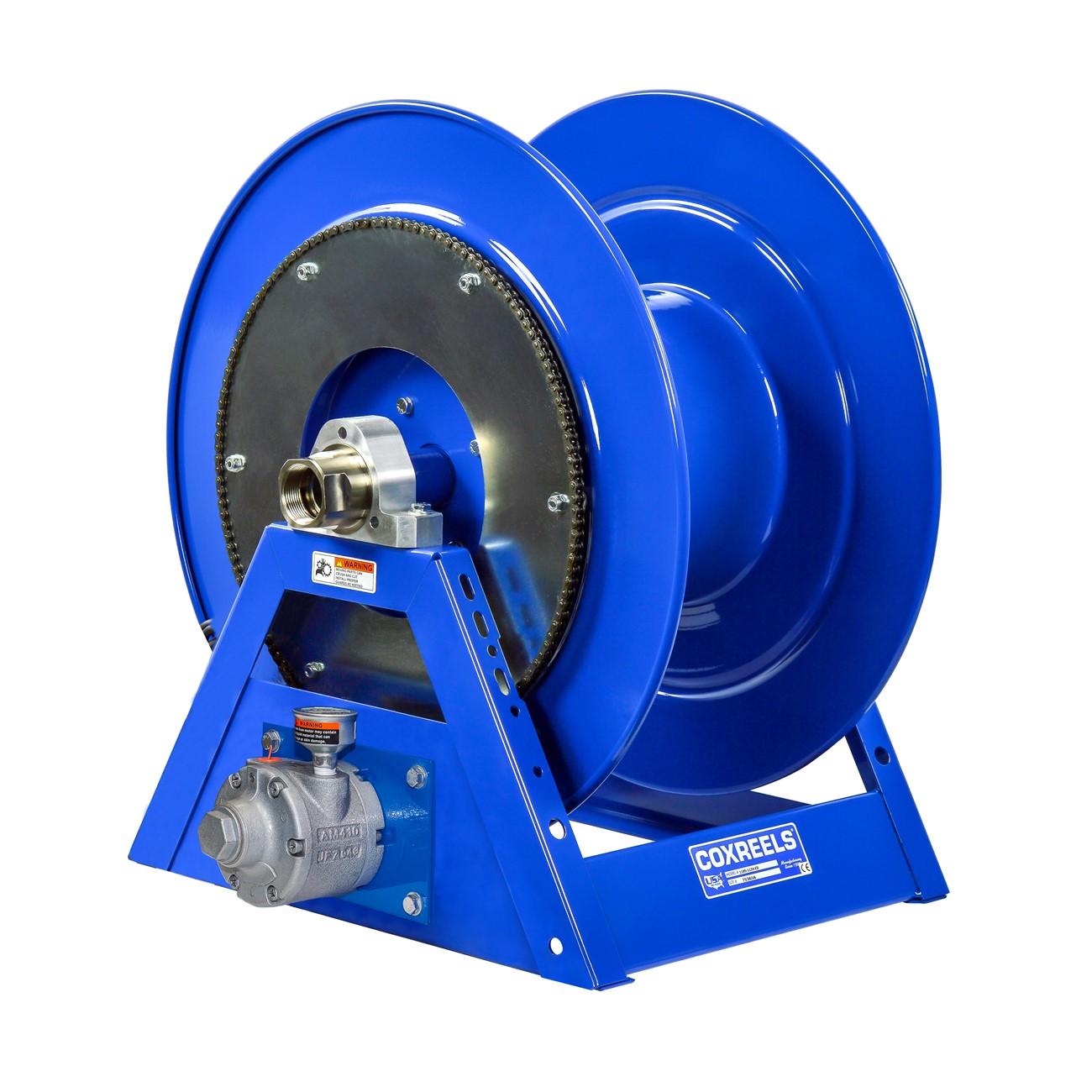

Coxreels 1185-3328-AB Hose Reel 1.5 in Id 250 Ft

Product Description

The COXREELS 1185-3328-AB is a heavy-duty hose reel from the 1185 Series, designed to handle long lengths of large-diameter hose for high-volume fluid delivery. It accepts hose with a 1.5-inch inner diameter and 2.0625-inch outer diameter, with a 250-foot hose capacity. The reel is available in both hand crank and motor-driven configurations, making it suitable for demanding stationary and mobile applications. Weighing 177 pounds and measuring 49 inches long by 32 inches wide by 32 inches tall, this is a substantial industrial-grade unit built for serious service environments. A licensed technician or equipment installer is the typical end user.

The 1185-3328-AB fits applications requiring the delivery of large hose volumes, such as water transfer, petroleum, or industrial fluid handling in mobile or fixed installations. The open drum design and low-profile outlet riser keep hose lay flat and non-crimping during deployment and retrieval, which matters in high-cycle environments. The all-welded steel A-frame base and CNC-spun ribbed discs make this reel appropriate for use where conventional lighter-duty reels cannot handle the load or hose weight.

Key Features

• Low-profile outlet riser with open drum slot design prevents hose crimping and promotes flat, smooth hose wrap
• One-piece all-CNC robotically welded 12-gauge steel A-frame base provides superior structural integrity without bolted joints
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for increased strength, hose protection, and operator safety
• In-line electroless nickel-plated steel full-flow NPT swivel allows seal maintenance and hose replacement without removing the reel from its mount
• Permanently lubricated horizontal surface-mount bearings for smooth, low-effort rotation
• Chip-resistant, rust-inhibiting CPC powder coat finish for long service life in harsh environments
• Aluminum body air motor with 6-vane design included on motor-driven configuration

Compatibility

Designed for use with large-diameter industrial hose with a 1.5-inch inner diameter and 2.0625-inch outer diameter up to 250 feet in length. Intended for industrial fluid delivery, mobile equipment, or high-volume transfer applications requiring a heavy-duty large-capacity hose reel.

Installation Notes

Installation should be performed by a qualified technician familiar with industrial hose reel mounting requirements. Secure the reel to a mounting surface using the integrated base mounting pattern before connecting any hose or supply lines. On motor-driven units, disconnect power to the motor before performing any service or hose replacement. Verify all inlet and outlet NPT connections are properly sealed and torqued to fitting manufacturer specifications before pressurizing the system.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Capacity: 250 feet
• Unit Weight: 177 pounds
• Length: 49 inches
• Width: 32 inches
• Height: 32 inches
• Frame Material: 12-gauge welded steel
• Swivel Material: Electroless nickel-plated steel
• Finish: CPC powder coat
• Drive Type: Hand crank and motor driven
• UPC: 674255833937

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-3328-AB
