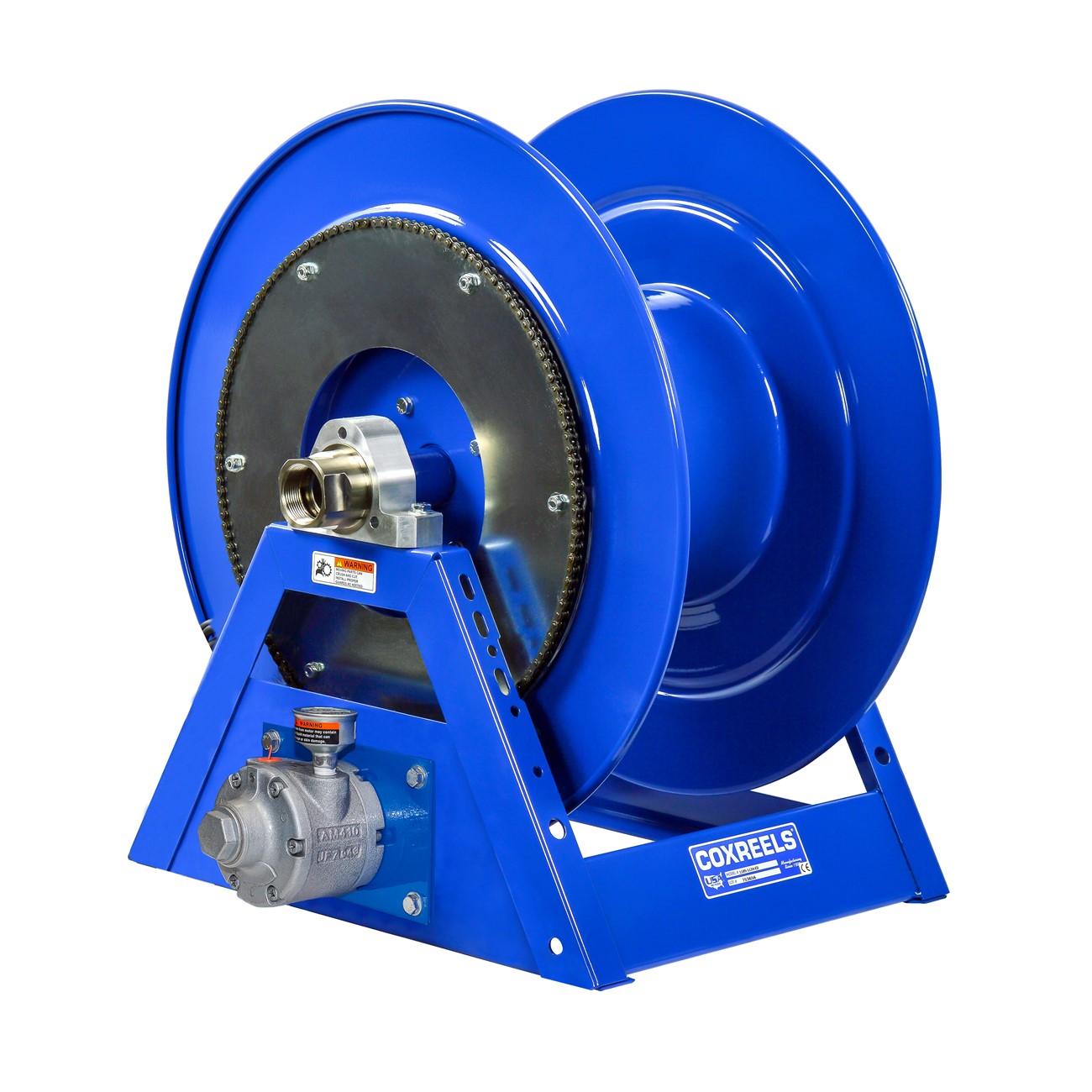

Coxreels 1185-3328-A Hose Reel 1.5 in Id 250 Ft

Product Description

The COXREELS 1185-3328-A is a heavy-duty hose reel from the 1185 Series, built for hand crank and motor-driven operation with large-diameter, high-volume hose applications. It features a 1.5-inch inner diameter and 2.0625-inch outer diameter hose path, accommodating up to 250 feet of hose. The open drum design and low-profile outlet riser ensure a non-crimping, flat smooth hose wrap, protecting hose integrity under repeated use. An all-welded 12-gauge steel A-frame base provides the structural strength needed to support the substantial load. Licensed HVAC, plumbing, and industrial service technicians working with high-flow fluid transfer systems are the primary installers.

The 1185-3328-A is suited for both stationary and mobile installations requiring delivery of large hose volumes. The motor-driven capability supports demanding environments where manual cranking is impractical, such as truck-mounted service rigs or industrial plant floors. The mounting pattern is integrated into the steel base for straightforward installation and removal. CPC powder coat finish resists chipping and corrosion, making this reel appropriate for outdoor or harsh-environment use. An aluminum body 4-vane air motor drives the reel in motor-assisted configurations.

Key Features

• Low-profile outlet riser and open drum slot design prevent hose crimping and promote flat, even wrap
• All-welded one-piece 12-gauge steel A-frame base for superior structural rigidity without bolted joints
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• In-line electroless nickel-plated steel full-flow NPT swivel allows seal maintenance and hose changes without removing the reel from its mount
• Permanently lubricated horizontal surface-mount bearings for smooth, low-effort rotation
• CPC powder coat finish provides long-lasting chip resistance and rust inhibition
• Aluminum body 4-vane air motor included for motor-driven operation

Compatibility

Designed as an OEM-style fit within the COXREELS 1185 Series platform for large-diameter hose applications requiring high-volume fluid delivery in mobile or stationary configurations.

Installation Notes

Installation should be performed by a qualified technician familiar with high-flow fluid transfer systems and applicable plumbing or industrial codes. Power down or depressurize the connected fluid system completely before mounting, connecting, or servicing the reel. Secure the reel using the integrated base mounting pattern with hardware appropriate for the mounting surface load rating. When connecting the air motor supply, follow applicable compressed air system safety procedures and verify the air supply pressure is within the motor operating range before startup.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Capacity: 250 feet
• Drive Type: Hand crank and motor driven
• Motor Type: Aluminum body 4-vane air motor
• Frame Material: 12-gauge welded steel
• Finish: CPC powder coat
• Swivel Material: Electroless nickel-plated steel
• Length: 49 inches
• Width: 32 inches
• Height: 32 inches
• Weight: 177 pounds
• UPC: 674255836457

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-3328-A
