Coxreels 1185-3324 Hose Reel 1.5 in Id 175 Ft Hand Crank

Product Description

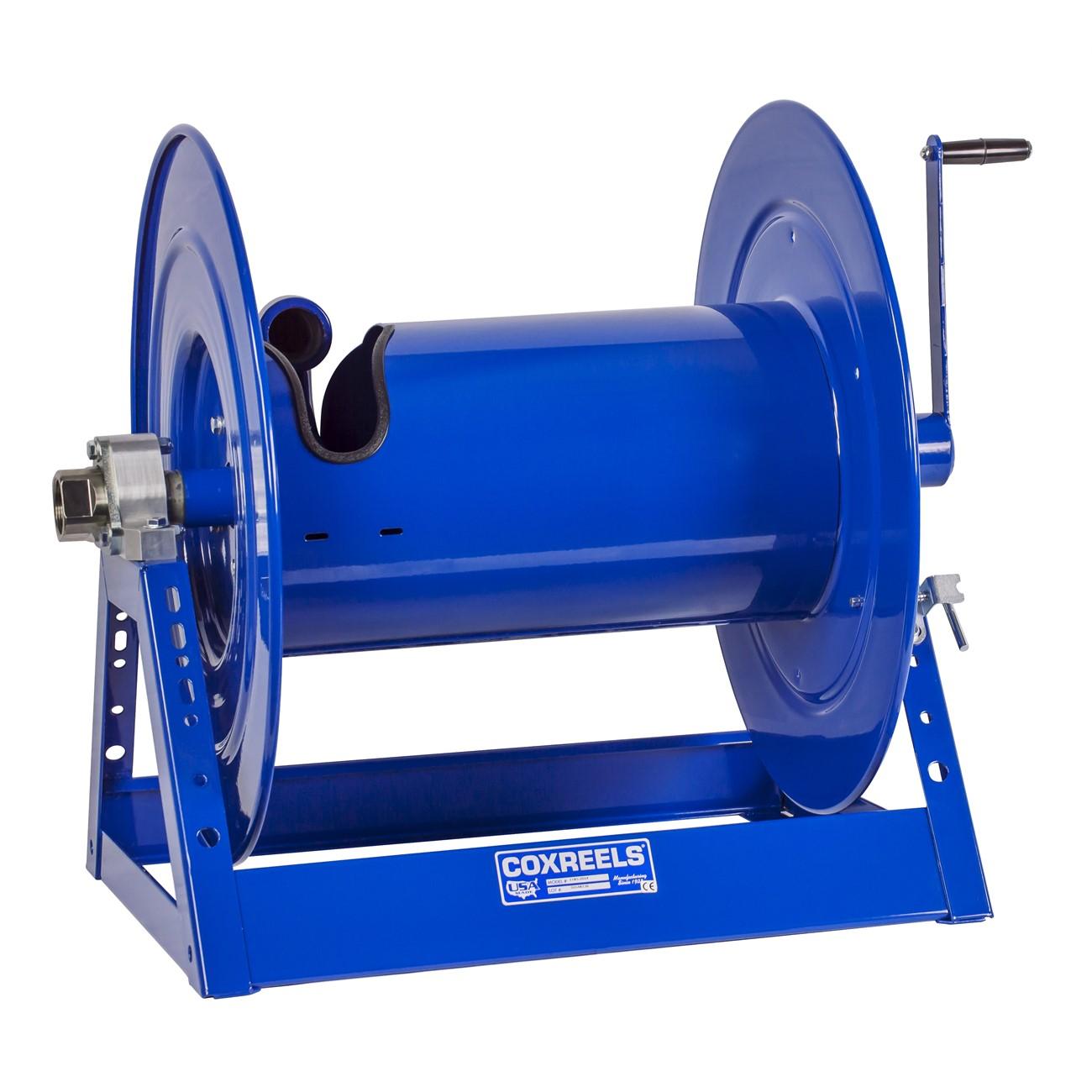

The COXREELS 1185-3324 is a heavy-duty hose reel from the 1185 Series, built to manage long lengths of large-diameter hose where high-volume fluid delivery is required. With a 1.5-inch inner diameter and a 175-foot hose capacity, this reel handles the extra weight and bulk that standard reels cannot. It features a one-piece all-welded 12-gauge steel A-frame base, CNC robotically spun and ribbed discs with rolled edges, and a direct hand crank for mechanical retraction. The unit weighs 154 pounds and measures 49 inches long by 28 inches wide by 28 inches tall. Licensed tradespeople in industrial, municipal, and mobile service applications are the primary installers.

The 1185-3324 is suited for demanding applications requiring large-diameter hose deployment over extended lengths. Its open drum slot design and exclusive low-profile outlet riser promote a flat, non-crimping hose wrap, which is critical when working with heavy, stiff hose at high flow volumes. The reel is appropriate for use in mobile service vehicles, wash-down stations, and other fixed or mobile industrial setups where a hand crank or motor-driven retraction system is needed. The CPC powder coat finish resists chipping and rust, making it viable for outdoor and corrosive-environment use.

Key Features

• 1.5-inch inner diameter hose path supports high-volume, large-diameter hose up to 175 feet
• One-piece all-welded 12-gauge steel A-frame base for superior structural integrity without bolted joints
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Exclusive low-profile outlet riser and open drum slot design prevents hose crimping during wrap
• In-line electroless nickel plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Long-handled locking pin secures the reel position; direct hand crank enables easy mechanical retraction

Compatibility

Designed as an OEM-style replacement or direct upgrade within the COXREELS 1185 Series, compatible with large-diameter hose applications requiring a 1.5-inch ID inlet and up to 175 feet of hose capacity.

Installation Notes

Installation is typically performed by qualified industrial or mechanical service technicians. Shut off all fluid supply and depressurize the hose before mounting or servicing the reel. The mounting pattern is located in the steel base for straightforward reel installation and removal. Consult applicable local codes and manufacturer guidelines for mounting hardware torque and fluid system connections.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Capacity: 175 feet
• Frame Material: 12-gauge steel, all-welded
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Swivel Material: Electroless nickel plated steel
• Bearing Type: Permanent lubricated horizontal surface mount
• Length: 49 inches
• Width: 28 inches
• Height: 28 inches
• Weight: 154 pounds
• UPC: 674255833586

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-3324
