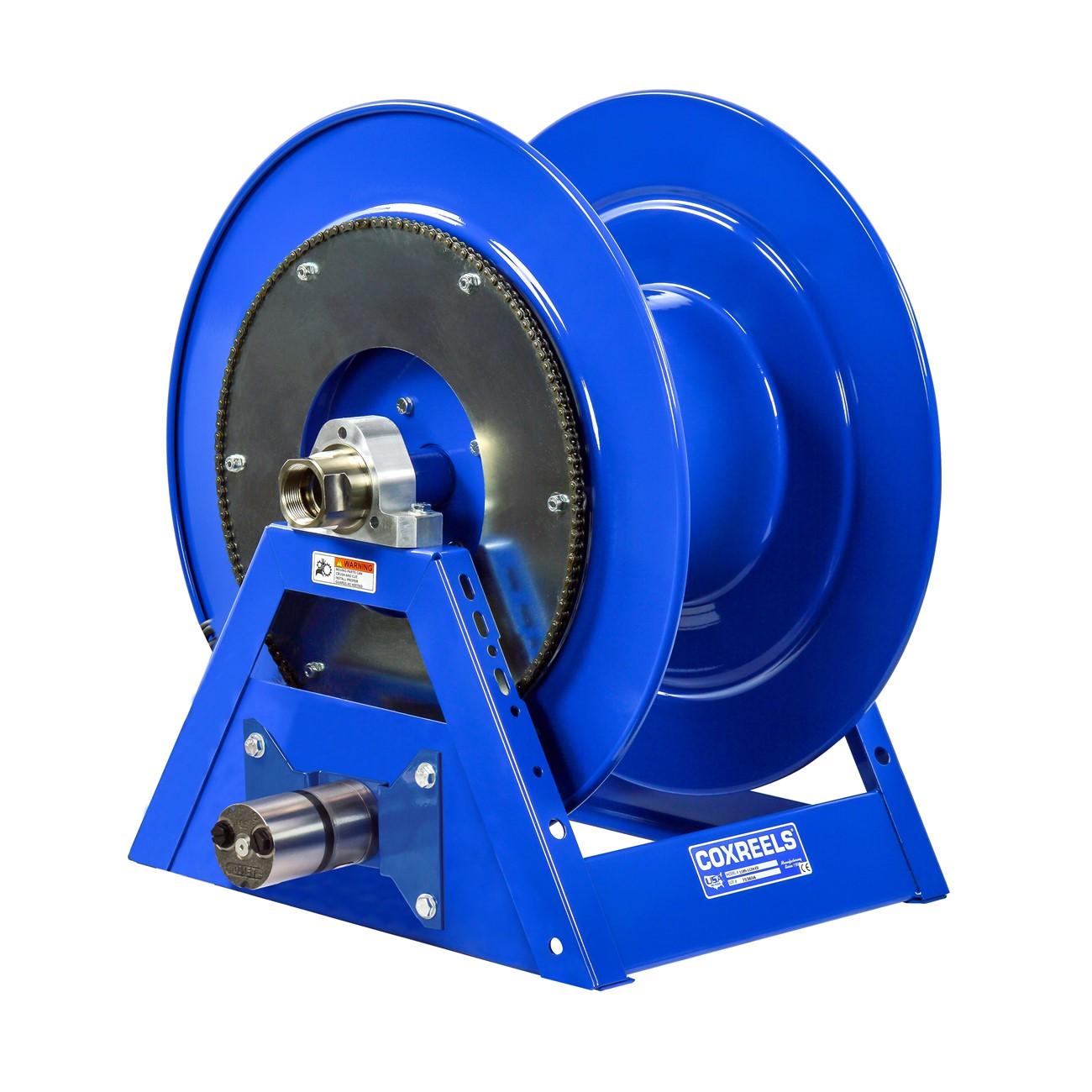

Coxreels 1185-3324-H Hose Reel 1-1/2 in Id 175 Ft

Product Description

The COXREELS 1185-3324-H is a heavy-duty industrial hose reel from the 1185 Series, designed to store and dispense long lengths of large-diameter hose for high-volume fluid delivery applications. Built on a fully welded 12-gauge steel A-frame base, this reel provides the structural rigidity needed to support the weight of extended hose runs without flexing or fatigue. The low-profile outlet riser and open drum slot design keep hose lay flat and kink-free during both retrieval and dispensing. Equipped with a hydraulic motor drive and an electroless nickel-plated full-flow NPT swivel, the 1185-3324-H suits demanding fixed and mobile installations where reliable, high-capacity hose management is required.

The 1185-3324-H is intended for industrial and commercial applications requiring the handling of 1-1/2 inch ID hose up to 175 feet in length. Typical installations include mobile lube trucks, bulk fluid transfer stations, industrial washdown systems, and heavy mobile service equipment. The reel is surface-mount configured and is installed by mechanics, industrial maintenance technicians, and fluid-system specialists working in high-demand environments where hose volume and length exceed standard reel capacity.

Key Features

• Fully CNC robotically welded 12-gauge steel A-frame base for superior structural integrity without bolted joints
• Hydraulic motor drive for powered hose retrieval under load
• Electroless nickel-plated full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Heavy-duty CNC spun and ribbed discs with rolled edges for hose protection and operator safety
• Exclusive low-profile outlet riser and open drum slot design eliminates hose crimping and promotes flat, smooth wrap
• CPC powder coat finish provides chip resistance and rust inhibition for long service life
• Permanently lubricated horizontal surface-mount bearings for smooth rotation

Compatibility

Designed as an OEM-style replacement and direct application fit within the COXREELS 1185 Series for large-diameter, high-volume hose reel installations requiring 1-1/2 inch ID hose capacity.

Installation Notes

Installation is typically performed by qualified mechanics or industrial fluid-system technicians. Shut down all fluid pressure and depressurize the hose circuit completely before connecting or disconnecting swivel fittings. The base mounting pattern is integrated into the steel frame for straightforward bolting to a fixed or mobile surface. Consult applicable facility safety codes and equipment manufacturer guidelines before placing the reel in service.

Technical Specifications

• Hose ID: 1-1/2 inches
• Hose OD: 2-1/16 inches
• Hose Capacity: 175 feet
• Drive Type: Hydraulic motor
• Frame Material: 12-gauge steel, fully welded
• Swivel Finish: Electroless nickel-plated steel
• Finish: CPC powder coat
• Length: 49 inches
• Width: 28 inches
• Height: 28 inches
• Weight: 162 pounds
• UPC: 674255850316

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-3324-H
