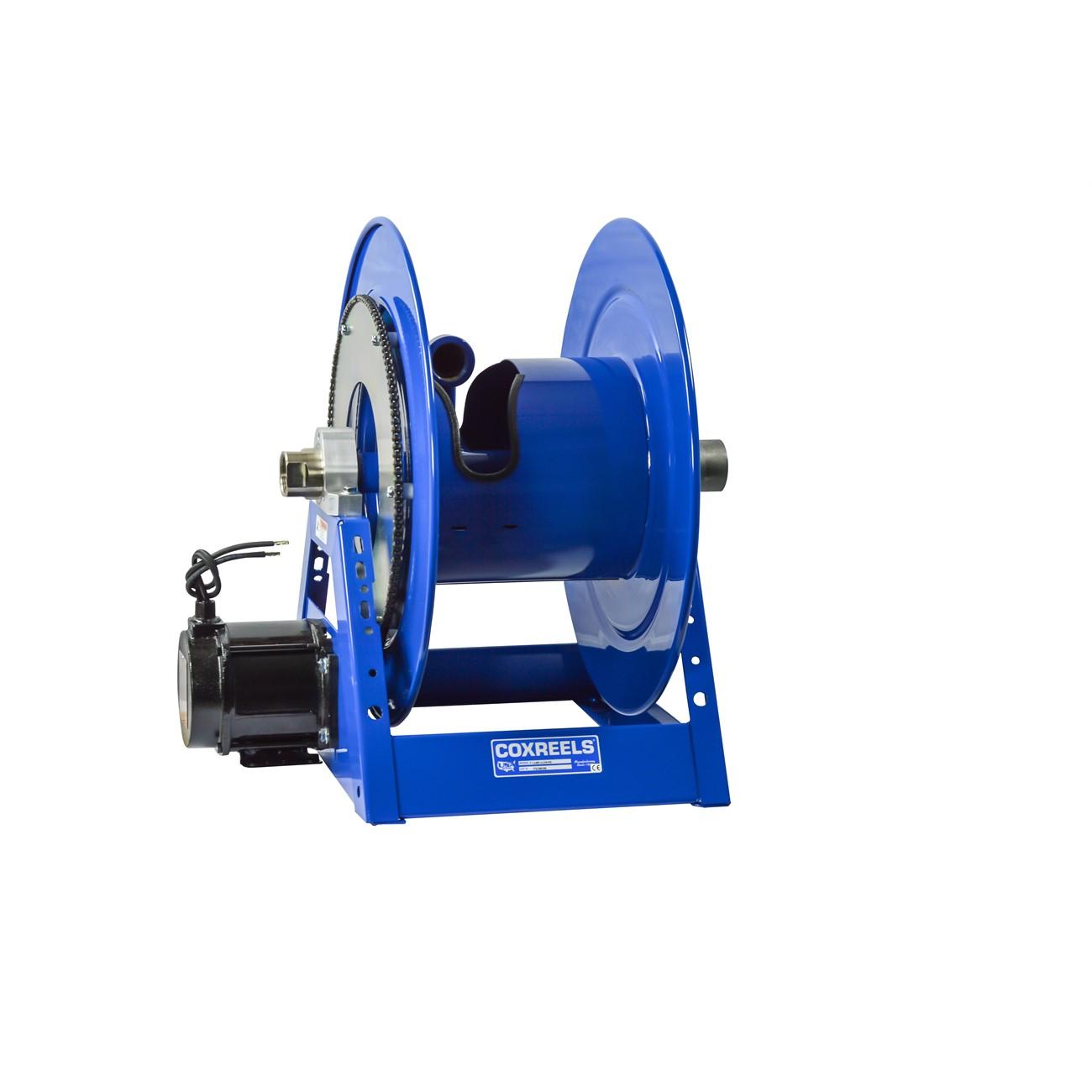

Coxreels 1185-3324-ED Hose Reel 1.5 in Id 175 Ft

Product Description

The COXREELS 1185-3324-ED is a heavy-duty, motor-driven hose reel from the 1185 Series, engineered for high-volume fluid delivery through long runs of large-diameter hose. It accepts hose with a 1.5-inch inner diameter and a 2.0625-inch outer diameter, with a working length of 175 feet. Power comes from a 12-volt DC, 0.5 HP explosion-proof reversible motor. The all-welded steel A-frame base, CNC-spun ribbed discs, and in-line electroless nickel-plated swivel make this reel suited for demanding fixed and mobile service environments. Licensed trades professionals in industrial, municipal, and fleet service operations are the primary installers and users.

The 1185-3324-ED is built for applications that require moving large volumes of fluid over extended hose lengths. The open drum slot design and low-profile outlet riser allow the hose to lay flat and smooth without crimping during wrap or deployment. The explosion-proof motor rating makes this reel appropriate for environments where flammable vapors or dust may be present. Typical installations include tank truck operations, industrial wash-down stations, bulk fluid transfer, and heavy mobile service rigs where hose management and cycle durability are critical.

Key Features

• 12-volt DC, 0.5 HP explosion-proof reversible motor for powered hose retrieval in hazardous-rated environments
• In-line electroless nickel-plated steel full-flow NPT swivel allows seal maintenance and hose changes without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• Exclusive low-profile outlet riser and open drum slot design delivers a non-crimping, flat smooth hose wrap
• One-piece all-welded 12-gauge steel A-frame base with integrated mounting pattern for secure installation and easy detachment
• CPC powder coat finish provides chip resistance and rust inhibition for long service life

Compatibility

Designed for use with hose rated at 1.5-inch inner diameter and 2.0625-inch outer diameter up to 175 feet in length. Verify hose end fittings and NPT thread compatibility before installation.

Installation Notes

Installation of motor-driven hose reels should be performed by a qualified technician familiar with both fluid system plumbing and low-voltage DC electrical wiring. Disconnect all power sources and depressurize the fluid system before mounting or servicing the reel. Secure the A-frame base to a structural surface rated to support the reel weight plus the weight of a fully loaded hose. Where the explosion-proof motor rating is required, verify the installation environment classification and confirm compliance with applicable NEC hazardous-location requirements before energizing.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Length Capacity: 175 feet
• Motor Voltage: 12 volts DC
• Motor Output: 0.5 HP
• Motor Type: Explosion-proof reversible
• Frame Construction: 12-gauge CNC welded steel A-frame
• Swivel Material: Electroless nickel-plated steel
• Finish: CPC powder coat
• Overall Length: 49 inches
• Overall Width: 28 inches
• Overall Height: 28 inches
• Weight: 180 pounds
• UPC: 674255833838

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-3324-ED
