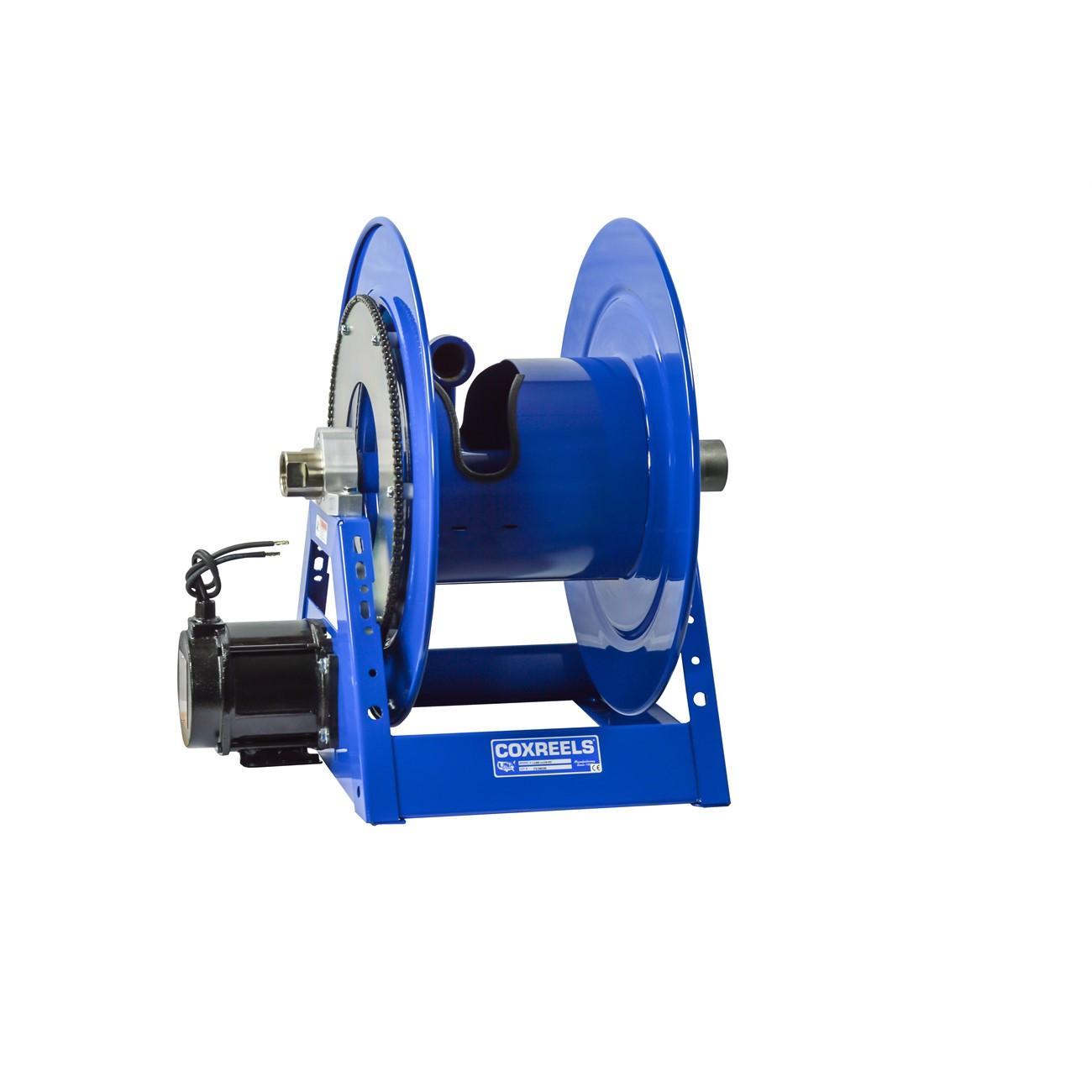

Coxreels 1185-3324-EB Hose Reel 1.5 Inch Id 175 Ft

Product Description

The COXREELS 1185-3324-EB is a heavy-duty electric motor-driven hose reel built for high-volume fluid delivery applications requiring long hose runs and large-diameter hose. Powered by a 24-volt DC, 1/3 HP reversible motor, it handles up to 175 feet of 1.5-inch ID hose with a 2.0625-inch OD. The all-welded 12-gauge steel A-frame base provides rigid, warp-resistant support capable of bearing the substantial weight of a fully loaded reel. A CPC powder coat finish resists chipping and corrosion in tough field conditions. Licensed HVAC, plumbing, and industrial service technicians rely on this reel for mobile and stationary high-flow service work.

The 1185-3324-EB is suited for demanding commercial and industrial environments where large volumes of fluid must be delivered through extended hose lengths. Its open drum slot design and exclusive low-profile outlet riser promote a flat, non-crimping hose wrap that preserves hose integrity over repeated use. The mounting pattern is integrated into the steel base, making installation and removal straightforward in mobile vehicle-mount or fixed-station configurations. Applications include high-volume water delivery, industrial fluid transfer, and similar trades requiring 1.5-inch ID hose capacity.

Key Features

• 24-volt DC, 1/3 HP reversible electric motor for powered hose retrieval
• Low-profile outlet riser and open drum slot design prevent hose crimping during wrap
• One-piece CNC robotically welded 12-gauge steel A-frame base for structural rigidity
• In-line electroless nickel-plated steel full-flow NPT swivel allows seal service without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges protect hose and improve operator safety
• Permanently lubricated horizontal surface mount bearings for smooth, low-effort rotation
• Chip-resistant, rust-inhibiting CPC powder coat finish for long service life in harsh environments

Compatibility

Designed as an OEM-style fit within the COXREELS 1185 Series for applications requiring 1.5-inch ID hose up to 175 feet in length with electric motor-driven retrieval.

Installation Notes

Installation is typically performed by licensed mechanical or industrial service technicians. Shut off all fluid supply and de-energize the 24-volt DC power circuit before mounting or servicing the reel. Secure the reel to a structurally adequate surface using the integrated base mounting pattern and fasteners rated for the 180-pound assembled weight. Consult applicable local codes and the manufacturer documentation for electrical connection requirements before commissioning the motor.

Technical Specifications

• Hose ID: 1.5 inches
• Hose OD: 2.0625 inches
• Hose Length Capacity: 175 feet
• Motor Voltage: 24 volts DC
• Motor Output: 1/3 HP reversible
• Frame Material: 12-gauge steel, CNC robotically welded
• Finish: CPC powder coat
• Length: 49 inches
• Width: 28 inches
• Height: 28 inches
• Weight: 180 pounds
• UPC: 674255838192

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-3324-EB
