Coxreels 1185-3324-E Hose Reel 1.5 in Id 175 Ft Motor Driven

Product Description

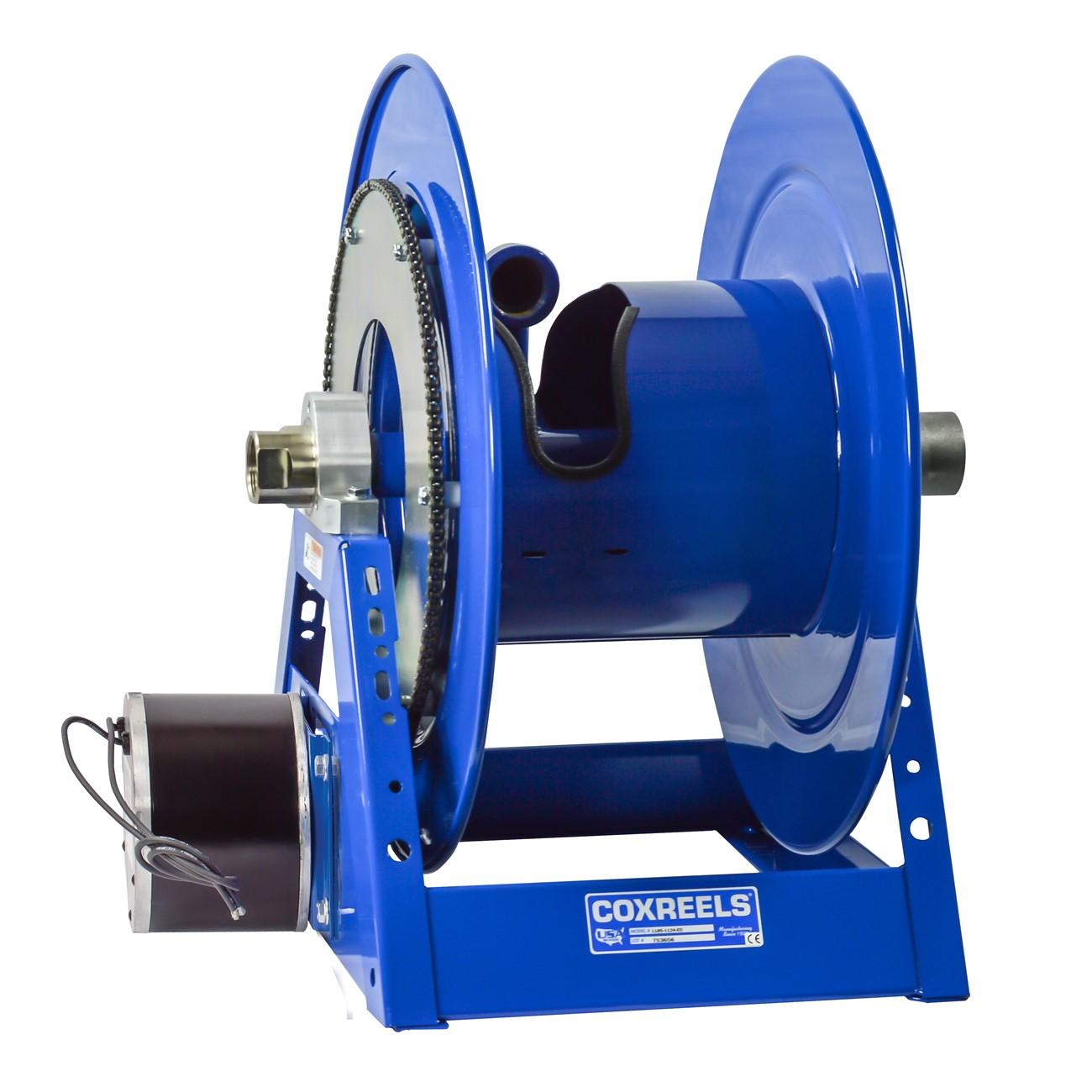

The COXREELS 1185-3324-E is a motor-driven hose reel from the 1185 Series, built for high-volume fluid delivery applications requiring long runs of large-diameter hose. It accepts hose with a 1.5-inch inner diameter and a 2.0625-inch outer diameter, with a maximum hose length of 175 feet. The unit is powered by a 12-volt DC, 1/3 HP reversible motor and ships fully assembled at 167 pounds. An electroless nickel-plated steel full-flow NPT swivel, CNC-spun ribbed discs, and an all-welded steel A-frame base distinguish this reel from lighter-duty alternatives. Licensed HVAC, plumbing, and industrial service technicians are the primary installers.

The 1185-3324-E is suited for commercial and industrial service applications where large-diameter, high-volume hose delivery is required. Its open drum slot design and low-profile outlet riser allow the hose to lay flat without crimping, making it practical for mobile service vehicles, fleet maintenance bays, and fixed service bays handling extended hose runs. The unit mounts via a pattern built into the steel base, supporting both permanent and detachable installation configurations. Hand-crank operation is also supported in addition to motor drive.

Key Features

• 12V DC reversible motor with 1/3 HP output for powered hose retraction and extension
• Electroless nickel-plated steel full-flow NPT in-line swivel allows seal maintenance and hose installation without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Exclusive low-profile outlet riser and open drum slot design delivers a non-crimping, flat hose wrap
• One-piece all-welded 12-gauge steel A-frame base for superior structural integrity in demanding mobile and fixed applications
• CPC powder coat finish provides chip resistance and rust inhibition for extended service life

Compatibility

Designed as an OEM-style replacement or direct application fit within the COXREELS 1185 Series for large-diameter hose reel installations requiring a 1.5-inch ID hose connection and up to 175 feet of hose capacity.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid handling equipment and low-voltage DC wiring. Disconnect all power sources and depressurize the hose system completely before servicing or mounting the reel. Secure the reel to a structurally adequate surface using the mounting pattern built into the base. DC motor wiring should comply with applicable electrical codes and the vehicle or facility electrical system specifications.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Maximum Hose Length: 175 feet
• Motor Voltage: 12 volts DC
• Motor Output: 1/3 HP
• Unit Weight: 167 pounds
• Length: 49 inches
• Width: 28 inches
• Height: 28 inches
• Frame Material: 12-gauge welded steel
• Finish: CPC powder coat
• Swivel Material: Electroless nickel-plated steel
• UPC: 674255833845

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-3324-E
