Coxreels 1185-3324-C Hose Reel 1.5 in Id 175 Ft

Product Description

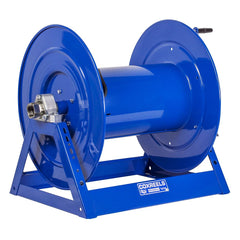

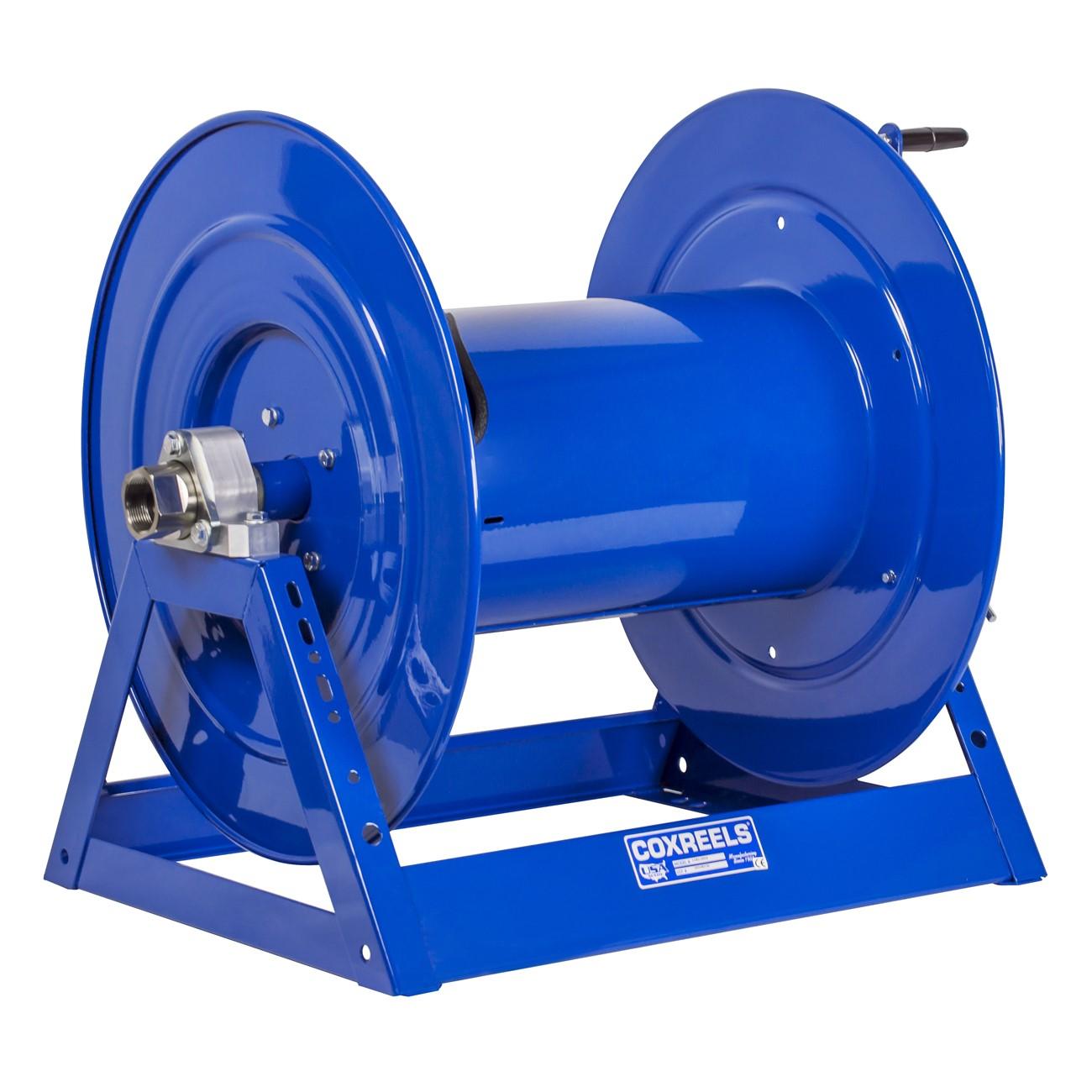

The COXREELS 1185-3324-C is a heavy-duty hose reel from the 1185 Series, designed for hand crank and motor-driven operation with long lengths of large-diameter hose. It features a 1.5-inch inner diameter and 2.0625-inch outer diameter hose path, with a capacity of 175 feet. The all-welded steel A-frame base and CNC robotically spun ribbed discs make it well-suited for high-volume fluid delivery tasks in demanding environments. Licensed HVAC, plumbing, and industrial service technicians install this reel in both stationary and mobile applications where hose management at scale is required.

The 1185-3324-C is built for applications that demand high flow volume and extended hose runs. Its open drum design and low-profile outlet riser ensure a flat, non-crimping hose wrap, reducing wear on large-diameter hose over repeated cycles. The front bevel-geared crank provides mechanical advantage for manual retraction, and the unit is appropriate for mobile service rigs, fleet maintenance bays, industrial wash-down stations, and similar heavy-use environments where hose capacity and frame rigidity are priorities.

Key Features

• In-line electroless nickel plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges provide strength, durability, and hose protection
• Exclusive low-profile outlet riser and open drum slot design delivers a non-crimping, flat smooth hose wrap
• One-piece all-welded 12-gauge steel A-frame base with integrated mounting pattern for easy installation and removal
• Permanently lubricated horizontal surface-mount bearings for smooth, consistent rotation
• CPC powder coat finish resists chips and rust; long-handled locking pin secures reel position; front bevel-geared crank assists mechanical retraction

Compatibility

Designed as an OEM-style replacement and standard fitment within the COXREELS 1185 Series for large-diameter, high-volume hose reel applications.

Installation Notes

Installation is typically performed by qualified plumbing, industrial, or mechanical service technicians. Power down or depressurize the connected fluid system completely before mounting or servicing the reel. The integrated base mounting pattern accommodates direct bolting to a surface or mobile platform. Verify that the mounting surface can support the loaded reel weight before securing.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Length Capacity: 175 feet
• Frame Material: 12-gauge welded steel
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 49 inches
• Width: 28 inches
• Height: 28 inches
• Weight: 157 pounds
• UPC: 674255844674

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-3324-C
