Coxreels 1185-3324-AB Hose Reel 1-1/2 in Id 175 Ft

Product Description

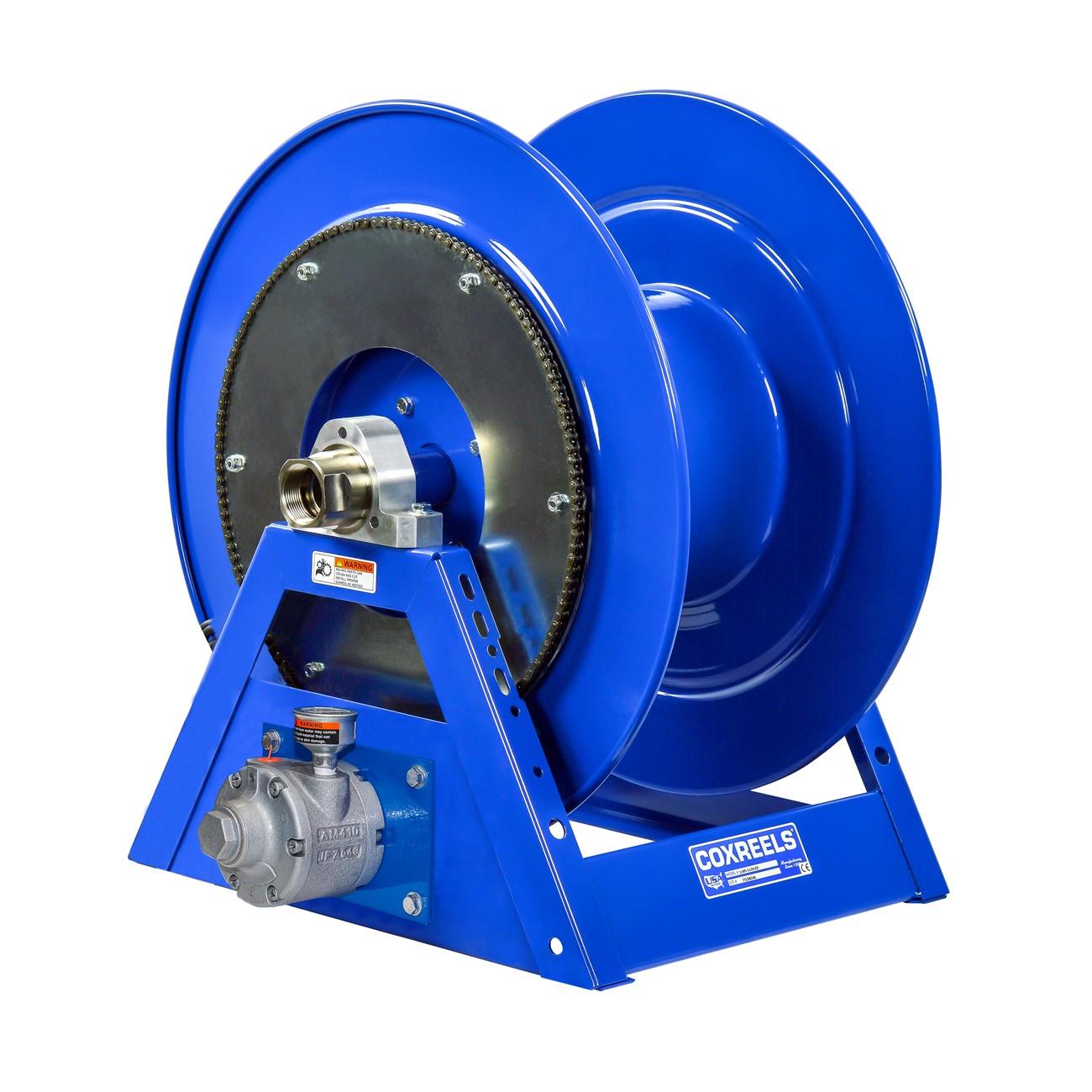

The COXREELS 1185-3324-AB is a heavy-duty hand crank and motor driven hose reel from the 1185 Series, engineered to manage long lengths of large-diameter hose where high-volume fluid delivery is required. The reel features an all-welded steel A-frame base, an exclusive low-profile outlet riser, and an open drum slot design that keeps hose wraps flat and crimp-free during deployment and retrieval. An in-line electroless nickel plated steel full-flow NPT swivel allows seal maintenance without removing the reel from its mount. At 162 pounds and measuring 49 inches long by 28 inches wide by 28 inches tall, this is a substantial unit built for demanding fixed or mobile installations. Licensed trades handling high-flow water, chemical transfer, or industrial fluid applications are the primary installers.

The 1185-3324-AB is suited for applications that demand extended hose runs with large inside-diameter hose, typically 1-1/2 inch ID. Typical install scenarios include industrial facilities, municipal service vehicles, fire suppression support, bulk fluid transfer stations, and heavy mobile service rigs where standard compact reels cannot handle the hose volume or weight. The open drum design accommodates up to 175 feet of hose without restricting flow or causing hose fatigue at the drum interface. Both hand crank and motor drive configurations are supported by the 1185 Series platform, making the reel adaptable to manual or powered retrieval workflows.

Key Features

• Low-profile outlet riser and open drum slot deliver a non-crimping, flat smooth hose wrap across the full 175-foot capacity
• All-CNC robotically welded 12-gauge steel A-frame base — one piece, not bolted — provides superior structural rigidity under heavy hose loads
• In-line electroless nickel plated steel full-flow NPT swivel allows fast seal service and hose installation without dismounting the reel
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, hose protection, and operator safety
• Permanently lubricated horizontal surface-mount bearings for smooth, low-effort rotation even under full hose load
• CPC powder coat finish is chip resistant and rust inhibiting for long service life in outdoor or corrosive environments

Compatibility

Designed for use with 1-1/2 inch ID, 2-1/16 inch OD hose up to 175 feet in length. Compatible with hand crank and motor driven drive configurations within the COXREELS 1185 Series platform.

Installation Notes

Installation is typically performed by qualified industrial mechanics or licensed tradespeople familiar with high-volume fluid handling systems. Shut down all fluid supply and relieve system pressure completely before mounting or servicing the reel. Secure the A-frame base to a structurally adequate surface using the mounting pattern built into the steel base; verify that the mounting substrate can support the combined weight of the reel and a fully loaded 175-foot hose run. Where motor drive options are used, electrical connections must comply with applicable NEC requirements and be performed by a qualified electrician.

Technical Specifications

• Hose Inside Diameter: 1-1/2 inches
• Hose Outside Diameter: 2-1/16 inches
• Hose Capacity: 175 ft
• Frame Material: 12-gauge steel, all-welded
• Swivel Material: Electroless nickel plated steel
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Drive Type: Hand crank and motor driven
• Length: 49 inches
• Width: 28 inches
• Height: 28 inches
• Weight: 162 pounds
• UPC: 674255833814

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-3324-AB
