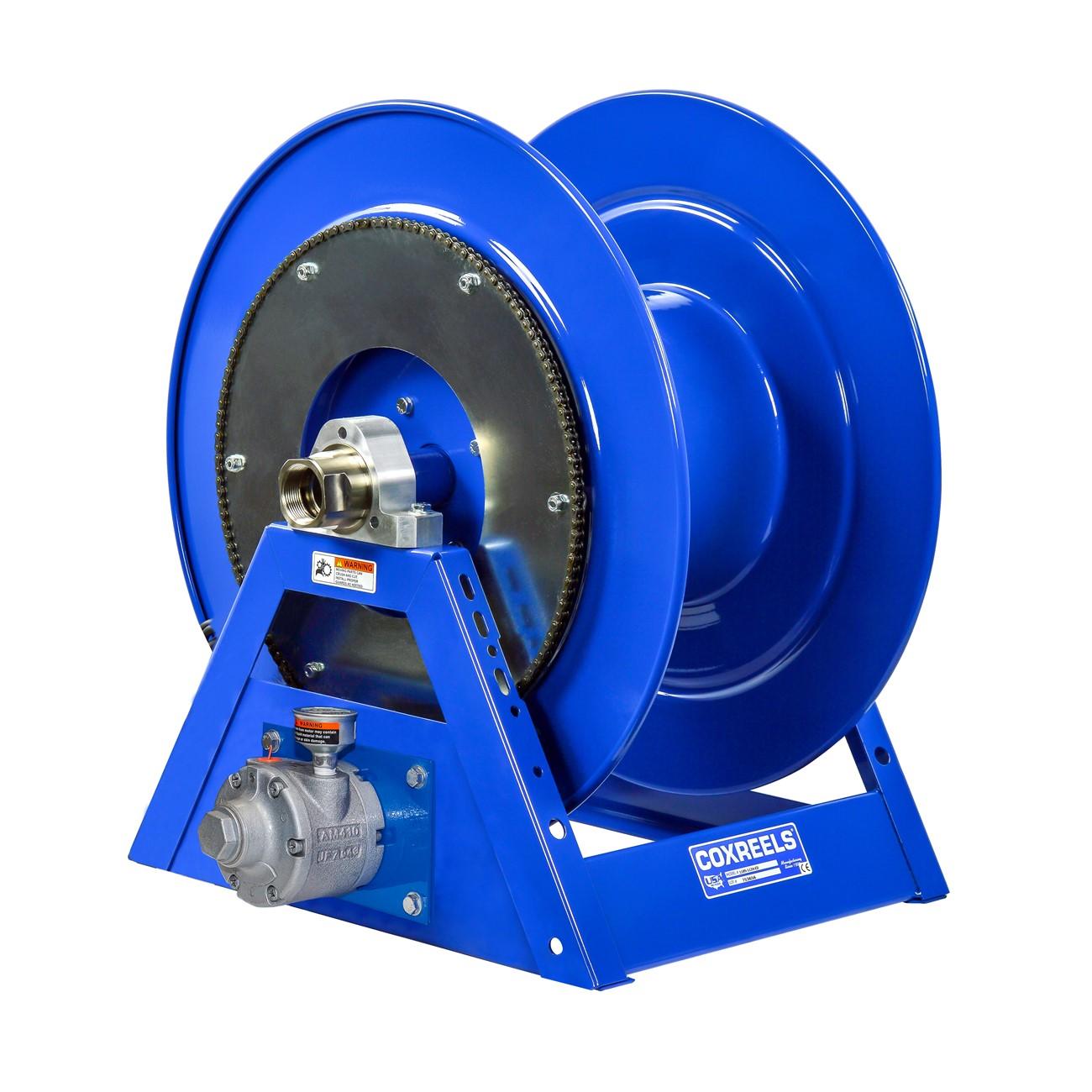

Coxreels 1185-3324-A Hose Reel 1.5 Inch Id 175 Ft

Product Description

The COXREELS 1185-3324-A is a large-diameter industrial hose reel from the 1185 Series, designed for high-volume fluid delivery in demanding service environments. It accommodates hose with a 1.5-inch inner diameter and 2.0625-inch outer diameter at a working length of 175 feet. The reel is available in hand crank and motor-driven configurations, making it suitable for both stationary installations and mobile applications where extra weight capacity is required. A CPC powder coat finish provides long-term chip resistance and rust inhibition. The all-welded steel frame handles the load without sacrificing structural integrity across extended duty cycles.

The 1185-3324-A is suited for industrial, municipal, and fleet applications requiring long hose runs and high flow rates. The open drum design and low-profile outlet riser allow the hose to lay flat during winding, reducing kinking and wear. The unit weighs 162 pounds and measures 49 inches long by 28 inches wide by 28 inches tall, making it appropriate for truck-mounted, skid-mounted, or fixed-bay installations where a robust, high-capacity reel is needed.

Key Features

• Electroless nickel-plated steel in-line NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• CNC robotically spun and ribbed steel discs with rolled edges for enhanced strength, hose protection, and operator safety
• Exclusive low-profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap
• One-piece CNC robotically welded 12-gauge steel A-frame base with integrated mounting pattern for secure installation and easy removal
• Permanently lubricated horizontal surface-mount bearings for smooth, low-effort rotation
• CPC powder coat finish resists chipping, rust, and long-term wear in field conditions

Compatibility

Designed for use with large-diameter hose in industrial fluid-transfer applications; compatible hose and system specifications should be confirmed against the 1185 Series product documentation before installation.

Installation Notes

Installation should be performed by qualified personnel familiar with industrial hose reel systems and applicable site safety requirements. Secure all fluid supply lines and depressurize the system before mounting or servicing the reel. The integrated base mounting pattern accepts standard fasteners; verify substrate load capacity before mounting given the 162-pound unit weight. Motor-driven configurations require electrical connection by a licensed technician in accordance with applicable local codes.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Length: 175 feet
• Unit Weight: 162 pounds
• Length: 49 inches
• Width: 28 inches
• Height: 28 inches
• Frame Material: 12-gauge welded steel
• Finish: CPC powder coat
• Swivel Material: Electroless nickel-plated steel
• UPC: 674255836440

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-3324-A
