Coxreels 1185-2528 Hose Reel 1.5 in Id 150 Ft Large Diameter

Product Description

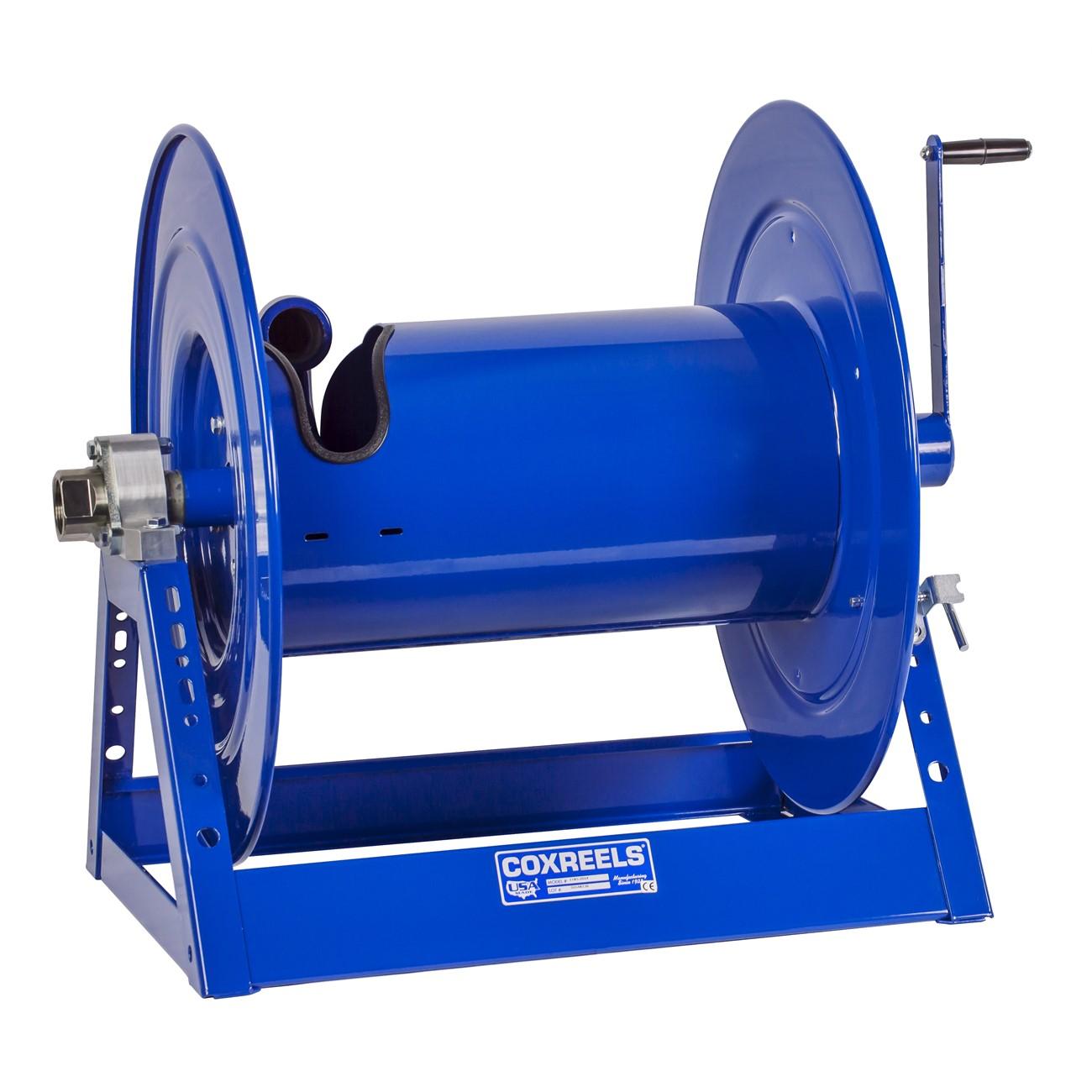

The COXREELS 1185-2528 is a heavy-duty hand crank and motor-driven hose reel engineered for high-volume fluid delivery applications requiring long runs of large-diameter hose. Built around a 1.5-inch inner diameter and 2.0625-inch outer diameter hose path with a 150-foot capacity, it handles the weight and bulk of large hose without sacrificing smooth operation. The all-welded 12-gauge steel A-frame base provides structural rigidity suited for demanding stationary and mobile installations. Licensed trades including industrial maintenance technicians, irrigation contractors, and fluid transfer specialists rely on this reel for consistent, repeatable hose management in high-cycle service environments.

The 1185-2528 is intended for industrial and commercial applications where large-diameter hose must be deployed and retracted repeatedly under load. Its open drum slot design and low-profile outlet riser prevent hose crimping and promote a flat, smooth wrap across the drum face. The direct hand crank mechanism provides reliable mechanical retraction without dependence on a power source, making it viable in mobile equipment, service trucks, wash-down stations, bulk fluid transfer bays, and similar fixed or portable installations where hose lengths up to 150 feet are standard.

Key Features

• In-line electroless nickel-plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for increased strength, hose protection, and operator safety
• Exclusive low-profile outlet riser and open drum slot design deliver a non-crimping, flat smooth hose wrap
• One-piece all-CNC robotically welded 12-gauge steel A-frame base with integrated mounting pattern for easy installation and detachment
• Permanently lubricated horizontal surface-mount bearings for low-effort rotation over the service life of the reel
• CPC powder coat finish resists chips and rust; long-handled locking pin secures reel position; direct hand crank enables mechanical retraction

Compatibility

Designed as an OEM-style fit within the COXREELS 1185 Series for large-diameter hose management applications requiring a 1.5-inch ID hose path and up to 150 feet of hose capacity.

Installation Notes

Installation should be performed by qualified maintenance or mechanical contractors familiar with large-format hose reel mounting requirements. Depressurize and disconnect all fluid supply lines before mounting or servicing the reel. The integrated base mounting pattern accommodates direct fastening to a flat surface; confirm the mounting substrate is rated to support the combined weight of the reel and a fully loaded 150-foot hose. Follow all applicable facility safety codes and equipment manufacturer guidelines when connecting supply-side plumbing to the swivel inlet.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Capacity: 150 feet
• Frame Material: 12-gauge welded steel
• Length: 37.5 inches
• Width: 32 inches
• Height: 34 inches
• Weight: 122 pounds
• UPC: 674255833609

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-2528
