Coxreels 1185-2528-E Hose Reel 1.5 in Id 150 Ft Motor

Product Description

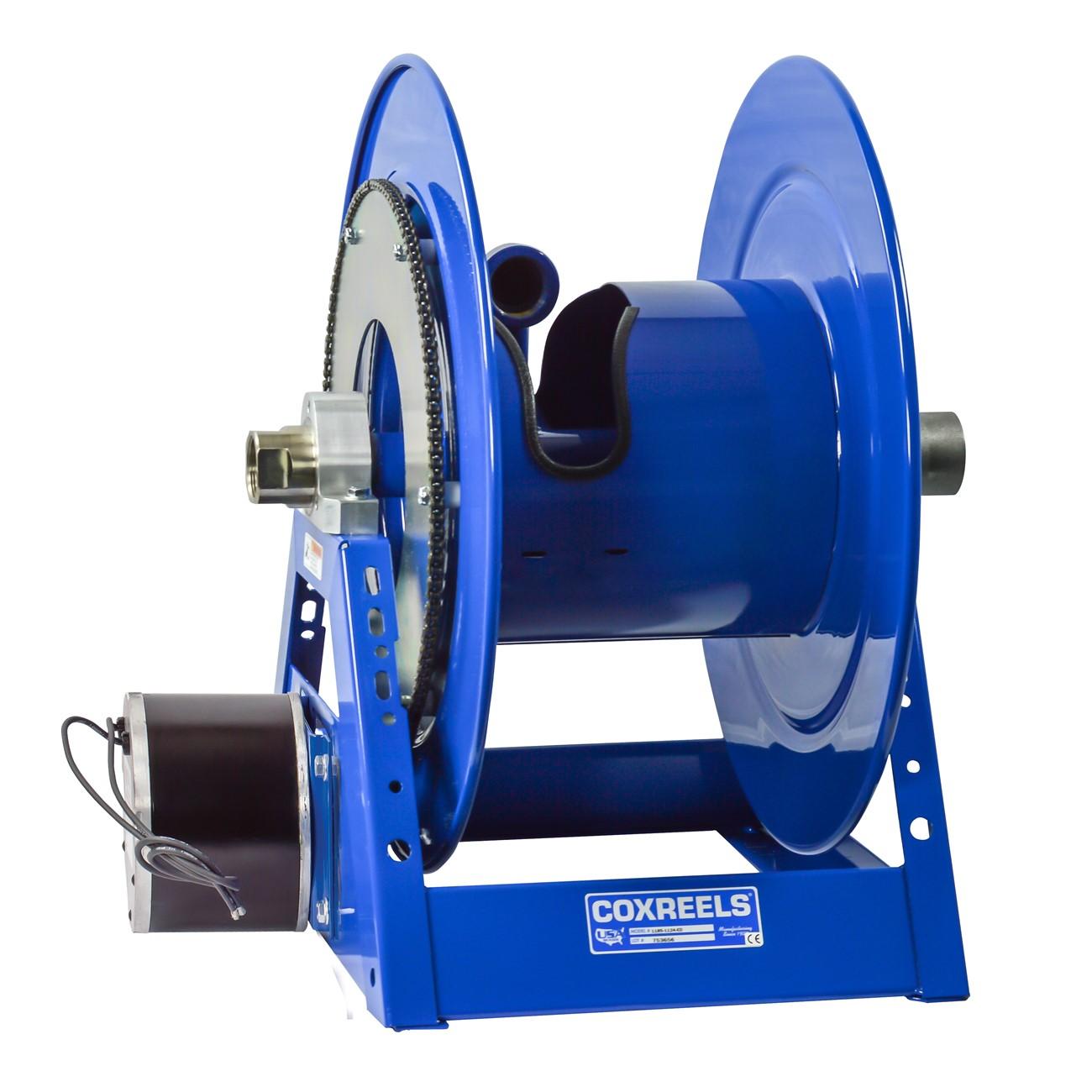

The COXREELS 1185-2528-E is a heavy-duty, motor-driven hose reel built for high-volume fluid delivery applications requiring long hose runs at large diameters. It accepts hose with a 1.5-inch inner diameter and a 2.0625-inch outer diameter and handles up to 150 feet of hose. Power comes from a 12-volt DC, 1/3 HP reversible motor for consistent, controlled retrieval. The all-welded steel A-frame base, CNC-spun ribbed discs, and low-profile outlet riser work together to prevent hose crimping and ensure a flat, even wrap under load. At 135 pounds, this reel is engineered for demanding environments where structural rigidity and reliable hose management are non-negotiable. Licensed contractors and industrial service technicians are the primary installers.

The 1185-2528-E is suited for applications that demand large-diameter hose at extended lengths, including water transfer, industrial fluid delivery, and mobile service operations. Its open drum design and low-profile outlet riser make it well adapted to truck or trailer mounting where space is constrained and hose integrity must be maintained throughout the full extension and retraction cycle. The mounting pattern is built into the steel base, simplifying installation and removal in mobile setups.

Key Features

• 12V DC, 1/3 HP reversible electric motor for powered hose retrieval and deployment
• Exclusive low-profile outlet riser and open drum slot design prevents hose crimping and promotes a flat, smooth wrap
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• One-piece all-welded 12-gauge steel A-frame base — not bolted — for superior structural integrity
• In-line electroless nickel-plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Permanently lubricated horizontal surface-mount bearings and CPC powder coat finish for long service life

Compatibility

Designed for use with hose having a 1.5-inch inner diameter and up to 2.0625-inch outer diameter at lengths up to 150 feet. Part of the COXREELS 1185 Series of hand crank and motor-driven large-diameter hose reels.

Installation Notes

Installation is typically performed by industrial mechanics or mobile service technicians. Disconnect and secure all power sources before servicing the motor or electrical connections, and follow applicable NEC guidelines for 12-volt DC wiring in mobile or vehicle-mounted applications. The base mounting pattern should be aligned to a structurally sound surface capable of supporting the reel weight plus hose load. Do not exceed the rated hose diameter or length to avoid stressing the drum and frame assembly.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Length Capacity: 150 feet
• Motor: 12V DC, 1/3 HP reversible electric
• Frame Material: 12-gauge welded steel
• Finish: CPC powder coat
• Weight: 135 pounds
• Length: 49 inches
• Width: 42 inches
• Height: 34 inches
• UPC: 674255833920

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-2528-E
