Coxreels 1185-2528-E-BUXX Hose Reel 1-1/2 Inch Id

Product Description

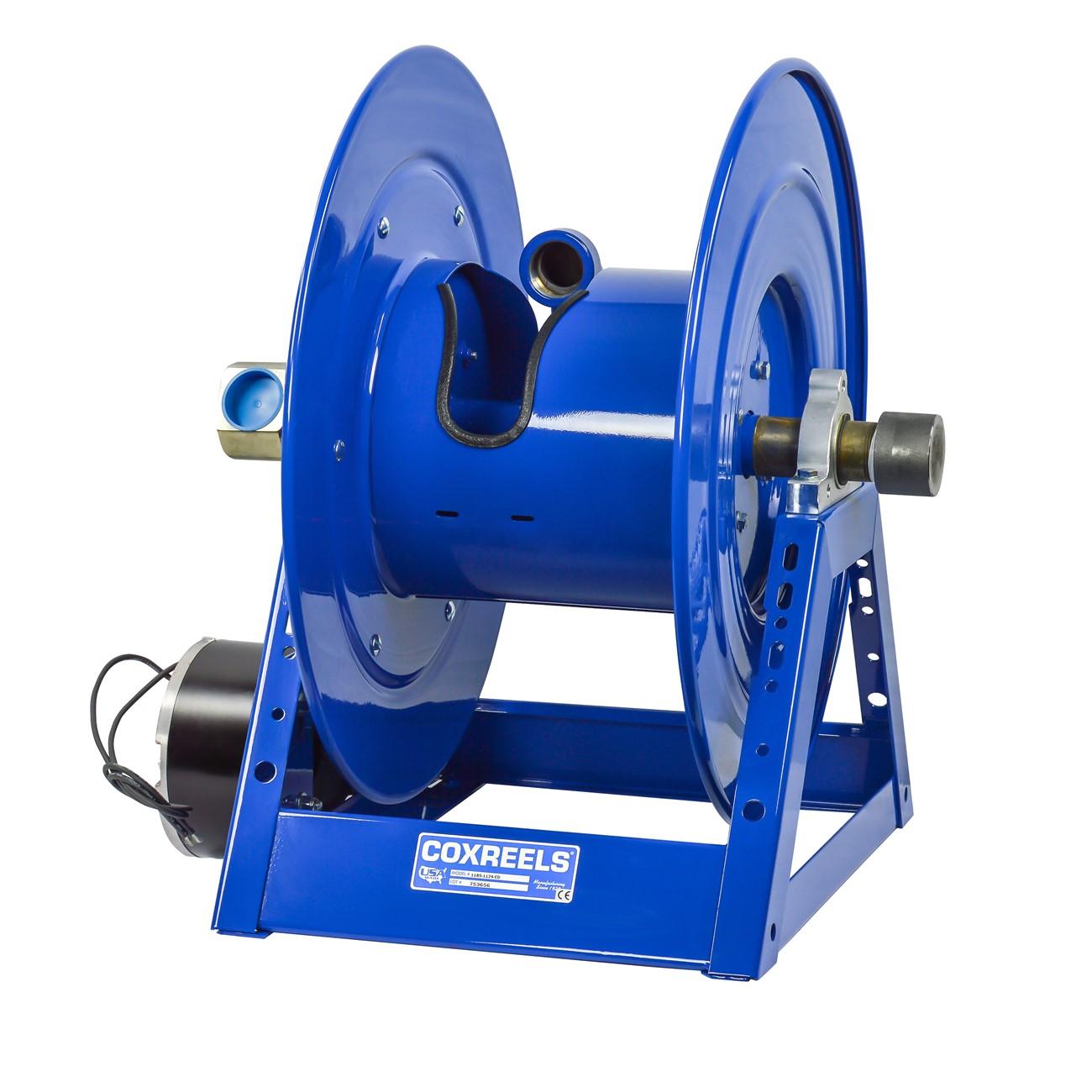

The COXREELS 1185-2528-E-BUXX is a heavy-duty motor-driven hose reel from the 1185 Series, engineered for high-volume delivery applications requiring long lengths of large-diameter hose. Powered by a 12V DC, 1/3 HP reversible motor, this reel handles the extra weight of large hose runs without sacrificing performance. The exclusive low-profile outlet riser and open drum slot design promote a non-crimping, flat smooth hose wrap, protecting hose integrity over repeated use. Weighing 135 pounds, the unit is built for demanding environments including mobile applications. Licensed HVAC, plumbing, and industrial service technicians working with bulk hose delivery rely on this class of reel for field-ready durability.

The 1185-2528-E-BUXX is suited for residential and commercial service applications where high-flow hose management is required. The 1-1/2 inch ID, 2-1/16 inch OD hose capacity supports increased volume delivery in scenarios such as water transfer, chemical delivery, or large-bore fluid service. The unit is compatible with mobile installation platforms and fixed mount setups, making it appropriate for service trucks, shop environments, and stationary industrial stations. Its mounting pattern is located in the steel base for straightforward reel installation and detachment in the field.

Key Features

• 12V DC, 1/3 HP reversible motor for powered hose retrieve and deploy
• Electroless nickel-plated steel 90-degree full-flow NPT swivel with ball bearings for fast hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, hose protection, and operator safety
• One-piece all CNC robotically welded 12-gauge steel A-frame base for superior reel structure — not bolted
• Permanently lubricated horizontal surface mount bearings for smooth, easy rotation
• CPC powder coat finish — chip resistant and rust inhibiting for long service life

Compatibility

Designed as an OEM-style fit within the COXREELS 1185 Series platform, accommodating 1-1/2 inch ID hose in large-diameter, high-volume delivery configurations for mobile and stationary service applications.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid delivery systems and 12V DC electrical connections. Disconnect all power sources before making electrical connections to the motor drive. Secure the reel using the mounting pattern in the steel base and verify all hose fittings are properly torqued to the NPT swivel before pressurizing the system. Follow applicable local codes and manufacturer guidelines for mobile vehicle mounting applications.

Technical Specifications

• Hose ID: 1-1/2 inches
• Hose OD: 2-1/16 inches
• Motor: 12V DC, 1/3 HP reversible
• Frame Material: 12-gauge welded steel
• Finish: CPC powder coat
• Length: 49 inches
• Width: 42 inches
• Height: 34 inches
• Weight: 135 pounds
• UPC: 674255849419

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-2528-E-BUXX
