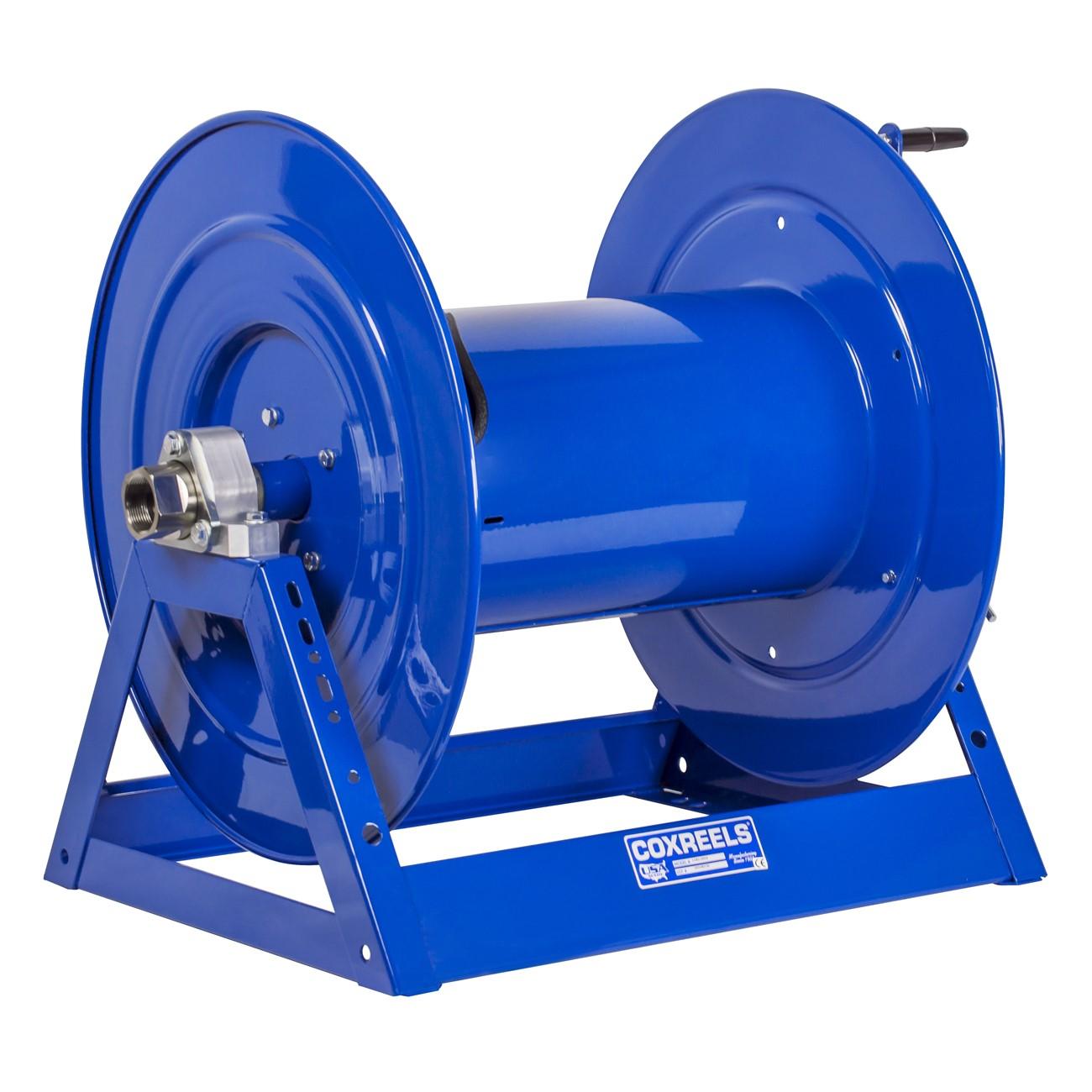

Coxreels 1185-2528-C Hose Reel 1-1/2 in Id 150 Ft

Product Description

The COXREELS 1185-2528-C is a heavy-duty hand crank and motor-driven hose reel engineered for high-volume fluid delivery applications requiring long runs of large-diameter hose. Built on the 1185 Series platform, it features a 1-1/2 inch inner diameter hose capacity and accommodates up to 150 feet of hose. The all-welded 12-gauge steel A-frame base provides the structural rigidity needed to support the added weight of large-bore hose without flex or fatigue. An exclusive low-profile outlet riser and open drum slot design ensure a non-crimping, flat hose wrap that protects hose integrity over repeated use cycles. Licensed HVAC, plumbing, and industrial service technicians working in demanding environments rely on this unit for consistent, high-flow performance.

This hose reel is suited for industrial, commercial, and mobile service applications where large-diameter hose must be deployed and retracted efficiently. Typical use cases include high-volume water transfer, industrial fluid dispensing, and heavy-duty wash-down systems. The open drum design and front bevel-geared crank make it practical for both fixed installations and mobile service rigs where repeated daily use is expected. Its mounting pattern is integrated into the steel base, simplifying installation and removal in the field.

Key Features

• In-line electroless nickel-plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for greater strength, hose protection, and operator safety
• Exclusive low-profile outlet riser and open drum slot design delivers a non-crimping, flat smooth hose wrap
• One-piece all-welded 12-gauge steel A-frame base provides superior structural integrity over bolted designs
• Permanently lubricated horizontal surface-mount bearings for smooth, low-effort rotation
• CPC powder coat finish resists chipping and rust for long service life in harsh environments
• Front bevel-geared crank with long-handled locking pin for easy mechanical retraction and secure reel positioning

Compatibility

Designed for use with large-diameter hose assemblies requiring a 1-1/2 inch inner diameter connection, typical of high-volume industrial fluid transfer and wash-down service applications.

Installation Notes

Installation should be performed by a qualified technician familiar with high-volume fluid handling systems. Shut off fluid supply and depressurize the hose assembly completely before mounting or servicing the reel. The integrated base mounting pattern accepts standard fastener layouts for fixed surface or mobile vehicle mounting. Verify that the hose end connections and swivel fittings are properly torqued and leak-tested before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1-1/2 inches
• Hose Outer Diameter: 2-1/16 inches
• Hose Capacity: 150 feet
• Frame Material: 12-gauge steel, all-welded
• Swivel Material: Electroless nickel-plated steel
• Finish: CPC powder coat
• Length: 37.5 inches
• Width: 32 inches
• Height: 34 inches
• Weight: 125 pounds
• UPC: 674255841130

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-2528-C
