Coxreels 1185-2528-AB Hose Reel 1.5 in Id 150 Ft

Product Description

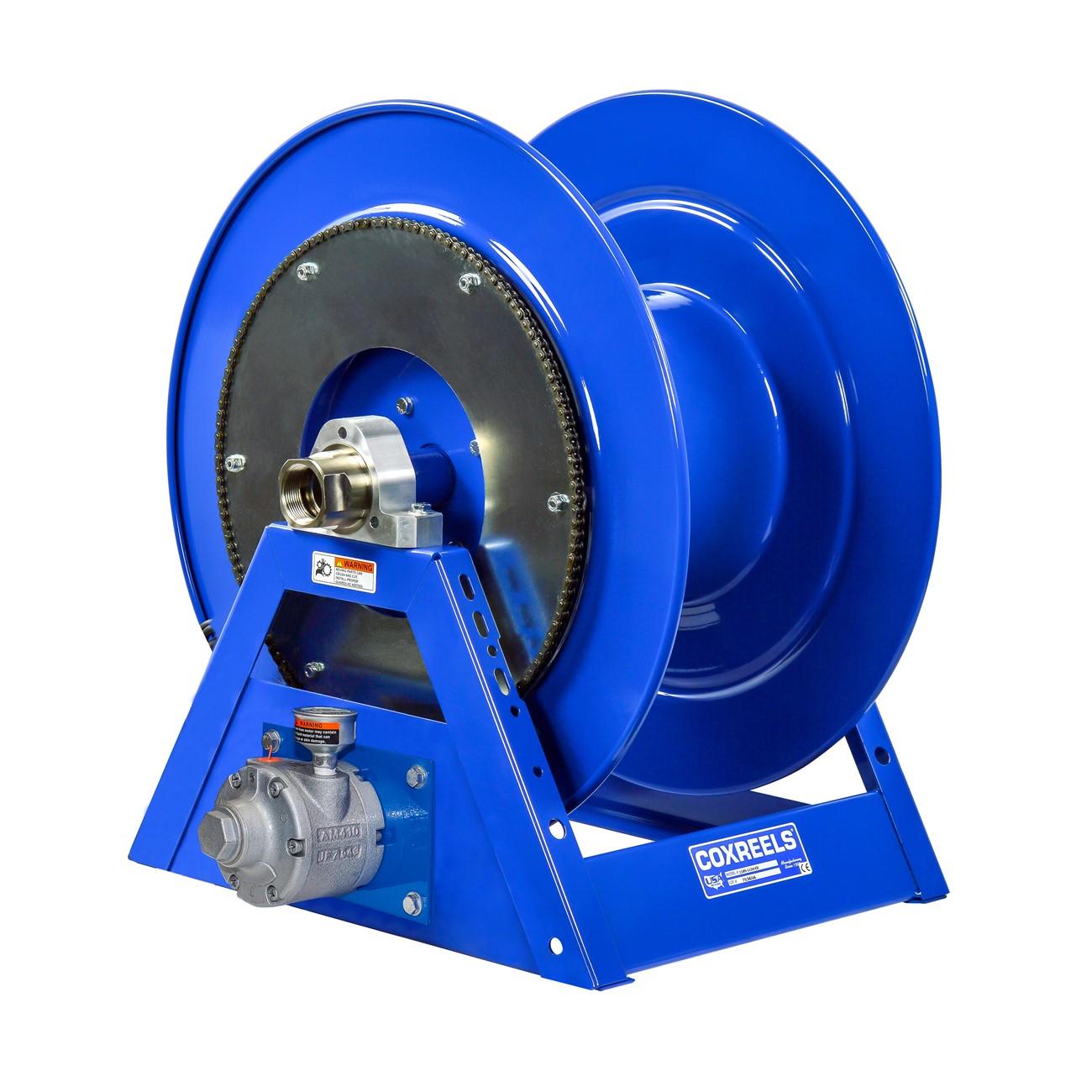

The COXREELS 1185-2528-AB is a heavy-duty hand crank and motor driven hose reel engineered for long runs of large-diameter hose where high-volume fluid delivery is required. Built on an all-welded 12-gauge steel A-frame base, this reel handles the extra load of extended hose lengths without flexing or losing structural integrity. The 1.5-inch ID, 2.0625-inch OD hose path and open drum slot design produce a non-crimping, flat hose wrap, protecting hose integrity across repeated wind and unwind cycles. At 130 pounds, this is a substantial industrial unit suited for demanding fixed or mobile installations. Licensed trades including plumbers, fire suppression contractors, and industrial maintenance crews are the primary installers.

The 1185-2528-AB is built for applications requiring extended hose capacity up to 150 feet of large-diameter hose. Its open drum and low-profile outlet riser design make it well suited for high-volume water, air, or compatible fluid delivery in commercial, industrial, and mobile service environments. The aluminum-body, 6-vane air motor option supports motor-driven retraction where manual crank operation is impractical. The mounting pattern is integrated into the steel base, allowing straightforward installation and detachment in mobile rigs, service trucks, or fixed station setups.

Key Features

• All-welded 12-gauge steel A-frame base provides rigid, bolt-free structural support for heavy hose loads
• In-line electroless nickel plated steel full-flow NPT swivel allows seal maintenance and hose connection without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges improve strength, hose protection, and operator safety
• Exclusive low-profile outlet riser and open drum slot eliminate hose crimping and promote flat, even wrap
• Permanently lubricated horizontal surface mount bearings support smooth, low-effort rotation
• CPC powder coat finish resists chips and rust for extended service life in harsh environments
• Aluminum-body 6-vane air motor included for motor-driven operation

Compatibility

Designed for use with 1.5-inch ID large-diameter hose up to 150 feet in length; part of the COXREELS 1185 Series platform designed for high-volume hose reel applications in commercial and industrial settings.

Installation Notes

Installation should be performed by a qualified trades professional familiar with industrial hose reel mounting and applicable fluid system codes. Shut off and depressurize all fluid supply lines before connecting or disconnecting hose or swivel fittings. Secure the reel to the mounting surface using the integrated base mounting pattern and fasteners rated for the combined weight of the reel and filled hose. When connecting the air motor supply, ensure the air line pressure is within the motor manufacturer's specified operating range before energizing.

Technical Specifications

• Hose ID: 1.5 inches
• Hose OD: 2.0625 inches
• Hose Capacity: 150 feet
• Drive Type: Hand crank and air motor driven
• Motor Body: Aluminum, 6-vane
• Frame Material: 12-gauge steel, all-welded
• Swivel Finish: Electroless nickel plated steel
• Finish: CPC powder coat
• Length: 49 inches
• Width: 42 inches
• Height: 34 inches
• Weight: 130 pounds
• UPC: 674255833890

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-2528-AB
