Coxreels 1185-2528-A Hose Reel 1.5 in Id 150 Ft

Product Description

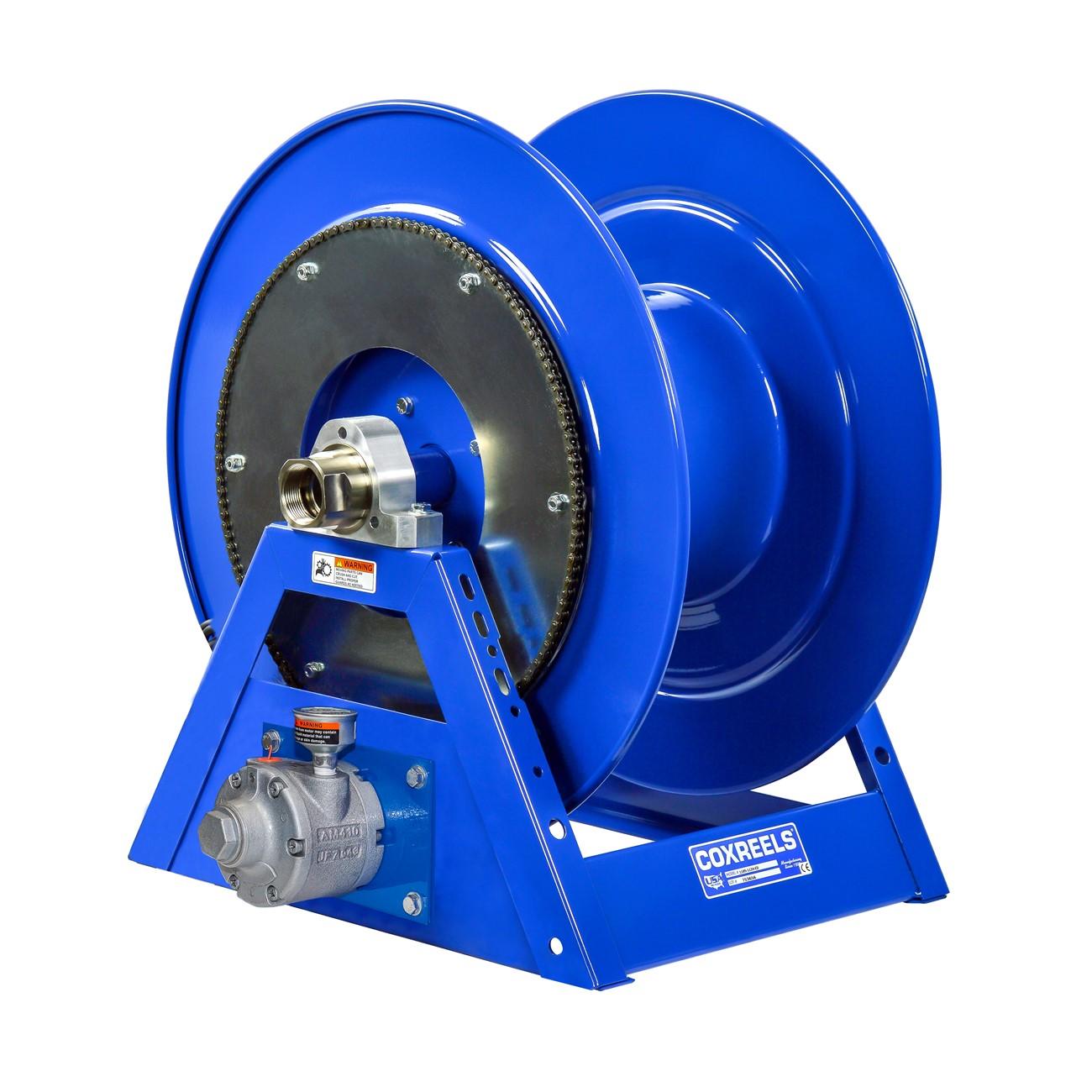

The COXREELS 1185-2528-A is a heavy-duty hand crank and motor driven hose reel built for high-volume fluid delivery applications requiring long lengths of large-diameter hose. It features a 1.5-inch inner diameter hose inlet and accommodates up to 150 feet of hose, making it well suited for demanding industrial, commercial, and mobile service operations. The reel ships at 130 pounds and measures 49 inches long by 42 inches wide by 34 inches tall. An all-welded A-frame base and CNC robotically spun discs with rolled edges provide structural rigidity without the weak points of bolted assemblies. A chip-resistant CPC powder coat finish protects against rust and wear in harsh field conditions.

This reel is intended for use in applications that demand extended hose runs and elevated flow volumes, including mobile service trucks, industrial facilities, and fleet maintenance bays. The open drum design and exclusive low-profile outlet riser produce a non-crimping, flat hose wrap that protects hose integrity across repeated use cycles. An aluminum body air motor with a 4-vane design drives the reel in motor-driven configurations. Licensed mechanics, service technicians, and industrial maintenance crews are the primary installers and operators of this unit.

Key Features

• In-line electroless nickel plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for increased strength, hose protection, and operator safety
• Exclusive low-profile outlet riser and open drum slot design deliver a non-crimping, flat smooth hose wrap
• One-piece all-welded 12-gauge steel A-frame base provides superior structural integrity compared to bolted frames
• Permanently lubricated horizontal surface mount bearings enable smooth, low-effort rotation
• CPC powder coat finish resists chipping and rust for extended service life in mobile and fixed installations

Compatibility

Designed as an OEM-style replacement or direct-fit unit within the COXREELS 1185 Series, compatible with large-diameter hose configurations requiring a 1.5-inch ID inlet in hand crank or motor driven reel setups.

Installation Notes

Installation should be performed by qualified service technicians familiar with large-capacity hose reel mounting requirements. Shut off all fluid supply lines and depressurize the hose assembly completely before connecting or disconnecting the reel. Secure the unit to a structurally adequate surface using the mounting pattern located in the steel base. For motor-driven configurations, verify that the air supply meets the motor requirements before commissioning the reel.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Outer Diameter: 2.0625 inches
• Hose Capacity: 150 feet
• Drive Type: Hand Crank and Motor Driven
• Motor Type: Aluminum Body Air Motor, 4-Vane
• Frame Material: 12-Gauge Welded Steel
• Finish: CPC Powder Coat
• Swivel Material: Electroless Nickel Plated Steel
• Weight: 130 pounds
• Length: 49 inches
• Width: 42 inches
• Height: 34 inches
• UPC: 674255836433

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1185-2528-A
